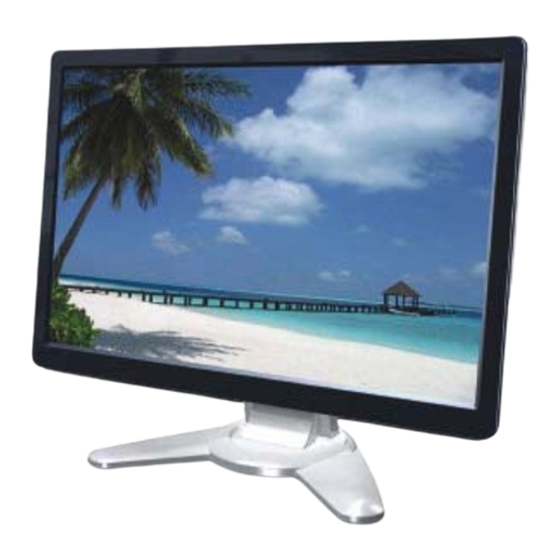

Summary of Contents for MegaVision MV192SN
-
Page 2: Table Of Contents
Table of Contents Please read the cautions carefully before using this product Product features Installation of the product Names and operation of control buttons Cable Connection Selection and operation of the OSD menu MENU Function Explanation of message for utilization Timing guide Product specifications Troubleshooting... -
Page 3: Please Read The Cautions Carefully Before Using
Please read the cautions carefully before using this product Do not scratch the screen of the The interior part of the monitor is Take care of the LCD monitor LCD monitor with sharp materials composed of electric elements. If so that it is not damaged by the such as nails and pens. -
Page 4: This Product
Product features Introduction Thank you for buying our TFT LCD monitor. Our monitor is a high-resolution monitor that has features of electromagnetic wave blocking, reduction in electricity consumption, and efficient use of space. In view of the fact that this user's manual is prepared for helping you to adequately use the product, it is recommendable to read the user's manual before using the product. -
Page 5: Installation Of The Product
Installation of the product Checking the product Please check if the product contains the following items. If there are items missing, please contact the technical services. 1. TFT LCD monitor 2. User's manual (including product warranty). 3. AC to DC adapter. 4. - Page 6 Installation of the product Caution Adjusting LCD panel angle - Do not hold or press down on the monitor’s screen while adjusting angle since LCD panel maybe damaged or break if severe. - Do not lean backward excessively so that the monitor does not fall backwards.
-
Page 7: Names And Operation Of Control Buttons
Names and operation of control buttons Function of the buttons If you press the power button, the indicator lamp is turned on, and the operation of the monitor is initiated. If you do not want to start the operation of the monitor, press the power button again. Power indicator lamp (green) This product offers power-saving function. -
Page 8: Cable Connection
Cable Connection... -
Page 9: Selection And Operation Of The Osd Menu
Selection and operation of the OSD menu You can select the OSD menu in the OSD window using all the control buttons at the bottom of the screen. To change the current settings or adjust them for the desired settings, follow the following steps. MENU SELECT (Open menu... -
Page 10: Menu Function
MENU Function Picture Picture 1440 X 900 60.2Hz Brightness Contrast H Position V Position Phase Clock Auto Adjust Brightness: Adjusts brightness. 0 ~ 100 Contrast: Adjusts contrast. 0 ~ 100 Horizontal position: Adjusts the horizontal positionof the current screen. 0 ~ 100 Vertical position: Adjusts the vertical position of the current screen. - Page 11 MENU Function 1440 X 900 60.2Hz OSD H Posi OSD V Posi OSD Timer 10SEC Transparency 25 % OSD horizontal position: Adjusts the horizontal position of the OSD menu screen. 0 ~ 100 OSD vertical position: Adjusts the vertical position of the OSD menu screen.
-
Page 12: Explanation Of Message For Utilization
Explanation of message for utilization Auto Adjust Auto Adjust Appears when automatic screen adjustment is executed on RGB mode. No Signal Appears when there is no PC input signal Check cable connection. No Signal Video Mode Not Supported Video Mode Not Supported Appears when Video Mode is out of the permissible range. -
Page 13: Timing Guide
Timing guide Timing guide This product is a multi-frequency monitor. It functions in horizontal frequencies from 30 kHz to 80 kHz and vertical frequencies from 56 Hz to 75 Hz. Due to its design based on microprocessor, it offers the functions of automatic synchronization and automatic size. This monitor is equipped with 10 programmed configurations that are shown in the timing table. - Page 14 Timing guide In case of DVI terminal SIGNAL SIGNAL SIGNAL T.M.D.S DATA 2- T.M.D.S Data 1- T.M.D.S Data 0- T.M.D.S DATA 2+ T.M.D.S Data 1+ T.M.D.S Data 0+ T.M.D.S Data 2/4 T.M.D.S Data 1/3 T.M.D.S Data 0/5 Shield Shield Shield T.M.D.S Data 4- T.M.D.S Data 3- T.M.D.S Data 5-...
-
Page 15: Product Specifications
Product specifications 19” diagonal viewable screen TFT WIDE Type (Thin Film Transistor). Active Matrix Panel 0.2835 mm (H) x 0.2835 mm (V) Pixel Pitch R,G,B verfical stripe Surface Color 16,777,216 colors Display Condition anti-glare coating 160°/160° Angle of view H/ V Contrast ratio Type 700:1... -
Page 16: Troubleshooting
Troubleshooting No power. - Flip the power switch ON. The Power LED turns on. - Make sure AC power cord is securely connected to the power jack and to a power outlet. Power on but no screen image. - Make sure the video cable attached with this monitor is tightly secured to the video output port on the back of the computer - Adjust the brightness and contrast. - Page 17 Troubleshooting Control buttons do not work. - Press only one button at a time. ABOUT THE LCD The LCD contains over 3,932,160 thin-film transistors (TFTs). A small number of missing, discolored, or lighted dots on the screen is an intrinsic characteristic of TFT LCD technology and is not an LCD defect.
- Page 18 FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
