WIRELESS MADE SIMPLE
HS LONG-RANGE HANDHELD TRANSMITTER DATA GUIDE
DESCRIPTION
The Linx OTX-***-HH-LR8-HS Long-Range
Handheld Transmitter is ideal for general-
purpose
remote
control
and
applications which require high security and
long transmission distances. This unit has been
pre-certified for FCC Part 15, Industry Canada,
and European CE (433MHz only) compliance,
reducing costs and time to market. Available in
315, 418 (standard), or 433.92MHz, this small
remote has a transmission range of up to 1,000
feet when combined with an LR Series receiver.
The transmitter unit can be configured with 1 to
8 buttons and the keypad and labeling can be
modified to meet specific OEM customer
requirements.
Security
is
dramatically
enhanced by the on-board HS Series encoder,
which uses Cipherlinx™ technology, a high-
security encryption algorithm and wireless
protocol. When paired with an HS Series
decoder, transmitter identity can be determined
and button permissions established. The unit
uses a single 3V CR2032 lithium button cell.
FEATURES
FCC, Canada, and CE pre-certified
Highly secure, encrypted transmission
1 to 8 buttons
Customizable keypad
APPLICATIONS INCLUDE
Secure Remote Control
Keyless Entry
Garage / Gate Openers
Lighting Control
Call Systems
Home / Industrial Automation
Wire Elimination
®
TM
CipherLinx
Technology
command
R 0.2"
2.00"
1.35"
1.62"
0.20"

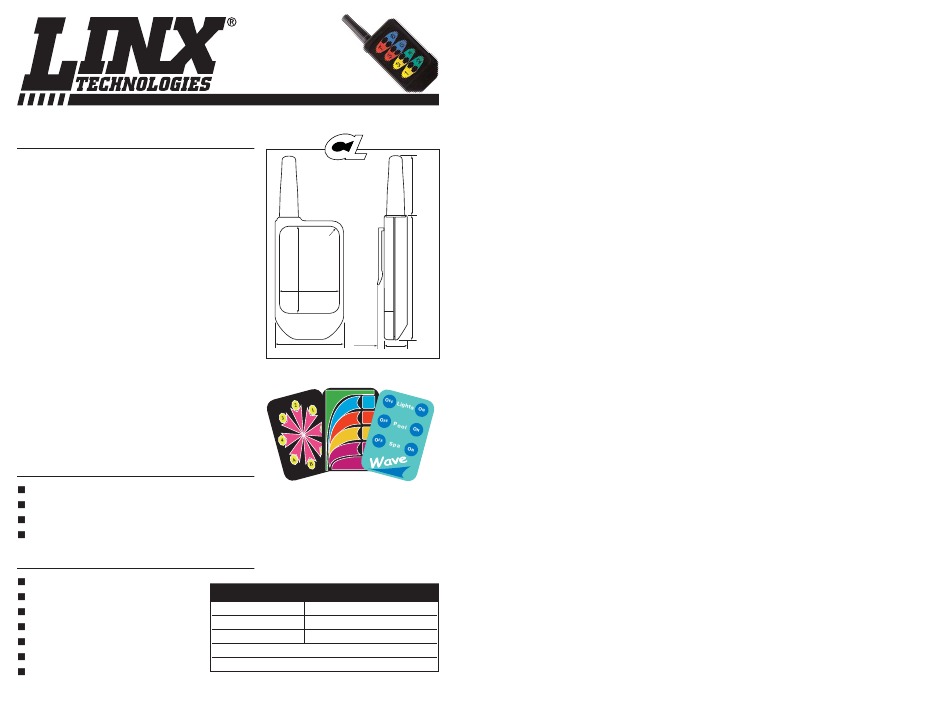

Figure 1: Package Dimensions
ON
ON
ON
ON
FASCO
OEM Configurations
With
a
one-time
NRE
minimum order, Linx can configure
the keypad and label areas to
meet your specific requirements.
Contact Linx for details.
ORDERING INFORMATION
PART #
DESCRIPTION
OTX-***-HH-LR8-HS-xxx HS Long-Range Transmitter
MDEV-***-HH-LR8-HS
HH-LR8 Master Development System
*** = 315, 418 (Standard), 433.92MHz
xxx = Reserved for custom colors. Leave blank for standard black
Revised 3/30/07
1.375"
2.81"
0.60"
