PCL Air Compressors CM2024D/CM2550D/CM3100DT
14
8
12
15

Operation

WARNING! Before commissioning must check the oil level in the
compressor.
WARNING! IN case of any abnormal noise, immediately turn off the tool
and contact an authorized service facility for repairs.

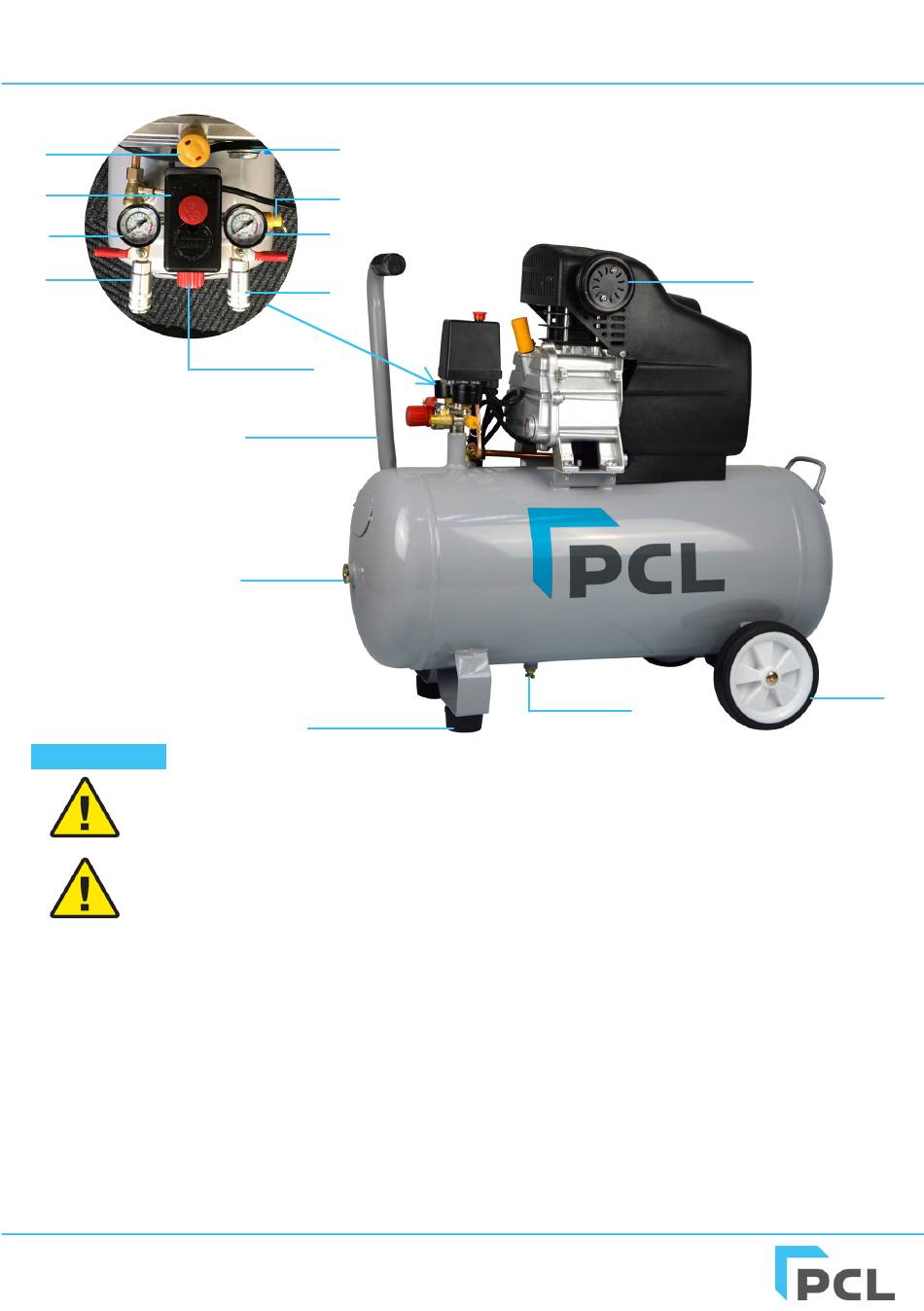

Assembly and component checking

• Install wheels (3) and foot (4) - with bolts and nuts provided.
• Replacing the air filter (1) - Remove the brackets used during transport with a screwdriver
or similar tool and attach an air filter (1) by screwing on the device. (Fig. 7)
• Changing the oil cap closure (14) - Remove the transport cover from the oil filler hole using
a screwdriver and place the cap closure (14) in the spout (Fig 8).
• The compressor is equipped with power-connection cable with protective contact plug. It
can be plugged into any socket with protective contact 230V ~ 50Hz which is equipped with
a safety 16 A. Before starting, check whether the mains voltage corresponds to the operat-
ing voltage stated on the data plate device. Power cords and extension cords or long cable
drums causes low voltage and prevent proper starting.
• Safety valve (10) is adjusted to the maximum allowable pressure of the pressure tank.
Do Not modify or remove the safety valve seal. To function properly in the event of switch
damage, safety valve should be checked weekly. Firmly pull ring out until the compressed
76456 Issue 2
13
10
6
5
7
9
2
4
www.pclairtechnology.com
1
11
3
