In order to obtain the best conversation quality, it is not proper to consume the
power supply with other electric appliance on one power source
Please read this manual before using this device and keep it well for future use

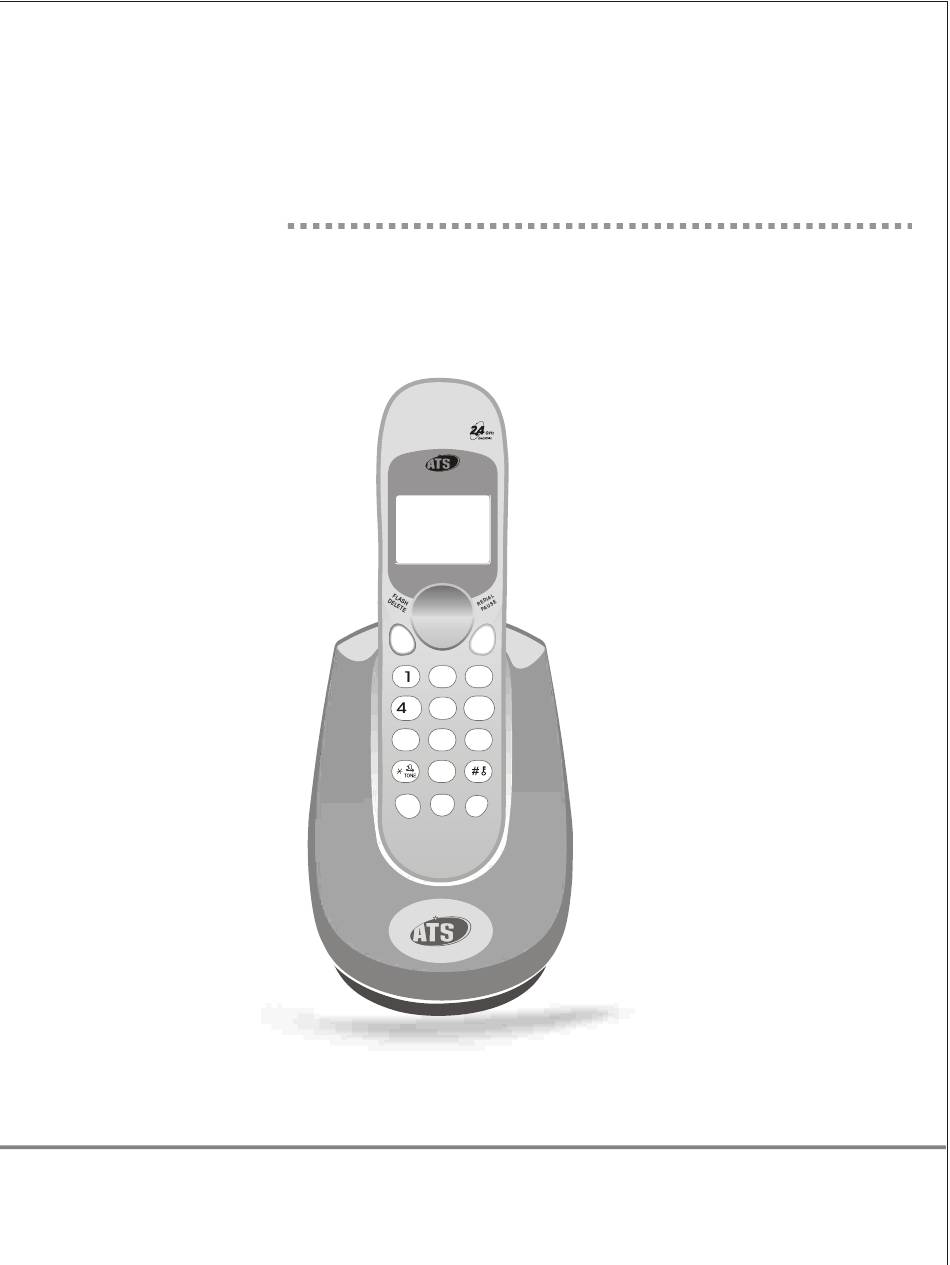

2.4GHz Digital Cordless Phone
UP
TALK
END
DOWN
SPEAKER
2
3
ABC
DEF
5
6
GHI
JKL
MNO
7
8
9
PQRS
TUV
WXYZ
0
LDS
PAGE
MENU
MUTE
Instruction Manual
CH-W808

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-W808 and is the answer not in the manual?

Questions and answers

Related Manuals for ATS CH-W808

Summary of Contents for ATS CH-W808

  • Page 1 2.4GHz Digital Cordless Phone Instruction Manual CH-W808 TALK DOWN SPEAKER PQRS WXYZ PAGE MENU MUTE In order to obtain the best conversation quality, it is not proper to consume the power supply with other electric appliance on one power source...

  • Page 2: Table Of Contents

    CONTENTS MAIN FEATURES................... 2 PACKAGE CONTENTS................3 TELEPHONE SKETCH & PARTS DESCRIPTIO N....3-4 INSTALLATION INSTRUCTION.........5 LCD SCREEN................6 SYMBOL DESCRIPTION............6 MENU OVERVIEW..............7 LDS OPERATION INSTRUCTION ..........8 MENU SETTING............8 REGISTER AND DEREGISTER........8 LOCAL CODE............9-10 BACKLIGHT TIME SETTING........10 TONE/PULSE SELECTABLE SETTING.......11 AUTO TALK AND ANY KEY TALK SETTING....11 RECALL TIME DURATION SETTING 100MS/300MS/600MS ..........12...
  • Page 3 CONTENTS WALKIE TALKIE..............21 BABY C ALL SETTING............22 ROOM MONITOR..............23 CALLER ID REVIEW,/REDIAL/STORE/DELETE......24 OUTGOING CALLS REVIEW / REDIAL / STORE / DELETE..25- 26 RINGER TONE SETTING..........27-28 RINGER TONE VOLUME SETTING........28-29 PAGE TONE MELODY SETTING........29 KEYPAD TONE SETTING...........29 DIAL CALL..............30 ANSWER CALLS..............30 CALL WAITING.............

  • Page 4: Main Features

    MAIN FEATURES Applying to 2.4GHz Digital Cordless Technology ensuring clear, secure conversation, Integrated with security code to avoid illegal line access Baby call function Polyphonic ringer tone (20 groups for option) Multilinking of handsets (Max. link up to 4 handsets) Lighted Keypad Multi-language FSK/DTMF dual system Caller ID and Call Waiting...

  • Page 5: Package Contents

    2.4GHz Digital Cordless Phone Instruction Manual CH-W808 TALK SPEAKER DOWN PQRS WXYZ PAGE MENU MUTE In order to obtain the best conversation quality, it is not proper to consume the power supply with other electric appliance on one power source...

  • Page 6: Telephone Sketch & Parts Description

    TELEPHONE SKETCH & PARTS DESCRIPTION Receiver UP button Down button REDIAL/PAUSE button FLASH /DELETE button END button TALK button TALK SPEAKER DOWN Number Button No-disturbance PQRS WXYZ Key Pad Lock LDS button PAGE MENU MENU/MUTE button MUTE PAGE button Numeric Keypad description Space ~ 4 ~...

  • Page 7: Installation Instruction

    INSTALLATION INSTRUCTION Jack ( D C 9 V / 4 0 0 m A adaptor ~ 5 ~...

  • Page 8: Lcd Screen

    LCD SCREEN AND SYMBOL DESCRIPTION LCD SCREEN SYMBOL DESCRIPTION ANTENNA BATTERIES ALARM CLOCK NON-DISTURBANCE KEYPAD LOCK REPEAT UP/DOWN NEW CALLER ID VOLUME ~ 6 ~...

  • Page 9: Menu Overview

    MENU OVERVIEW MENU PHONE BOOK EMPTY NEW ENTRY----INPUT NAME----INPUT NUMBER EDIT RECORD----EDIT NAME----EDIT NUMBER DELETE RECORD DELETE ALL DEFAULT GROUP VIP GROUP SELECT GROUR FAMILY GROUP SPEED DIAL MEMORY STATUS SETUP LOCAL CODE BACKLIGHT TIME----SECOND (5--20S') DIAL MODE----SELECT (TONE/PULSE) AUTO TALK----SELECT (ON/OFF) RECALL MODE----SELECT (LONG / EXTRA LONG / SHORT) UNIT NAME----INPUT NAME LANGUAGE----ENGLISH / FRANCAIS / DEUTSCH / (OPTION)

  • Page 10: Lds Operation Instruction

    FUNCTION SETTING INSTRUCTION LDS OPERATION INSTRUCTION At standby mode or working state, press LDS button to ente r directly ATS network service , dial the expected number directly MENU SETTING MENU 1.At standby mode(handset),press to enter menu PHONE BOOK Displaying : setting ,till displaying 2.Press...

  • Page 11: Local Code

    FUNCTION SETTING INSTRUCTION BASE UNIT MENU Displaying : >.Press to confirm MENU INPUT PIN >.Press to confirm and INPUT PIN displaying on Displaying : LCD, the icon flash MENU >.Input the defaulted ID number 1234 and press till REGISTER LCD display REGISTER to enter register mode (press FL/ Displaying : DEL for delete if any error) >.It indicates the Register succeed once crisp tone "DI"...

  • Page 12: Backlight Time Setting

    FUNCTION SETTING INSTRUCTION MENU PHONE BOOK Displaying : 1.At standby mode (handset), press to enter Menu Setting SETUP 2.Press to select SETUP Displaying : MENU LOCAL CODE 3.Press to enter LOCAL CODE setting Displaying : MENU LOCAL CODE 4.Press to confirm and input the local code (max.6 digits), Displaying : 0818 i.e.:0818 (pressFL/DEL button to edit if any error)

  • Page 13: Tone/Pulse Selectable Setting

    FUNCTION SETTING INSTRUCTION TONE/PULSE SELECTABLE SETTING MENU 1.At standby mode, press to enter menu setting PHONE BOOK Displaying : 2.Press to select "SET UP" SETUP Displaying : MENU LOCAL CODE 3.Press till LCD displays " LOCAL CODE" Displaying : DIAL MODE 4.Press to select "DIAL MODE"...

  • Page 14: Recall Time Duration Setting 100Ms/300Ms/600Ms

    FUNCTION SETTING INSTRUCTION RECALL TIME DURATION SETTING 100ms/300ms/600ms MENU PHONE BOOK 1.At standby mode (handset) press to enter menu Displaying : setting SETUP 2.Press to select "SET UP" Displaying : MENU 3.Press to confirm and press to select RECALL Displaying : MODE RECALL MODE MENU...

  • Page 15: Language Setting

    FUNCTION SETTING INSTRUCTION LANGUAGE SETTING MENU PHONE BOOK 1.At standlby mode, press to enter menu setting Displaying : SETUP 2.Press to select SET UP" Displaying : MENU LOCAL CODE 3.Press to confirm and displays LOCAL CODE Displaying : LANGUAGE 4.Press select LANGUADE Displaying :...

  • Page 16: Edit The Id Register Number

    FUNCTION SETTING INSTRUCTION EDIT THE ID REGISTER NUMBER Notice: this function is for editing the register ID number which indicated on page 8, the original default ID number is 1234, in case of the ID numer is required to modified, follow up this instruction MENU PHONE BOOK...

  • Page 17: Time Setting

    FUNCTION SETTING INSTRUCTION TIME SETTING MENU PHONE BOOK 1.At standby mode (handset), press to enter menu setting Displaying : SETUP 2.Press to select "SET UP" Displaying : MENU LOCAL CODE 3.Press till LCD displays Displaying : SET TIME 4.Press to select "SET TIME" Displaying : MENU SET TIME...

  • Page 18: Phone Book Setting

    FUNCTION SETTING INSTRUCTION PHONE BOOK SETTING MENU At standby mode (handset), press to enter menu PHONE BOOK Displaying : setting MENU Press to enter phone book setting Displaying : EMPTY 1.NEW ENTRY MENU NEW ENTRY Displaying : >Press to select NEW ENTRY MENU >Press...
  • Page 19 FUNCTION SETTING INSTRUCTION MENU NEW ENTRY >Press to enter "NEW ENTRY" Displaying : DELETE >Press to select "DELETE RECORD" Displaying : RECORD MENU >Press to confirm to delete the stored record, press END to exit, press FL/DEL to return to upper menu 4.Delete all record MENU JACK...

  • Page 20: Non-Disturbance Setting

    FUNCTION SETTING INSTRUCTION 6.SPEED DIAL MENU JACK >Press twice to enter phone book mode Displaying : 8888888 >Press to select the stored record MENU >Press to confirm the select NEW ENTRY Displaying : SPEED DIAL >Press to select "SPEED DIAL" Displaying : MENU HOT KEY O...
