AGI Westeel Original Instructions Manual

6', 7', 9', 12', & 15' bft bulk feed tank installation and storage instructions
Hide thumbs Also See for Westeel:
Table of Contents

Advertisement

Quick Links

Download this manual

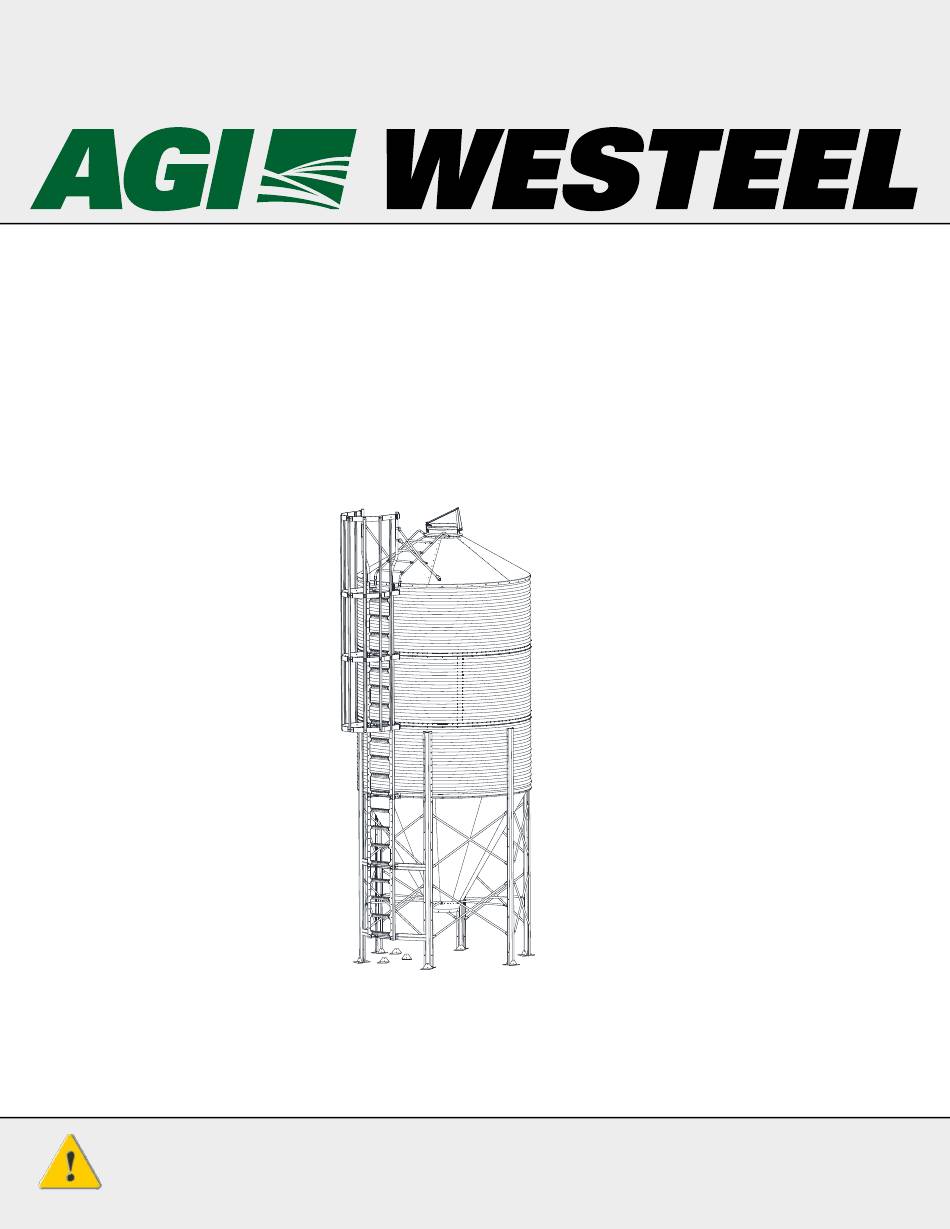

6', 7', 9', 12', & 15' BFT Models
Bulk Feed Tank
Installation and Storage Instructions
Original Instructions
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
Part Number: 240263 R6
Revised: November 2018
