Install Lift Rod

1. Insert the end of the rod guide (A, Figure 11) through
hole in upright of lift arm (B), and secure with spring
clip (C).
NOTE: The rod guide (A, Figure 11) should be installed
in the lower hole for hydraulic lift applications. For manu-
al lift applications, the rod guide may be installed in either
hole. The upper hole provides reduced lift effort; the
lower hole provides increased lift height.
2. Connect the rear of the lift lever (A, Figure 12) to the
lift arm extension (B) using a hair pin clip (C).
3. Adjust lift rod. Different types of terrain may require
an adjustment to the lift rod assembly. For instruc-
tions on how to make this adjustment refer to the "Lift
Rod Adjustment" procedure in the ADJUSTMENTS
section of this manual.
B
A

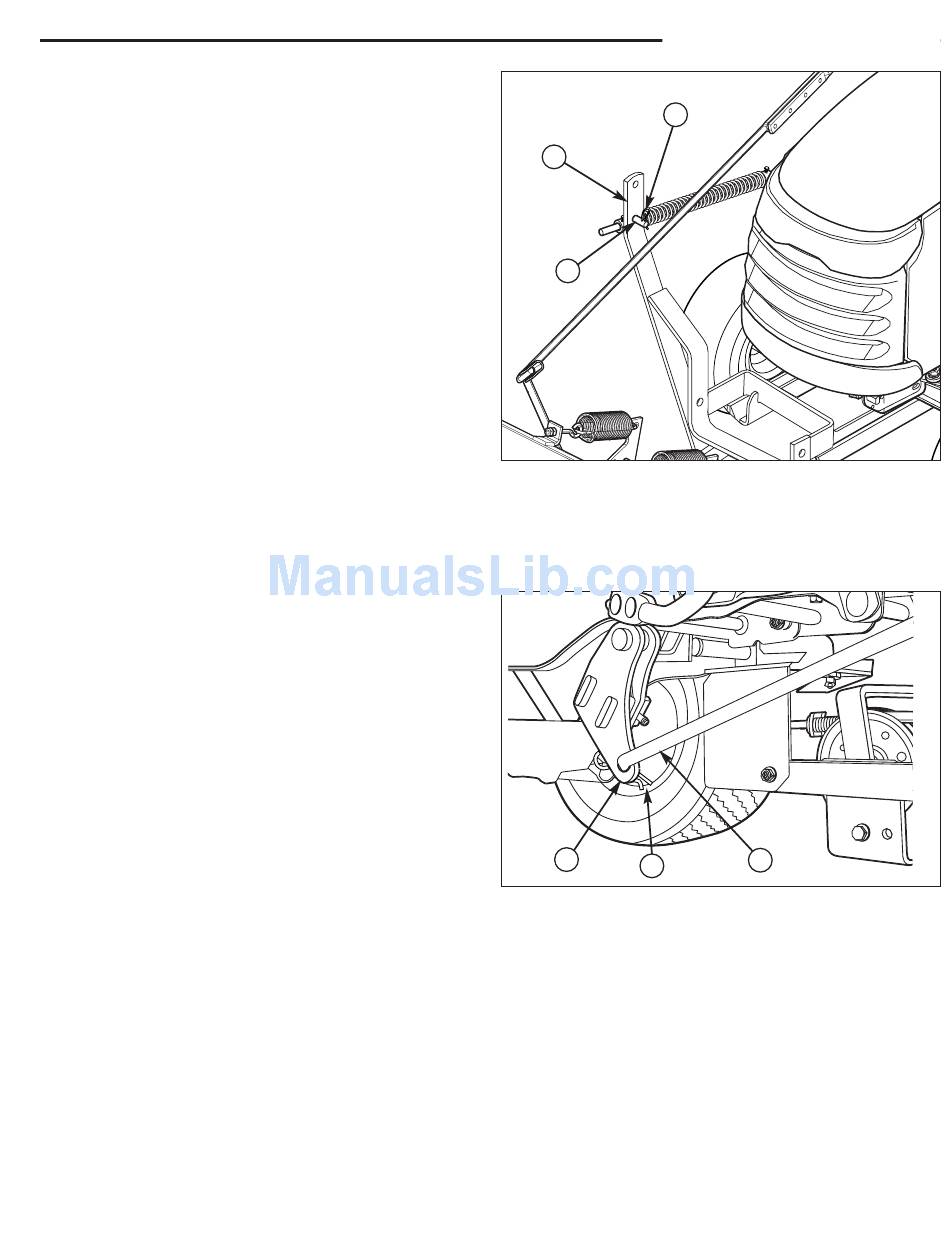

Figure 11. Lift Rod Assembly
A. Rod Guide
B. Push Bar Lift Arm
C. Spring Clip
B
C
Figure 12. Install Lift Rod
A. Lift Rod
B. Lift Arm Extension
C. Hair Pin Clip
11
Initial Setup & Assembly
C
A
