  • Page 1 OWNER S MANUAL ’ MODEL NO: CWI-B1512 15” WOOD WORKING BANDSAW...

  • Page 2: Table Of Contents

    SAFTEY RULES ............... ADDITIONAL SAFETY RULES ......... GROUNDING INSTRUCTIONS ........WARNING PLATES ............FEATURE ................. 10 TABLE ADJUSTMENT ............TABLE ALIGNMENT ............FENCE ALIGNMENT ............BLADE CHANGES ............WHEEL ALIGNMENT ............FENCE INSTALL ............... FENCE ADJUSTMENT............BODY PARTS BREAKDOWN ........... BODY PARTS LIST ............

  • Page 3: Saftey Rules

    SAFETY RULES WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. 1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s application and limitations as well as the specific hazards peculiar to it. 2.
  • Page 4 11. USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 11.
  • Page 5 21. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function-check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation.

  • Page 6: Additional Safety Rules

    SAVE THESE INSTRUCTIONS ADDITIONAL SAFETY RULES FOR BAND SAWS 1. If you are not thoroughly familiar with the operation of band saws, obtain advice from your supervisor, instructor or other qualified person. 2. Follow all wiring codes and recommended electrical connections. Make certain that the tool is properly grounded.
  • Page 7 15. Make relief cuts before cutting long curves. 16. Do not cut material that is too small to be safely supported. 17. Support long heavy work from the floor. 18. Before leaving the machine, make sure the work area is clean. 19.

  • Page 8: Grounding Instructions

    GROUNDING INSTRUCTIONS 1. All grounded, cord-connected tools: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug.
  • Page 9 until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. 3. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating between 150-250 volts, inclusive: This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Sketch D in Figure 1.

  • Page 11: Warning Plates

    WARNING PLATES This machine has warning symbols attached on it as shown below to ensure proper and safe operation. These symbols are used on the machine to indicate points or instances of specific danger to operating personnel. Make sure to memorize these symbols and bring them to the attention of others as and when necessary.

  • Page 12: Feature

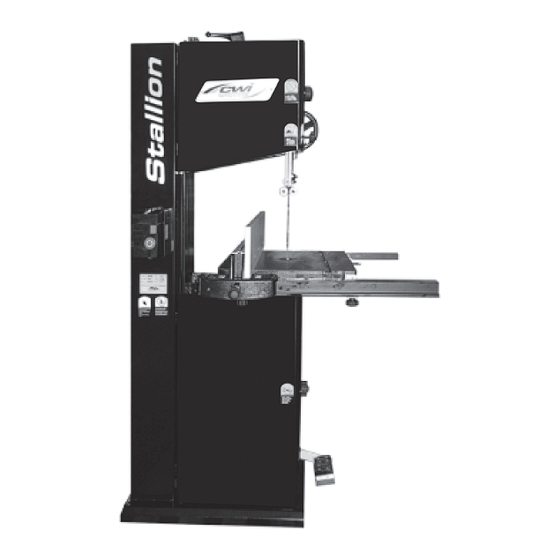

    FEATURES Motor – 2HP, Single Phase 110/220 Volts.  Motor Speed –1725 RPM.  Motor Switch –Magetic control panel  Blade Speed –2300 , 3250 FPM.  Fully Balanced Cast Iron Wheels.  Table Size – 16” X 20” . ...
  • Page 13 INSTALLAITON SAFETY RULES FOR MACHINE LIFTING 1. Pay special attention to the balance of the machine while lifting. 2. Use a forklift with sufficient loading capacity to lift the machine. 3. Have another person help guide the way when lifting the machine. 4.
  • Page 14 the machine to open or remove doors/covers as required by the maintenance and service described in this manual. Electrical Installation Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave assess to a means of disconnection the power source or engaging a lockout/tagout device.
  • Page 15 POWER SUPPLY REQUIREMENT Insufficient voltage from factory power source may affect the power output of the motor and the function of the controller. It is important to connect this machine to the correct voltage in the factory power source. Use only an independent power source. 3.7 CONNECT POWER SOURCE WIRES 1.

  • Page 16: Table Adjustment

    TABLE ADJUSTMENT Table assembly 1. Place table bracket on the bandsaw so that the two bracket pins can go into the holes on the support. 2. Secure table bracket to bandsaw body using the two hex head bolt and flat washers(Fig.1) 3.
  • Page 17 Tilting the table The bandsaw table tilts up 45° to the right or up to 10° to the left. TO tilt the table(Fig.) 1. Loosen knob under the table(Fig. A)&(Fig.,C). 2. Tilt table the desired angle of degree, gauge under the table.

  • Page 18: Fence Alignment

    Table.Alignment To ensure cutting accuracy when the table is first installed, align the table so the miter slot is parallel to the bandsaw blade. This procedure works best with the largest blade that the machine accepts. To.align.the.miter.slot.parallel.to.the.bandsaw.blade,. do.these.steps: 1. Make sure the blade is correctly tracked and ten- sioned.

  • Page 19: Blade Changes

    Blade.Changes To.replace.the.blade,.do.these.steps: 1. DISCONNECT BANDSAW FROM POWER! 2. Release the tension lever. 3. Remove the table insert and the table pin. Adjust the upper and lower guide blocks away from the blade. 4. Open the upper and lower wheel covers and slide the blade off both wheels.

  • Page 20: Wheel Alignment

    Wheel.Alignment When wheels are aligned, or coplanar, the bandsaw cuts straighter, with much less vibration, heat, and blade wear because the blade is automatically balanced on the Parallel, Not Coplanar wheel. See Figure 5 to better understand coplanarity. Coplanar If your bandsaw develops tracking problems that can't be fixed by adjusting the upper wheel tracking knobs, then check the wheel alignment before taking any other steps.
  • Page 21 7. Tighten the blade, then check the wheels. (Coplanar wheels may pull out of alignment when the blade is tightened.) 8. When the wheels are coplanar, place a mark on each wheel where you held the straightedge. This assures repeated accuracy every time you adjust your wheels.

  • Page 23: Fence Install

    FENCE INSTALL...

  • Page 25: Fence Adjustment

    FENCE ADJUSTMENT ADJUSTING SCREW TABLE 90 ﾟ Shaft for 90°...
  • Page 26 FENCE BODY TABLE To level and adjust the height of the fence, loosen the bolt that hold the mounting brackets to the table, and raise or lower the front rails along the elongated holes in the mounting brackets. Level the fence, front and back as needed, and set the spacing between the bottom of the fence and the table to 1mm (approx.) as shown in image.

  • Page 27: Body Parts Breakdown

    CWI-B1512 BODY PARTS BREAKDOWN...

  • Page 28: Body Parts List

    CWI-B1512 BODY PARTS LIST BODY HEX NUT 3/16" PHILLIPS FLAT HEAD SCREW TOP WINDOW COVER CAP SCREW SWITCH PHILLIPS FLAT HEAD SCREW PHILLIPS HEAD SCREW BRUSH NYLON NUT LOWER DOOR SET SCREW 1/4*1/4 HEX NUT L.H. ECCENTRIC BLOCK LOWER WHEEL...
  • Page 29 CWI-B1512 BODY PARTS LIST SPIRAL STEM BEARING BASE SET 6" HANDWHEEL ADJUSTING SCREW PULLEY SPECIAL SCREW V-BELT A33 HEX NUT H. BRAKE BELT BEARING COVER SHAFT MOTOR CORD KEY 5*5*25MM CORD BRAKE LEVER POWER CORD HEX BOLT KNOB 5/16-18*2" HEX BOLT...
  • Page 30 CWI-B1512 TABLE PARTS BREAKDOWN...

  • Page 31: Table Parts List

    CWI-B1512 TABLE PARTS LIST HEX BOLT PHILLIPS FLAT HEAD SCREW SPRING WASHER POINTER WASHER TABLE GUIDE BAR COVER TABLE INSERT GUIDE BAR TAPERED PIN 6*38MM BRACKET MITER GAUGE WASHER HEX BOLT SPRING WASHER TRUNNION CLAMPSHOE HEX BOLT TRUNNION PINION SHAFT...

  • Page 32: S Model Parts Breakdown

    CWI-B1512 S MODEL PARTS BREAKDOWN BALL BEARINGS KIT - OPTIONAL CERAMIC KIT - OPTIONAL BALL BEARINGS KIT - OPTIONAL CERAMIC KIT - OPTIONAL...

  • Page 33: S Model Parts List

    CWI-B1512 S MODEL PARTS LIST DESCRIPTION SLEEVE SHAFT DOVETAIL BLOCK SET SCREW 1/4” x 1/4” SLIDING BLOCK - L BEARING SHAFT EXTERNAL RETAINING RING S10 BALL BEARING 6000ZZ CAP SCREW 1/4” x 1/2” BASE - B BASE - S SHAFT DOVETAIL BLOCK - CHAMFERING CAP SCREW 1/4”...

  • Page 34: Fence Assy Parts Breakdown

    CWI-B1512 FENCE ASSY PARTS BREAKDOWN...

  • Page 35: Fence Assy Parts List

    CWI-B1512 FENCE ASSY PARTS LIST 6" FENCE FLAT HED CAP SCREW M10 x 70mm FLAT HEAD CAP SCREW M5 x 10mm FENCE BASE SET SCREW 1/4-20P x 1/4” EXTERNAL RETAINING RING S10 BEARING 6200ZZ ECCENTRIC SHAFT PRESSURE PLATE FENCE SCALE FRONT FENCE RAIL SQUARE NUT 5/16”...
