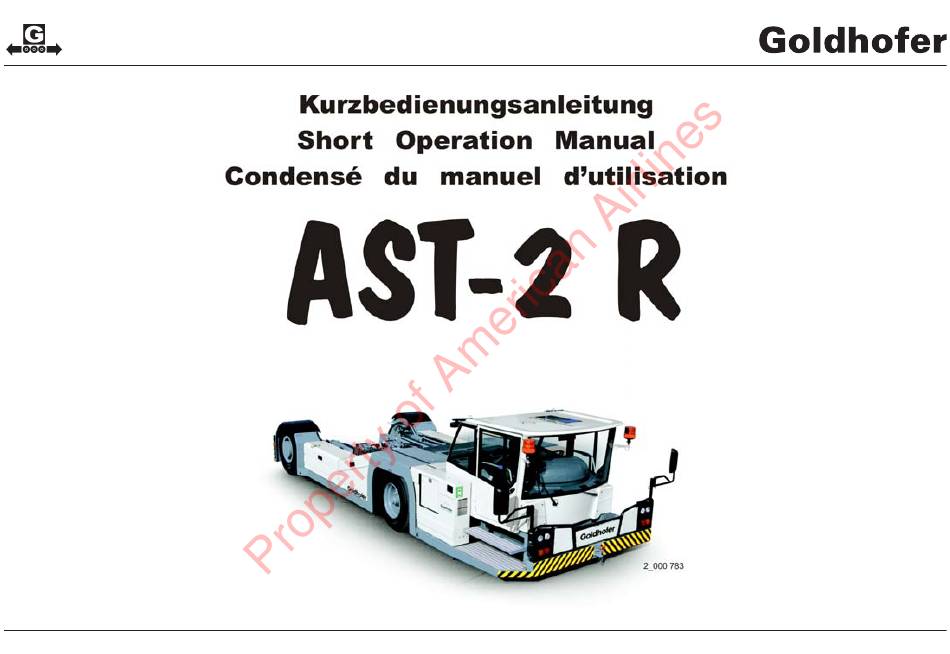

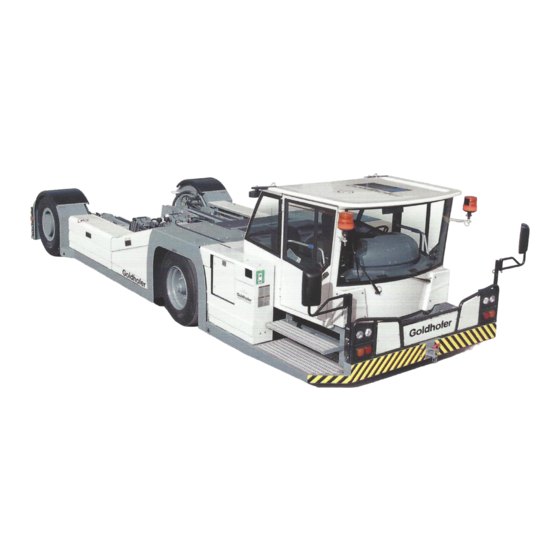

Short Operating Instructions Manual AST-2 R
Operating Manual
observe
Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen
rsi / 08.2008
K-B -/0
Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239
AST-2 R
AST-2_R_KB_eng.vp

Advertisement

loading
Need help?

Need help?

Do you have a question about the AST-2 R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goldhofer AST-2 R

Summary of Contents for Goldhofer AST-2 R

  • Page 1 Short Operating Instructions Manual AST-2 R Operating Manual observe Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 2 The precautionary information included in the manual, particularly the Safety Instructions mentioned hereunder and the “Important Information”, as well as the legal traffic regulations and accident preventing regulations must be followed and observed. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 3 ESF04 Bypass switch ESC14 Pushbutton hazard warning lights ERC01 Dimmer EHB18 Warning lamp parking brake Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 4 Carefully observe the working area when setting down or picking up the aircraft. Drive away from the aircraft before raising the pick-up device. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 5 EHB03 Alarm buzzer parking brake ESS03 Switch emergency lights EXE03 Socket Accelerator pedal Brake pedal Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 6 214.11 Central lubrication system 214.5 Vehicle status 214.12 Windscreen heating 214.6 Overtorque 214.13 ASR 214.7 Braking system Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 7 Text diagnostic module (TDM) – aircraft selection AC1-AC6 Aircraft selection buttons Esc button Menue Menu button Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 8 Position lamps Flashing roof light Rotating lights Windscreen heating Mirror heating Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 9 We recommend that all such measures are provided as AST work instructions to the operator / driver. EST08 Key switch overtorque Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 10 - Switch off ignition - Switch on ignition · All EMERGENCY-OFF switches pulled = all functions operational. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R...
  • Page 11 Charging socket - Connector for battery charger (option) - Engine pre-heating (option) Battery 1 Battery 2 Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R...
  • Page 12 Carefully observe the working area when picking up the aircraft. Aircraft pick-up is only possible when the seat is turned to the rear. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 13 - TDM displays “Aircraft selection screen” - Engage parking brake See continuation on next page 2_000 905 Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R...
  • Page 14 - Continue with Index 401.2 (driving with the aircraft) ESF01/ESF02 max. max. ESA02 ESA02 2_000 905 Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 15 - Swivel arms fold in - pick-up device is fully raised to the driving position. - The TDM displays “AST ready to drive” Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 16 Start diesel engine in emergency operation Emergency drive / emergency travelling gear Emergency operation pick-up device Emergency driver seat release Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 17 Pushbutton ESL08 is used to switch on the emergency unit. The emergency unit will only pump the hydraulic oil as long as pushbutton ESL08 is pressed. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 18 Return all controls to driving position und store emergency release equipment (manual pump hose, etc.) securely after emergency operation and re-starting. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 19 Return all controls to driving position and store emergency release equipment (manual pump hose, etc) securely after emergency operation and re-starting. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 20 Return all controls to driving position and store emergency release equipment (manual pump hose, etc) securely after emergency operation and before re-starting. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 21 Return all controls to driving position and store emergency release equipment (manual pump hose, etc) securely after emergency operation and re-starting. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 22 Travel drive is only conditionally released in emergency operation. This enables the aircraft tractor to be moved out of the danger zone and to drive to the workshop. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 23 Ignition on Press push button ESM01.2 (“Engine START”) in switching cabinet EXE50 - Press the push button until the engine starts Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 24 “NEUTRAL” and the brake pedal must be depressed. for steps see next page Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 25 Engage service brake, release parking brake Engage travel direction selector switch Release service brake - Vehicle pulls away immediately Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 26 Return all controls to driving position and store emergency release equipment (manual pump hose, etc) securely after emergency operation and re-starting. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 27 Turning the seat Solenoid valve EYD09 = Pos. D Release locking device and move lever to the initial position Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 28 - Tow a few meters to test - If all of the wheels turn, continue with step 5 Towing Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ··· Fax +49 (0)8331/15-239 AST-2 R AST-2_R_KB_eng.vp...
  • Page 29 - If this gap is not available, then check that the sun wheel is fully retracted Fasten the emergency cover with the fastening screws Observe continuation! Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 30 - Check for tightness, replace seals if necessary - Check the oil level and refill oil if necessary Please also refer to the manufacturer’s documentation. Goldhofer Aktiengesellschaft ··· Donaustr. 95 ··· D - 87700 Memmingen rsi / 08.2008 K-B -/0 Phone +49 (0)8331/15-0 ···...
  • Page 32 ERJ135 / ERJ145 ERJ170 / ERJ190 CRJ-700 / CRJ-900 AVRO RJ70-85-100 (BAe146) F70 / F100 B737 – 200 B737 – 300 / 400 / 500 B737 – 600 / 700 / 800 / 900 DC9-20 up to -50 / MD8x / MD9x B717 –...
