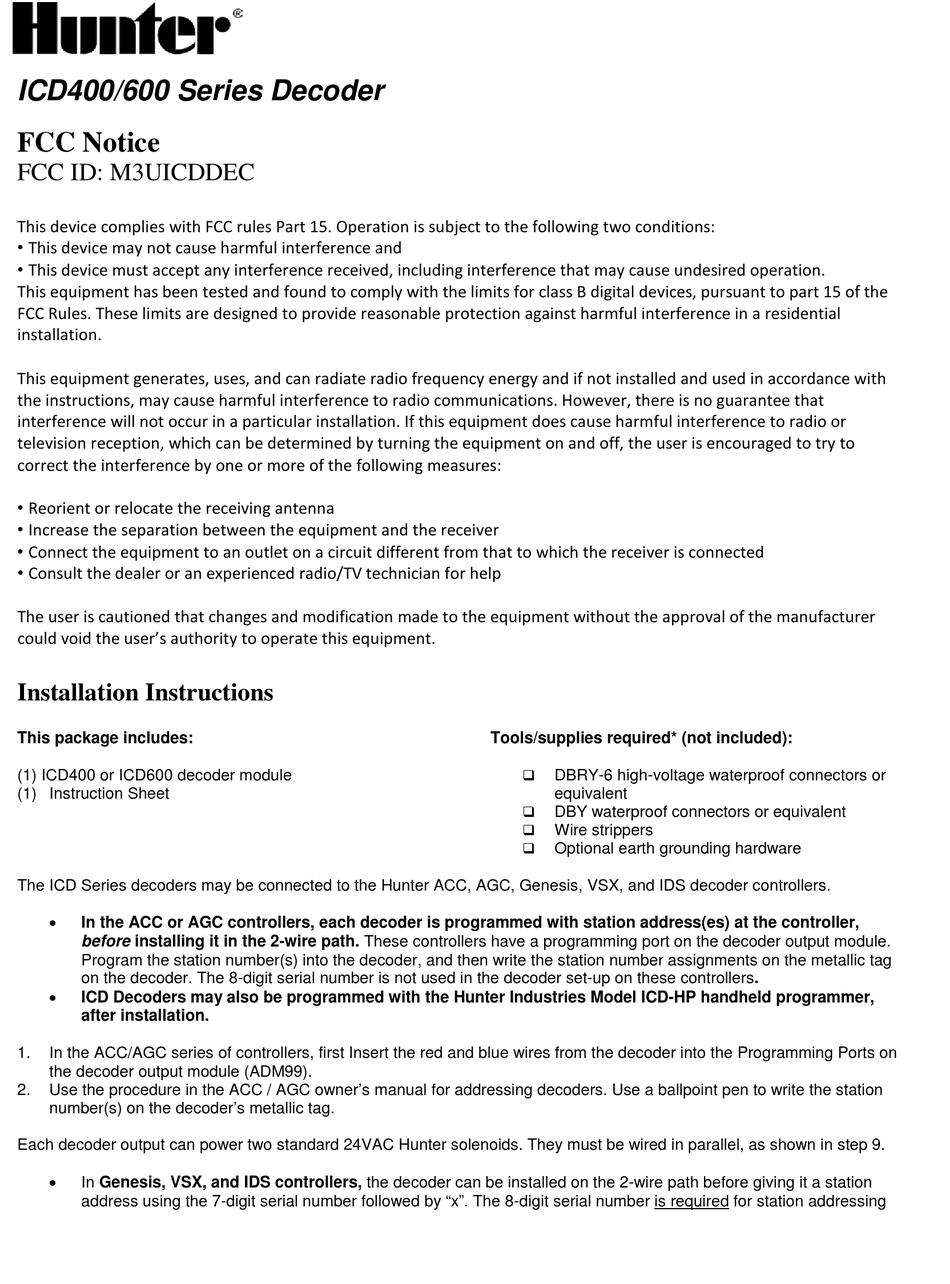

Hunter ICD400 Series Installation Instructions

ICD400/600 Series Decoder
FCC Notice
FCC ID: M3UICDDEC
This device complies with FCC rules Part 15. Operation is subject to the following two conditions:
• This device may not cause harmful interference and
• This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for class B digital devices, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
The user is cautioned that changes and modification made to the equipment without the approval of the manufacturer
could void the user's authority to operate this equipment.
Installation Instructions
This package includes:
(1) ICD400 or ICD600 decoder module
(1) Instruction Sheet
The ICD Series decoders may be connected to the Hunter ACC, AGC, Genesis, VSX, and IDS decoder controllers.
•
In the ACC or AGC controllers, each decoder is programmed with station address(es) at the controller,
before installing it in the 2-wire path. These controllers have a programming port on the decoder output module.
Program the station number(s) into the decoder, and then write the station number assignments on the metallic tag
on the decoder. The 8-digit serial number is not used in the decoder set-up on these controllers.
•
ICD Decoders may also be programmed with the Hunter Industries Model ICD-HP handheld programmer,
after installation.
1. In the ACC/AGC series of controllers, first Insert the red and blue wires from the decoder into the Programming Ports on
the decoder output module (ADM99).
2. Use the procedure in the ACC / AGC owner's manual for addressing decoders. Use a ballpoint pen to write the station
number(s) on the decoder's metallic tag.
Each decoder output can power two standard 24VAC Hunter solenoids. They must be wired in parallel, as shown in step 9.
•
In Genesis, VSX, and IDS controllers, the decoder can be installed on the 2-wire path before giving it a station
address using the 7-digit serial number followed by "x". The 8-digit serial number is required for station addressing
Tools/supplies required* (not included):

DBRY-6 high-voltage waterproof connectors or
equivalent

DBY waterproof connectors or equivalent

Wire strippers

Optional earth grounding hardware
