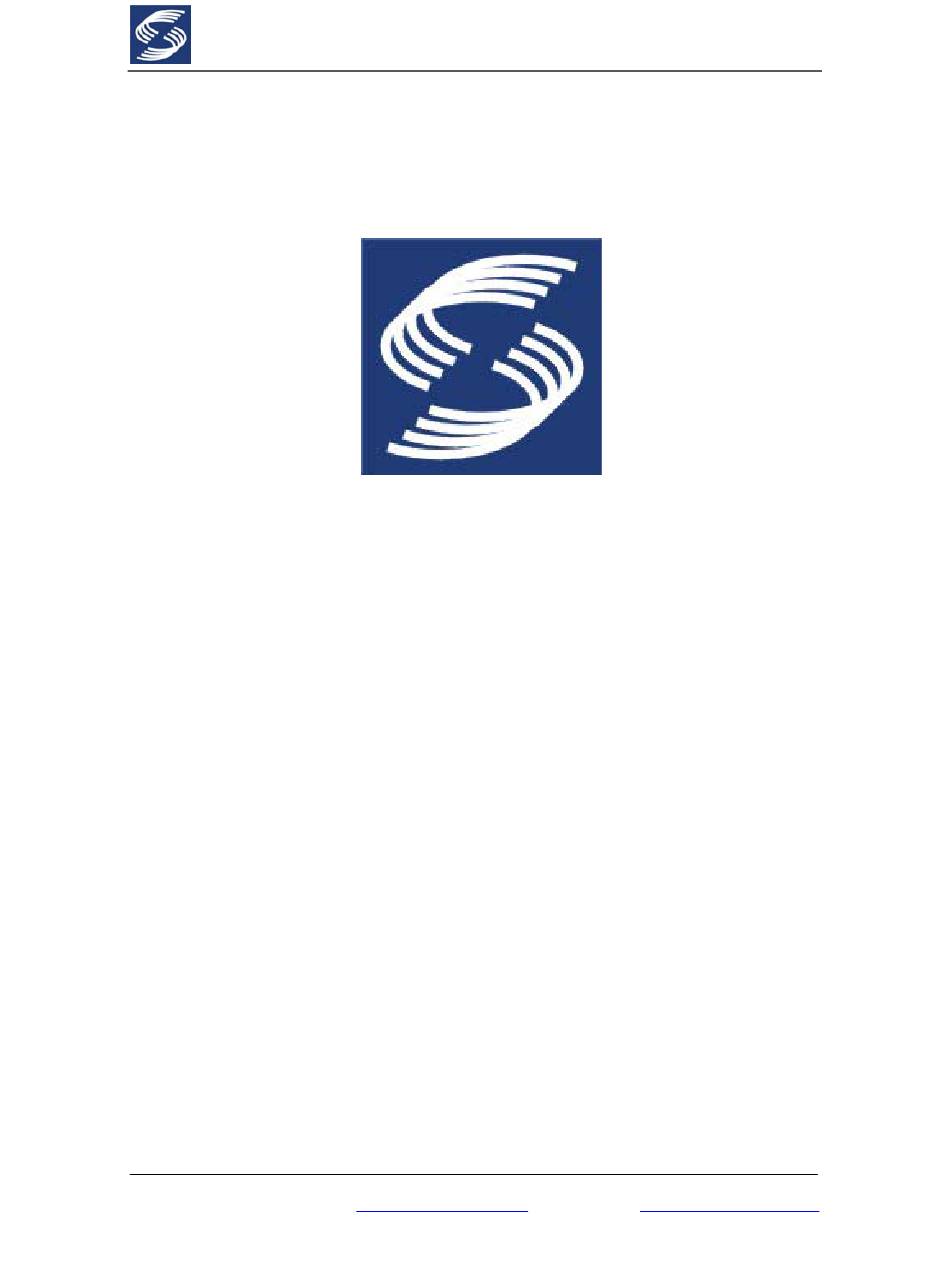

- Page 1 SUPER-RFID 11/28/2006 SUPER-RFID SP-S100 Hand held CF reader User manual Shanghai Super Electronic Technology Co. Ltd Phone: 021-64646641, 64646643, 64692252 Fax: 021－64646643-802 E-Mail: marketing@superrfid.net website：http://www.superrfid.net Page 1 of 6...
- Page 2 10 meters. As important part of our systematic solution for RF identification, SP-S100 hand held reader/writer fully demonstrated several advanced technologies of our unique...
- Page 3 SUPER-RFID 11/28/2006 Performance Identification range is within 10 meters Advanced anti-collision techniques, simultaneously identifying up to 200 tags Applied channel isolation technology, no interferences between equipments Capability of high speed bi-directional data transmission between tag , reader and Communicate with computer through RS232/483/weigand 26 or wirelessly...
-
Page 4: Specifications
SUPER-RFID 11/28/2006 Specifications Mechanical characteristics parameters specifications size 64mm×43mm×11mm weight ABS、stainless steel Shell material Color black Installation manner Portable, handheld Microwave link characteristics: specifications parameters uplink downlink modulation GFSK GFSK frequency 2.4 - 2.4835 GHz Working volage 3.3V±10% Transmission power ≤0dBm(software adjustable) - Page 5 SUPER-RFID 11/28/2006 Parameters Specifications -40℃ — +80℃ temperature Storage temperature -60℃ — +80℃ Anti-electromagnetism interferences 10V/m 0.1-1000MHz AM waves reliability MTBF≥70000 hours Work life 15 years 2. CF reader parameter setup testing software CF reader testing software is named as “Cardreader”, open it, run Cardreader.exe, the application interface is as follows: Shanghai Super Electronic Technology Co.
- Page 6 SUPER-RFID 11/28/2006 “reader” bar can be optionally blank, “count” display the number of tags having been detected, “interval ” means the time interval of data renew, usually 1 to 2 seconds. “autosave ” is usually set to 1, means one execution produce 1 data backup file.
