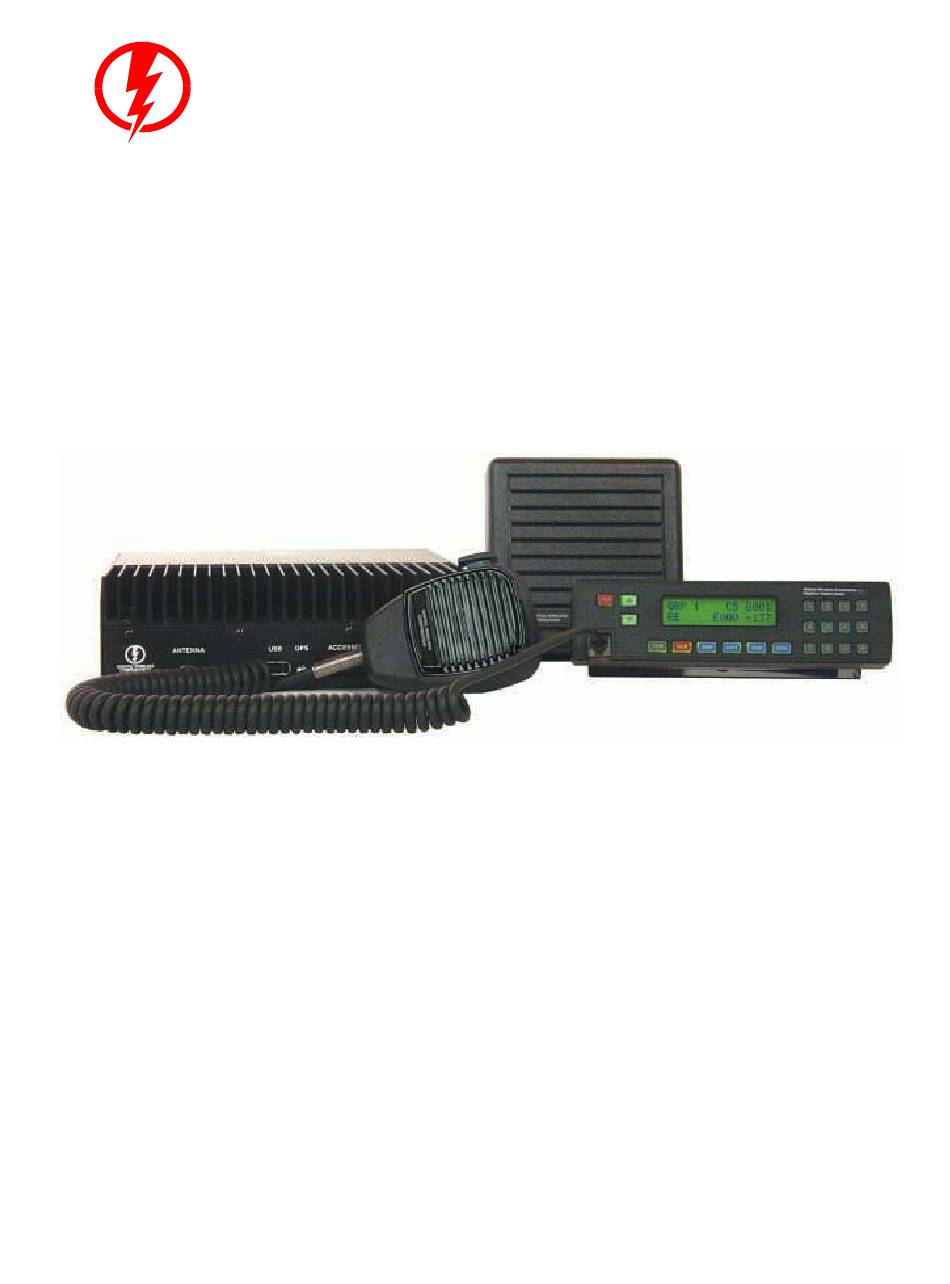

- Page 1 DM-3010 Digital DIGITAL WIRELESS CORPORATION Transceiver 406-470 MHz 25 watts User Manual 09-05-0003-00...
- Page 2 Instruction Manual may not be copied or reproduced in any manner without the express written consent of Digital Wireless Corporation, a Delaware corporation. The purchase of the product described in this Instruction Manual shall not...
- Page 3 The product described in this Instruction Manual was manufactured in the United States of America. This document is copyrighted as of July 1, 2006. i2way is a registered trademark of Digital Wireless Corporation. Publication PN 09-05-0003-00 (c) 2006 Digital Wireless Corporation Page iii Version -03 01 JUL 06...
-
Page 4: Installation
406-470 MHz bands. This radio may be used in international service down to 380 MHz. 2 Installation The DM-3010 radio is designed to be installed either in a vehicle, in a railroad locomotive or indoors. It is has no moving parts or switch contacts. Unpacking after Shipment Receipt The station is normally shipped in a cardboard carton protected in a plastic suspension mount. - Page 5 DM-3010 Mobile Radio Transceiver- Instruction Manual Mounting The radio is intended to be installed either with the transceiver unit mounted in a vehicle trunk, under a seat or in any other convenient, protected location, and the radio’s “control head” (control panel) unit mounted in a location accessible to the operator.
- Page 6 DM-3010 Mobile Radio Transceiver- Instruction Manual Transceiver Real Panel Connectors There are several connectors on the rear panel: Accessory USB Connector Connector Antenna Connector Power Input Antenna Heatsink Fins Typical Connections Antenna Loudspeaker Control Cable Control Transceiver Unit Head Microphone...
- Page 7 DM-3010 Mobile Radio Transceiver- Instruction Manual Environmental Considerations The radio is normally intended to be operated in environments that are maintained between -30° C and +50° C. The nominal operating temperature is +25° C ±3° C (77° F ±5° F). Please consult the factory for installation assistance in environments that vary from these parameters.
- Page 8 DM-3010 Mobile Radio Transceiver- Instruction Manual Warning: Maintain a separation distance from the antenna to a person(s) of at least 41 inches (when transmitting) for general Population / Uncontrolled Exposure. operation this transmitter must satisfy requirements Occupational/Controlled Exposure Environment, for work-related use. Transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna.
- Page 9 2.12 GPS Antenna This radio utilizes a GPS antenna. The GPS antenna must be of a type approved by the factory for use with the DM-3010 mobile radio. The GPS antenna is for receive only and presents no radio frequency emission hazard.
-
Page 10: Operation
DM-3010 Mobile Radio Transceiver- Instruction Manual 3 Operation The main operational control to this radio is the Push-To-Talk button on the microphone. Depression of this switch causes the radio to transmit. Additional controls are contained on the front of the Control Head:... -
Page 11: Changing Volume
DM-3010 Mobile Radio Transceiver- Instruction Manual Keyboard Switch and Control Locations Volume Group Group Transmit/ Name Number Receive Power Indicator Switch Caller Channel Receive Instant Microphone Number Signal Replay Connector For information Caller ID may Strength display either only since... - Page 12 DM-3010 Mobile Radio Transceiver- Instruction Manual The radio’s talk groups may be changed by entering the number of the desired talkgroup and pressing the “Group” button. Alternatively, the radio’s “Clear” button and then the “GRP” button may be pressed and then the Up and Down arrow keys used to select the desired group name, with the Group button pressed to store the selected group.
- Page 13 DM-3010 Mobile Radio Transceiver- Instruction Manual 5 Control Station Installation The DM-3010 mobile transceiver may be used as a fixed-mounted “control station” in a building. It may be powered from a suitable AC power supply which provides 12.2 to 15 volts at 10 amps. A factory-built desktop power supply is available from Digital Wireless which provides suitable mounting for the radio’s...
- Page 14 DM-3010 Mobile Radio Transceiver- Instruction Manual 6 Maintenance and Repair General There are no user-servicable components in the radio. There are no manual adjustments or alignment controls. No hazardous voltages are present inside the radio although the danger of an RF burn is possible if the radio is transmitting and a person comes in contact with the transmitter output or internal transmitter circuitry.
- Page 15 DM-3010 Mobile Radio Transceiver- Instruction Manual The radio’s transmit frequency(s) should be checked by a factory trained service technician using service procedures recommended by the factory. Additional tests should be performed as recommended by the factory by a factory trained service technician using service procedures recommended by the factory.
