AssetTrac
Owner's Manual & Reference Guide
GPRS Dual Band Asset Tracking Device
(850/1900 MHz)
Model: AT0303KE
© by Columbus Nova Technology Group, LLC All rights reserved — The Specifications and information regarding the
products in this manual are subject to change without notice. All statements, information, and recommendations in this
manual are believed to be accurate but are represented without warranty of any kind, express or implied. Users must take
full responsibility for their applications of any Products. Reproduction of the contents of this manual, in whole or in part,
without written permission of Columbus Nova Technology Group, LLC, is prohibited
.
Advertisement
Related Manuals for NovaTracker AssetTrac AT0303KE
Summary of Contents for NovaTracker AssetTrac AT0303KE
- Page 1 August 2006 AssetTrac Owner’s Manual & Reference Guide GPRS Dual Band Asset Tracking Device (850/1900 MHz) Model: AT0303KE © by Columbus Nova Technology Group, LLC All rights reserved — The Specifications and information regarding the products in this manual are subject to change without notice. All statements, information, and recommendations in this manual are believed to be accurate but are represented without warranty of any kind, express or implied.
- Page 2 Important! Before installing, turning on or operating the NovaTrack AssetTrac™, ensure compliance with all safety regulations. Page 2...
-
Page 3: Table Of Contents
INDEX 1 - Introduction Overview 2 - Features Enhanced Features Event Modes Hardware & Software Requirements 3 - Hardware Installation Before Installing 4 – Hardware Operation Powering on the AssetTrac Understanding the LEDs Interference with Other Devices 5 - Specifications 6 –... - Page 4 Page 4...
-
Page 5: Overview

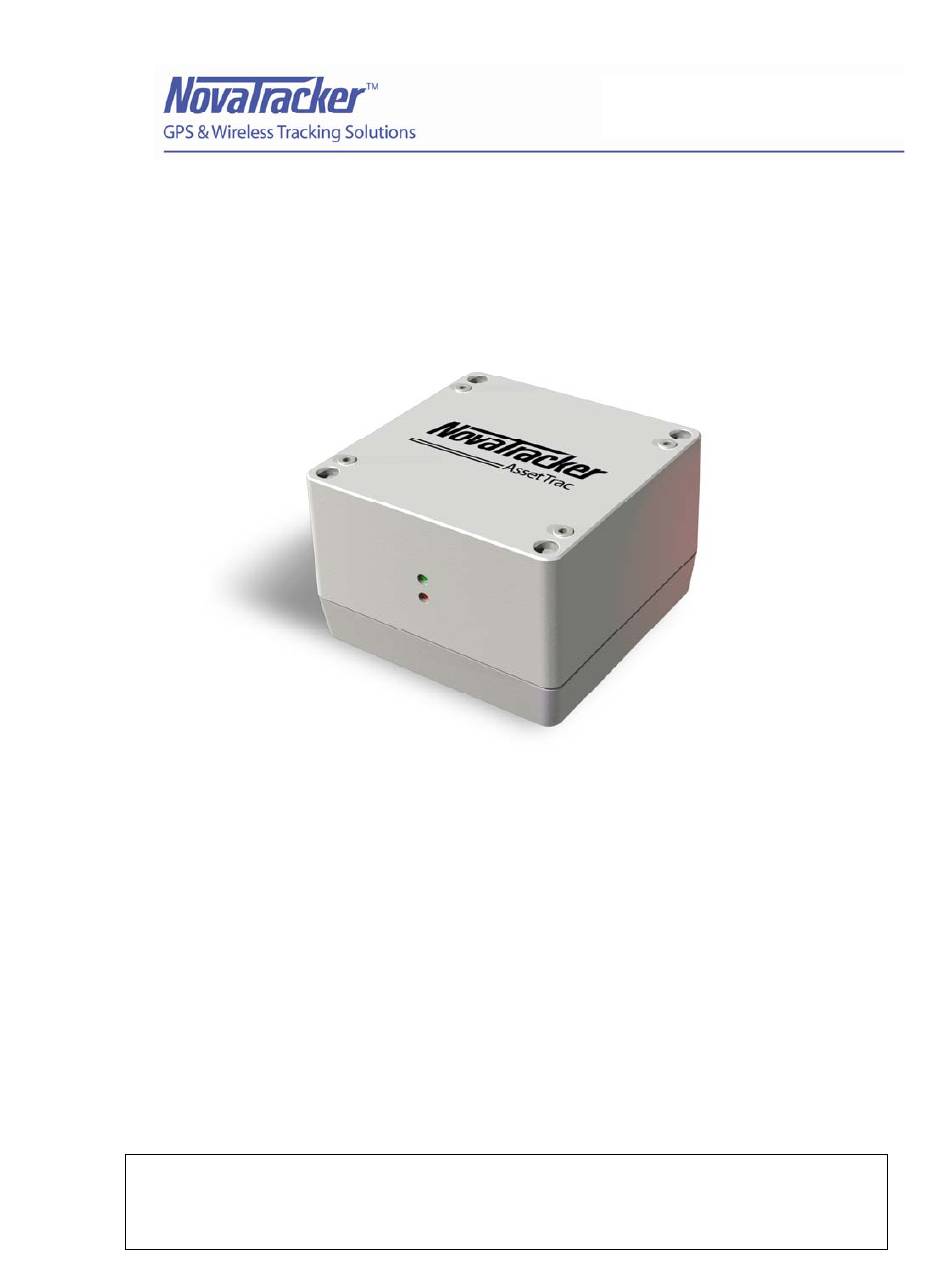

1. Introduction Overview CNTG’s AssetTrac™ provides a very low cost but powerful solution for asset tracking and other GPS (Global Positioning System) tracking applications. It is a compact, completely self-contained end-user device, which can operate on four AA batteries. It is encased in a durable, light, waterproof case and weighs about 8 ounces (without batteries) and 11.5 ounces with batteries installed. -
Page 6: Enhanced Features
2. Features • Water-resistant • Built in Motion Sensor - saves battery life; only sends position reports when the vehicle/asset begins to move. This minimizes power consumption thereby reducing communication costs • Reporting Intervals - can be set to report in various intervals •... -
Page 7: Event Modes
Event Modes • Time only Mode • Motion only Mode • Time and Motion Mode Hardware & Software requirements (for GPRS 850/1900): GSM/GPRS coverage for the USA, Canada, Mexico, and countries in Central and South America (except Brazil) is at 850/1900 MHz bands. The AssetTrac™... -
Page 8: Hardware Installation
3. Hardware Installation The AssetTrac™ can operate for approximately one week on a set of four AA batteries. This allows for simple and low-cost maintenance. Total installation time is often less than five minutes. The AssetTrac™ contains the system's primary electronic components. Always mount the main module in the vehicle's interior compartments, in a covert and secure location, ensuring that moisture, vibration and temperature extremes are minimized. -
Page 9: Understanding The Leds
4. Hardware Operation Powering on AssetTrac™: When powering on the unit for the first time, or just replacing the batteries, it is best to be outside or least where the unit can capture GPS. Place the four batteries in the correct orientation into the battery holder. -
Page 10: Technical Specifications
5: Specifications Technical Specifications Following are the technical specifications for the AssetTrac Unit Vehicle Tracking device including: • Power requirements • GSM /GPRS Modem • GPS satellite receiver • RS-232 connection • SIM card holder System Power (Battery) Supply Voltage: Four AA Batteries (not included) Battery Life: Up to 90 days (10 reports per day) - Page 11 RS-232 Connection Number of connections Baud rate 2400 - 115200 Hardware / flow control SIM Card holder GSM11.11 Compliant ISO7816 Compliant Page 11...
- Page 12 6. Accessories Mounting Bracket: AssetTrac™ onto asset item. Mounting Brackets provided to secure These devices are available from: NovaTracker 11 Commerce Drive. Lobby Floor Cranford, NJ 07016 Tel: (908) 272-0114 Fax: (908) 272-0124 * ISO (International Standards Organization), ANSI (American National Standards Institute), CDL (California Drivers License), and AAMVA (American Association of Motor Vehicle Administrators).
- Page 13 AssetTrac unit and your body. This unit) must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications made to this unit not expressly approved by NovaTracker may void the FCC authorization to operate this equipment.
- Page 14 8. Trouble Shooting Guide Problems that may occur when installing/using the AssetTrac™ unit 1: Cannot connect to GSM network Solutions: • Check SIM card; make sure it is installed correctly. • Check with your SIM card provider. 2: No GPS light (No GPS connection) Solutions: •...
- Page 15 9. Frequently asked questions Q: What is AssetTrac? A: AssetTrac is a location device that uses Global Positioning System (GPS) to acquire location and Global System for Mobile communication (GSM) wireless to report to a remote server. Q: Does the device only work with a clear view of the sky? A: Not necessarily, AssetTrac is able to function inside most vehicles, whether that is in the glove box, passenger seat, under the seat, or in the trunk.
- Page 16 Q: How does the AssetTrac power itself? A: The AssetTrac locator uses four common AA alkaline or rechargeable batteries. Q: How long do the batteries last? A: The AssetTrac’s four AA batteries lifespan is approximately one week reporting four times per day (depending on weather conditions). The life span of the unit is also dictated by how it is being used.
-
Page 17: Notes
Notes: Page 17...
