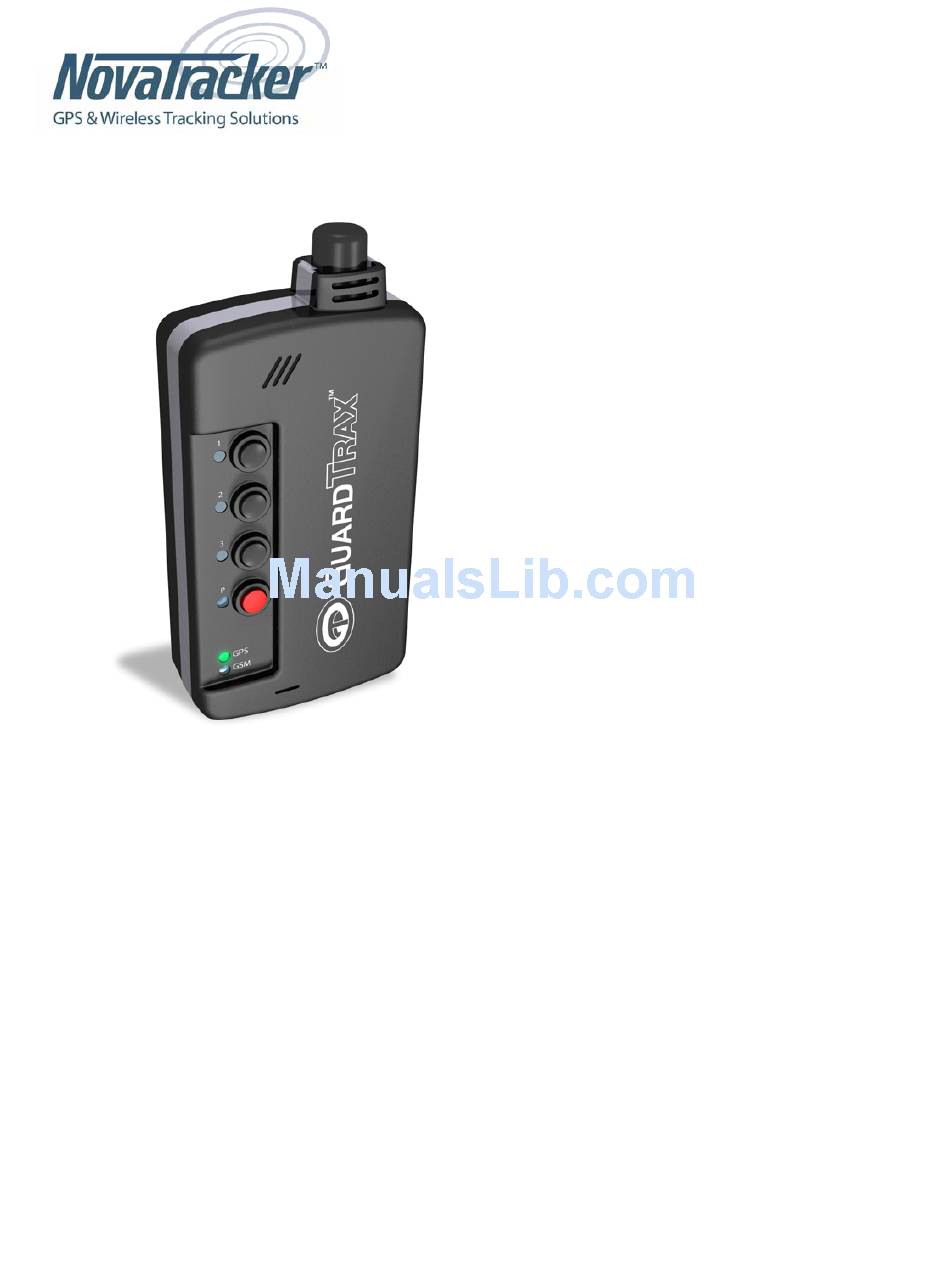

- Page 1 GUARDTRAX Personnel Tracking Solutions for the Security Industry (DoD) USER & OPERATING MANUAL NovaTracker 11 Commerce Dr Cranford, NJ 07016 908 272 0114 Doc No: GT-400-003-02DoD...
-
Page 2: Table Of Contents
GUARDTRAX USER & OPERATING MANUAL Table of Contents DESCRIPTION Features, Advantages and Benefits OPERATIONAL OVERVIEW Requirements for Operation DETAILED OPERATION Basic operation Key Sequences 3.2.1 User-key Sequence 3.2.2 Reserved-key Sequence In-coming and Out-going CALL Processing 3.3.1 In-coming CALL Sequence 3.3.2... - Page 3 GUARDTRAX USER & OPERATING MANUAL Accuracy Environmental & Electrical Specifications Power Consumption Physical Specifications Accessories Interfaces UNDERSTANDING THE LEDs KEY SEQUENCES Panic and Hot-key Events Out-going-Call-Key Events 5-Key Sequence Events NovaTracker 11 Commerce Dr Cranford, NJ 07016 908 272 0114...
- Page 4 GUARDTRAX USER & OPERATING MANUAL RADIO FREQUENCY RADIATION EXPOSURE INFORMATION: For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 0cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.
-
Page 5: Description
An integrated speaker and microphone or an optional hands-free headset provides voice communication functionality. The benefit of the GuardTrax unit to you and your security force is in its ability to determine and communicate security related events with little to no personnel interaction. - Page 6 GUARDTRAX USER & OPERATING MANUAL The GuardTrax unit can determine if: guard is in motion guard is on the assigned property guard has visited assigned station(s) accommodated through 5-key sequence codes NovaTracker 11 Commerce Dr Cranford, NJ 07016 908 272 0114...
-
Page 7: Operational Overview
Last-in-First-Out (LIFO) order when the device is back in range. The unit has the ability to store approximately 3000 data messages. For the GuardTrax unit the default key sequence is 5-keys in length. The meaning of each sequence is user defined at the server application level. -
Page 8: Detailed Operation
If the unit is in non-Motion-sleep, then shake or move it to initiate a Wake-up sequence. Refer to the GuardTrax Power-Up Sequence for a description of the power up sequence. If the unit is in Forced-sleep, resulting from a previous key entry sequence, press and hold any single key to initiate a Wake-up sequence. -
Page 9: Key Sequences
The unit initiates an out-going CALL event. An out-going CALL event will be successful only if the GuardTrax’s panic number has been pre-programmed by the user via the addressed server. A called party hanging up, or a User-key sequence of “22PPP”, or holding down the “1”... -
Page 10: Reserved-Key Sequence
GUARDTRAX USER & OPERATING MANUAL A key sequence must be completed within approximately two (2) seconds to be valid. If after entering a key sequence a new sequence is started in less than two (2) seconds, the former sequence will be voided. After two (2) seconds, a valid key sequence is confirmed by being flashed back to the user. -
Page 11: In-Coming And Out-Going Call Processing
25 and 50%; and one (1) indicates a reserve of < 25% 3.3 In-coming and Out-going CALL Processing The NovaTracker GuardTrax unit has the ability to receive (in-coming) as well as initiate (out-going) voice calls over a GSM network connection. Up to five out-going call numbers can be stored (four reserved for Reserved-key sequences and one for the Panic-key). -
Page 12: Out-Going Call Sequence
3.4 Geo-fence The GuardTrax unit can store and monitor up to 25 non-overlapping circular Geo-fence regions. The user can configure, over-the-air (OTA), all 25 circular Geo-Fence regions. A Geo-fence region is defined in miles by a center point latitude and longitude and a radius defined in miles. -
Page 13: Guardtrax Technical Specifications
GUARDTRAX USER & OPERATING MANUAL GUARDTRAX TECHNICAL SPECIFICATIONS 4.1 GSM/GPRS Support GSM/GPRS Dual Mode Support (voice, data and SMS) When out of GSM range data messages are stored. When back in GSM range stored data messages sent in LIFO order. The unit can store up to approximately 3000 data messages. -
Page 14: Accuracy
GUARDTRAX USER & OPERATING MANUAL 4.4 Accuracy Position: Five (5) to fifteen (15) meters (under optimal conditions) Utilizes standard NMEA protocol 4.5 Environmental & Electrical Specifications Operating Temperature Range: -10°C (+14 F) to +40°C (+104 F) Humidity: 5% to 95% non-condensing Vibration 0.008 g²/Hz (5 Hz to 20 Hz) -
Page 15: Accessories
GUARDTRAX USER & OPERATING MANUAL 4.8 Accessories Standard Bench top charger base with USB port for unit configuration set-up Quick release neck cord lanyard 2000 mAh re-chargeable Li-Ion battery Optional Carrying case Battery charger Extra batteries Additional lanyard Ear bud & microphone 4.9 Interfaces... -
Page 16: Understanding The Leds
GUARDTRAX USER & OPERATING MANUAL UNDERSTANDING THE LEDs The GuardTrax’s three key LEDs and two status indicators, labeled GSM and GPS, are useful in determining the state of the unit. 1. All LEDs are off for a unit in Forced (key “3”) or non-Motion sleep; light movement or pressing and holding any single key will power up the unit. -
Page 17: Key Sequences
Panic 6.2 Out-going-Call-Key Events The GuardTrax can store up to five (5) user selectable pre-programmed phone numbers. Four (4) are accessible through reserved key-sequence events and one, through the Panic-key event. By default the four (4) reserved out-going call events are accessed through a reserved five (5) key-sequence as shown below. - Page 18 GUARDTRAX USER & OPERATING MANUAL meaning in the context of any other GuardTrax event. For convenience the following table provides a suggested definition for some of the available 5-key sequences. 5 Key Sequence Sequence Definition 11111 Nothing to report/All Clear...
- Page 19 2. Increase the separation between the equipment and the receiver 3. Consult the manufacturer or supplier for help Changes or modifications made to this unit not expressly approved by NovaTracker may void the FCC authorization to operate this equipment. NovaTracker...
