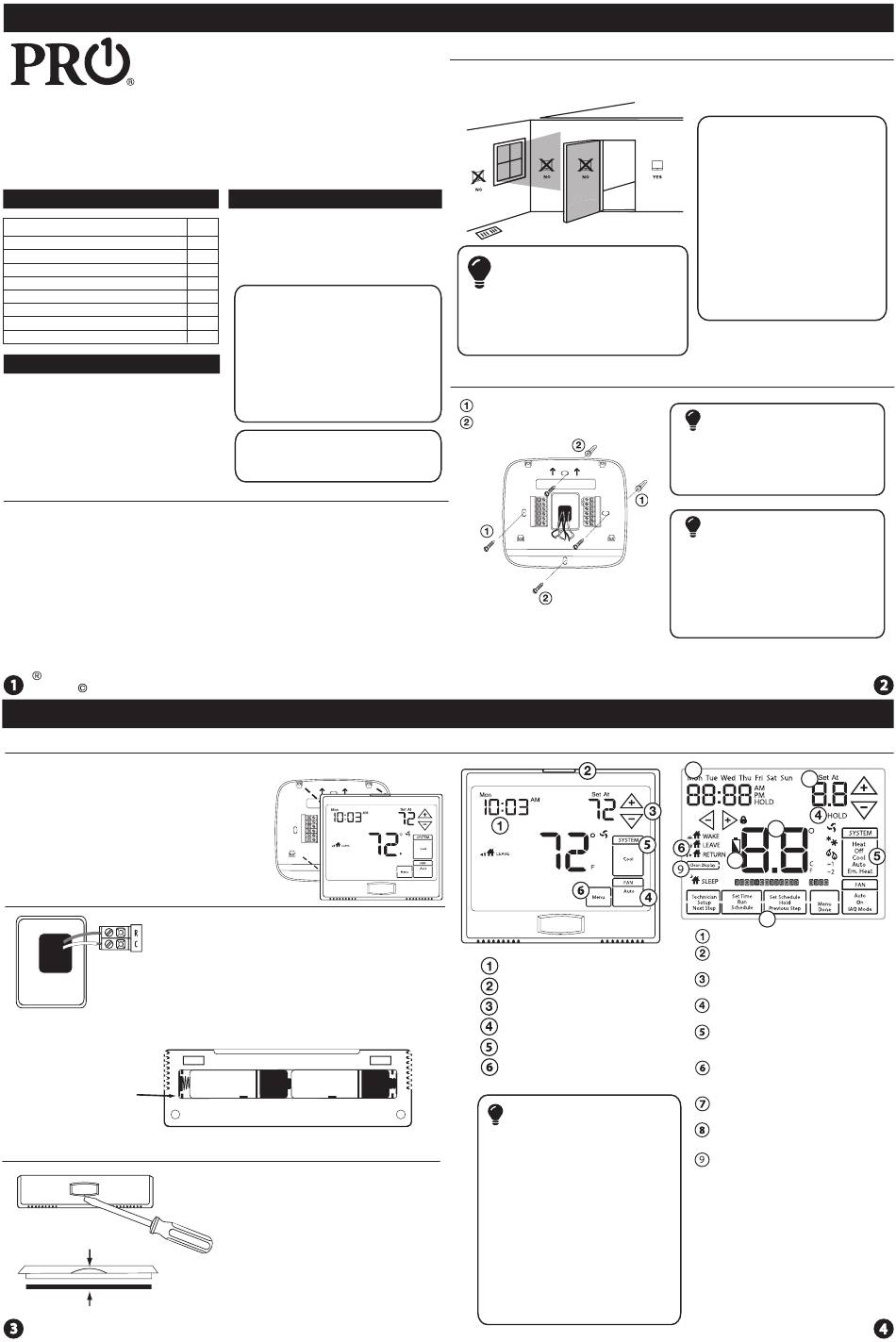

Pro1 IAQ T905 Installation Manual

Installation Manual
Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Cool Only Systems
Millivolt
Table of Contents
Installation Tips
Thermostat Quick Reference
Wiring
Wiring Diagrams
Technician Setup
Programming

Specifications

The display range of temperature ................. 41˚F to 95˚F (5˚C to 35˚C)
The control range of temperature...................44˚F to 90˚F (7˚C to 32˚C)
Load rating..............................................................1 amp per terminal, 1.5 amp
Swing (cycle rate or differential) .................... Heating is adjustable from 0.2˚ to 2.0˚
Power source .........................................................18 to 30 VAC, NEC Class II, 50/60 Hz
Operating ambient ............................................ 32˚F to +105˚F (0˚C to +41˚C)
Operating humidity .......................................... 90% non-condensing maximum
Dimensions of thermostat .............................. 4.7"W x 4.4"H x 1.1"D
U.S. Registered Trademark. Patents pending
Copyright 2018 All Rights Reserved.
Installation Tips

Mount Thermostat

Align the 4 tabs on the subbase with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.

Battery Installation

Battery installation is optional if thermostat is
hardwired (R and C terminal connected to 24V
power).
Important:
High quality alkaline batteries are recommended.
Rechargeable batteries or low quality batteries
do not guarantee a 1-year life span.
Insert 2 AA
Alkaline batteries
(included). High
quality alkaline
batteries are
recommended.
About The Badge
Use the bevel on lower ridge
Magnet in door
T905
Power Type

Battery Power

Hardwire (Common Wire)
Yes
Hardwire (Common Wire) with
Yes
Battery Backup
Yes
No
No A trained, experienced
Yes technician must install this
Yes
product.
Yes
Carefully read these
Page
instructions. You could damage
this product or cause a
2-3
hazardous condition if you fail
4
to follow these instructions.
5
6-8
Una version en español de este
9-12
manual se puede descargar en
13-16
la pagina web de la compañia.
maximum all terminals combined
Cooling is adjustable from 0.2˚ to 2.0˚
for hardwire - Battery power from
2 AA Alkaline batteries
All of our thermostats use the same
universal magnetic badge. Visit the
company website to learn more about
our free private label program.
Gently slide a screwdriver into the
bottom edge of the badge. Gently turn
the screwdriver counter clockwise. The
badge is held on by a magnet in the well
of the battery door. The badge should pry
off easily. DO NOT USE FORCE.
Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the
floor. Select an area with average temperature and good air circulation.
Installation Tip
Pick an installation location that is easy for
the user to access. The temperature of the
location should be representative of the
building.

Subbase Installation

Horizontal Mount
Vertical Mount
For vertical mount put one screw on the top
and one screw on the bottom.
For horizontal mount put one screw on the
left and one screw on the right.
Rev. 1845
Getting to know your thermostat
Temperature
LCD
Glow in the Dark Light Button
Setpoint Buttons
Fan Button
System Button
Menu Button
Important
The low battery indicator is displayed
when the AA battery power is low. If the
user fails to replace the battery within 21
days, the screen will only show the low
battery indicator but maintain all
functionality. If the user fails to replace
the batteries after an additional 21 days
(days 22-42 since first "low battery"
display) the setpoints will change to 55˚F
(Heating) and 85˚F (Cooling). If the user
adjusts the setpoint away from either of
these, it will hold for 4 hours then return
to either 55˚F or 85˚F. After day 63 the
batteries must be replaced immediately to
avoid freezing or overheating because the
thermostat will shut the unit off until the
batteries are changed.
thermostat in locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind
• In areas that do not require
• Where there are dead spots
• Where there might be
Installation Tip:
Electrical Hazard
Failure to disconnect the power before
beginning to install this product can
cause electrical shock or equipment
damage.
Mercury Notice
All of our products are mercury free.
However, if the product you are
replacing contains mercury, dispose of
it properly. Your local waste
management authority can give you
instructions on recycling and proper
disposal.
Thermostat Quick Reference
1
Temperature
Installation Tips
Do not install
the thermostat
conditioning
or drafts
(in corners or behind doors)
concealed chimneys or
pipes
3
2
8
7
Days of the week and time
Indicates the current room
temperature
Displays the user selectable
setpoint temperature
Hold is displayed when thermostat
program is permanently overridden.
System Operation Indicators: The
compressor delay is active if these are
flashing.
Programmable Time Periods:
Residential uses 4 time periods -
WAKE, RETURN, LEAVE and SLEEP.
Program Menu Options: Shows
different options during programming.
Low Battery Indicator: Replace
batteries when this indicator is shown.
Clean Display: Pressing CLEAN
DISPLAY will allow 30 seconds to
clean the display. The keys will be
inoperable during this time. CLEAN
will appear if your contractor has
programmed a filter change reminder.
Press and hold CLEAN when filter
has been replaced to reset the filter
change reminder timer.
