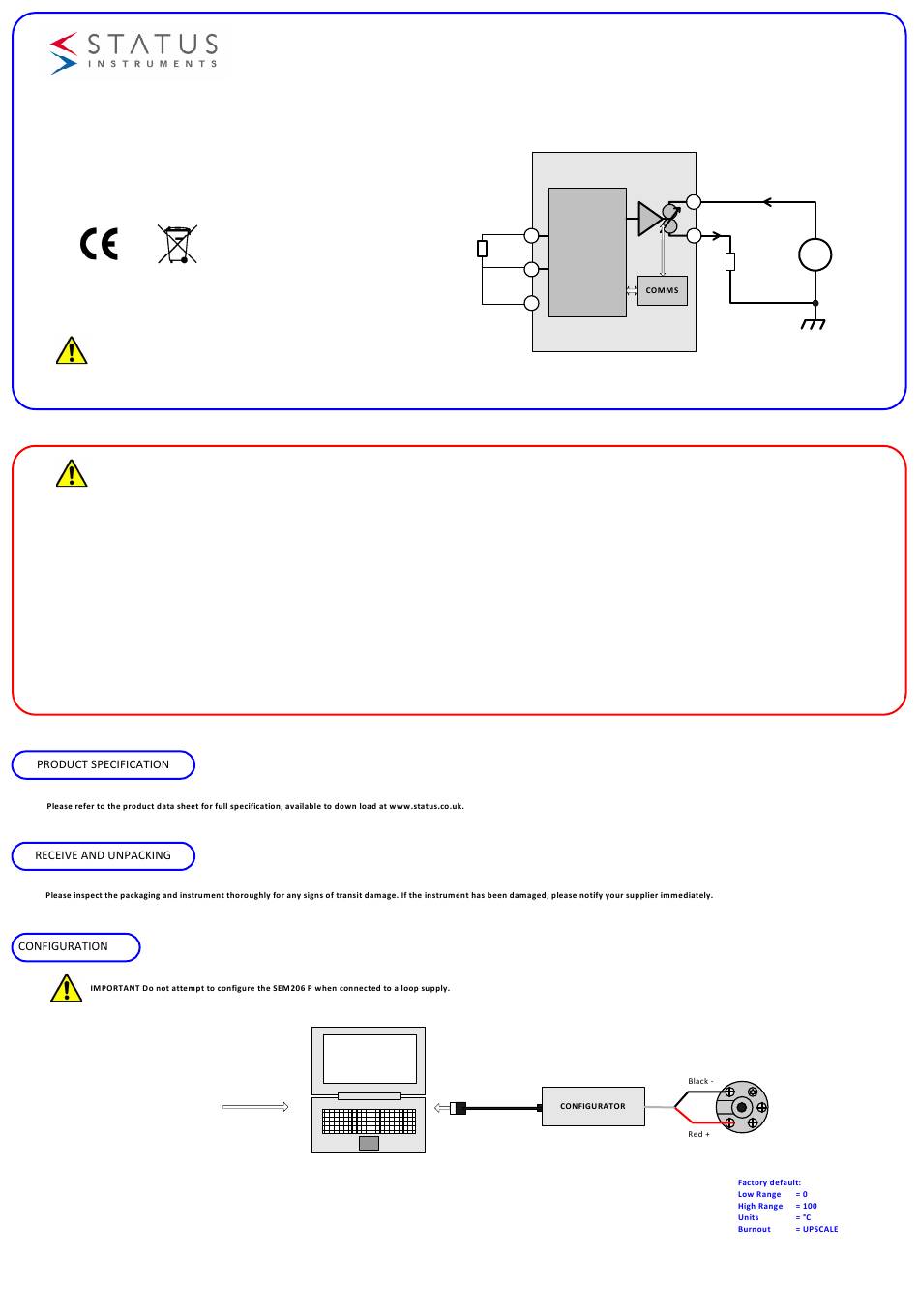

SEM206/P USER GUIDE

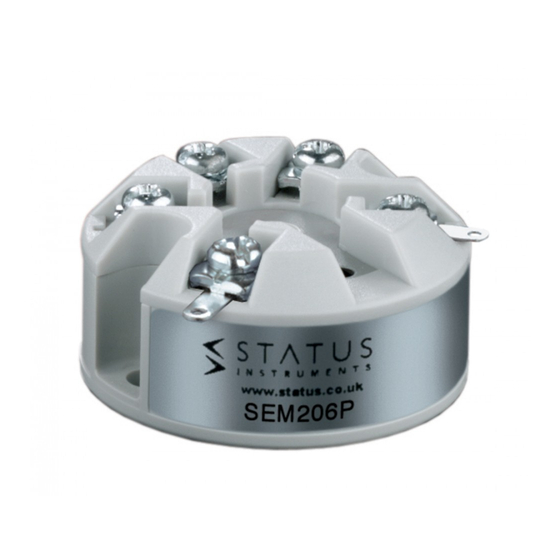

SMART HEAD MOUNTED TRANSMITTER INPUT PT100
TWO WIRE (4 to 20) mA
Important - Please read this document before any installing.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
IMPORTANT - CE & SAFETY REQUIREMENTS
Product must be mounted, inside a suitable enclosure providing environmental protection to IP65 or greater.
To maintain CE EMC requirements , input wires must be less than 3 metres.
The product contains no serviceable parts , or internal adjustments. no attempt must be made to repair this product. Faulty units must be returned to supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit) :-
Supply Voltage
Current with over voltage
Input Voltage
Ambient
USB SPEEDLINK
Download @
www.status.co.uk
The following parameter can be configured by simply entering as prompted by the software package.
· Low range
· High range
· Units (°C, °F)
· Burnout (direction of output current on sensor burnout)
D2459_01_04 CN5163 SEM206P _User_Guide
Status Instruments Ltd, Status Business Park, Gannaway Lane, Tewkesbury, Gloucestershire, UK, GL20 8FD
Web Page: www.status.co.uk
Tel : +44 (0) 1684 296818
± 30 V dc (Protected for over voltage and reverse connection)
± 100 mA
± 3 V between any terminals
Temperature (-40 to 85) °C Humidity (10 to 95) % RH (Non condensing)
COMPUTER
email : sales@status.co.uk Technical Support : support@status.co.uk
Fax: +44 (0) 1684 293746
SEM206 P
1
2
3
Input PT100
STATUS USB CONFIG-UNIT
USB CABLE
+
+
-
V
s
Loop
Load
-
2 Wire (4 to 20) mA
Output
SEM206 P
