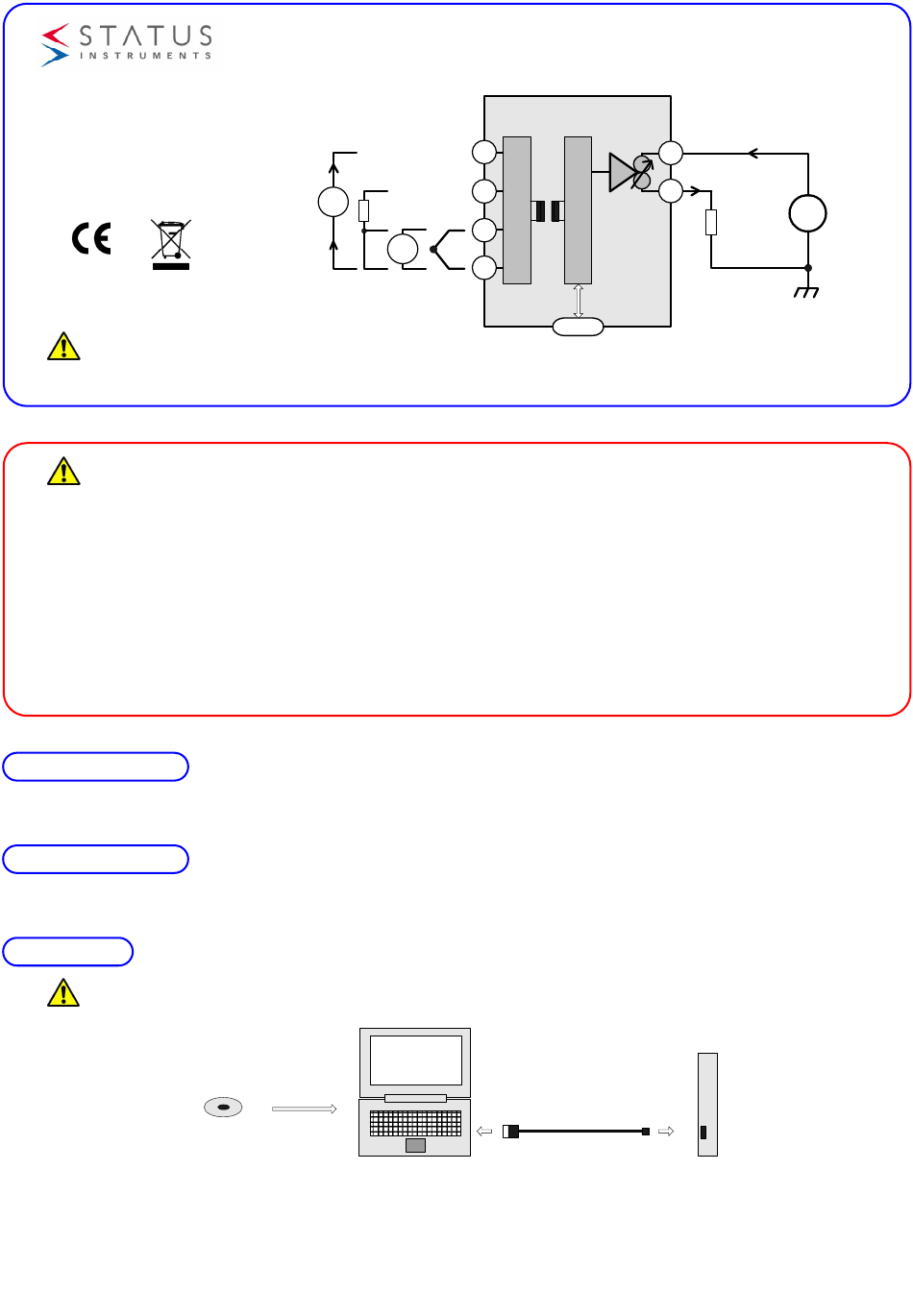

SEM1610 USER GUIDE
DIN RAIL MOUNTED TRANSMITTER
UNIVERSAL INPUT
TWO WIRE (4 to 20) mA OUTPUT
Important - Please read this document before any installing.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
IMPORTANT - CE & SAFETY REQUIREMENTS
Product must be DIN rail mounted, inside a suitable enclosure providing environmental protection to IP65 or greater.
To maintain CE EMC requirements , input wires must be less than 30 metres.
The product contains no serviceable parts , or internal adjustments. no attempt must be made to repair this product. Faulty units must be returned to supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit):-
Supply Voltage
Current with over voltage
Input Voltage
Input Current
Ambient
PRODUCT SPECIFICATION
Please refer to the product data sheet for full specification, available to down load at www.status.co.uk.
RECEIVE AND UNPACKING
Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please notify your supplier immediately.
CONFIGURATION
IMPORTANT The SEM1610 can be configured whilst connected and powered, but a portable battery powered computer must be used to avoid the effects of ground loops.
The following parameter can be configured by simply entering as prompted by the software package.
· Input type (K,J,E,N,T,R,S,mV,PT100,mA)
· Low range
· High range
· Units (°C, °F, mV, mA)
· Burnout (direction of output current on sensor burnout)
· User Adjust (option to lock out front panel adjust function)
D2441-01-05 CN5281 SEM1610 User Guide
Status Instruments Ltd, Status Business Park, Gannaway Lane, Tewkesbury, Gloucestershire, UK, GL20 8FD
Web Page: www.status.co.uk Tel : +44 (0) 1684 296818 Fax: +44 (0) 1684 293746 email : sales@status.co.uk
+
mA
-
± 30 V dc (Protected for over voltage and reverse connection)
± 200 mA
± 5 V between any terminals
± 100 mA between terminals 7 & 10
Temperature (-30 to 75) °C Humidity (10 to 95) % RH (Non condensing)
USB LINK SOFTWARE
Download @
www.status.co.uk
SEM1610
10
9
PT100
+ +
8
mV
7
- -
Universal
Input
COMPUTER
USB CABLE
+
5
4
-
Loop
Load
2 Wire (4 to 20) mA Output
USB
SEM1610
Factory default:
Input type = P
Units = °C
High Range = 100
Low Range = 0
Burnout = UPSCALE
User Adjust = ON
+
Vs
-
