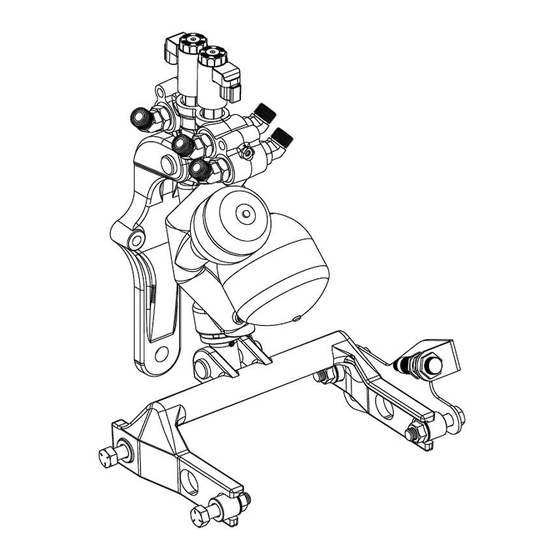

  • Page 1 Dawn Model 5036 Assembly and Operation Manual...
  • Page 2 Dawn OEM parts or wholegoods. Please familiarize yourself with the users manuals, and safety recommendations of all non Dawn OEM equipment. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...
  • Page 3 Gen 5 Pluribus Strip-Till Unit to create uniform seed bed while the uplift capability allows the user to quickly adapt to changing soil conditions. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007...

  • Page 4: Table Of Contents

    SETTING UP ROW UNIT CONTROLLER (11.1) ....12 CONTROLLER DESIGN (11.1a) ........12 HARNESS INSTALLATION (11.2) ........12 ROW-TO-ROW CABLES (11.3) ........12 TERMINATION RESISTORS (11.5) ........12 ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 5: Safety Information

    Equip yourself with all recommended safety accessories, and develop a strategy for ensuring their use when needed. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 6: Farm & Tractor First Aid Kit (5.1)

    ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 7: Tractor Tires (6.1)

    ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 8: Toolbar Tires (7.1)

    Please read and understand the users manual of any hydraulic accessories and connect pneumatic fittings according to the recommendations of the manufacturer. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 9: Hitching (8.1)

    Raise the quick-hitch until it engages users manual of that components manufacturer. the hitch pins. Make sure the hitch retainers are lowered, and engaged. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 10: Reflex Downforce System Design Overview

    WASHER, FLAT 5/8 ID 90953 CLR Z COTTER PIN 3/16 X 1.5 9324 400310 ACTUATOR, REFLEX 3 SWITCH, PROXIMITY, 91291 TURCK 90958 CONTROLLER, REFLEX ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 11: Electronics Layout (10.1)

    (if applicable). Be sure to leave enough cable to allow for the flex at the fold points and a few inches for BLACK the Field wireable connection. GREEN YELLOW ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 12: Setting Up Row Unit Controller (11.1)

    Row-to-row cables can be plugged in to either 4 pin receptacle. Ensure they are fully inserted until you hear/feel the locking tap click into place. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007...

  • Page 13: Hydraulic Components Layout

    Hydraulic Components Hydraulic Components Layout ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 14: Reflex Center Manifold Assembly (12.1)

    Many times, it is helpful to do this routing with the toolbar half unfolded to visualize the routing. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 15: Planter Hardware Installation (13.1)

    NOTE: WHEN INSTALLING ACTUATOR, INSERT open radius! UPPER CLEVIS PIN FROM THE RIGHT HAND SIDE SO COTTER PIN DOES NOT CONTACT HARNESS CABLES. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...

  • Page 16: Start Up Procedure (14.1)

    ROWS WILL BE SHOWN IN WHITE WHEN TOOLBAR RAISED right and push the “Update Setpoint” tab to program. ROWS WILL BE SHOWN IN GREEN WHEN TOOLBAR LOWERED ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007...

  • Page 17: Manual Mode (14.4)

    Applied Down Pressure for each row. To update the targeted pressure, select the psi, and touch the orange tab to program. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007...

  • Page 18: Tips Using Uplift Assist (14.5A)

    Automatic mode is default setting in normal operating conditions. ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...
  • Page 19 Safety Labels ©2018 Dawn Equipment Company, Inc. 370 N Cross Sycamore, IL 60178 USA www.dawnequipment.com Toll Free: 800.554.0007 Fax:815.899.3663...
