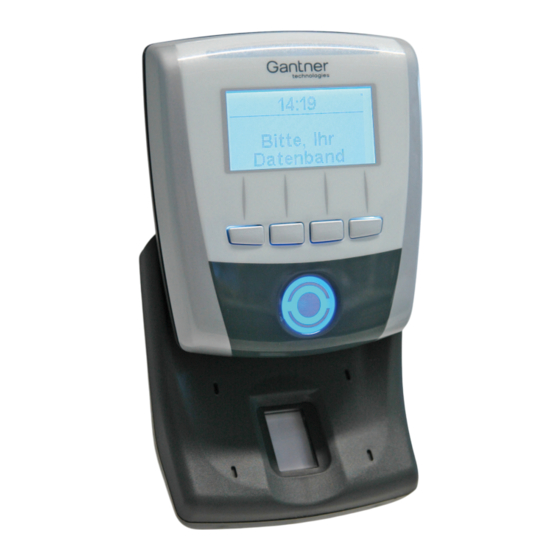

GAT Access 6100 F
Access Control Terminal with Biometry
Application
The GAT Access 6100 F with fingerprint reader GAT FR 055 is a stylish
terminal for access control in leisure facilities such as swimming pools,
spas and gyms. Identification at the terminal is by contact-free RFID data
carrier (Radio Frequency Identification).
With the fingerprint reader GAT FR 055 access control is extended by
verification with biometric data, which enables optimal protection against
misuse of personal data carriers.
Information for user guidance is displayed via a graphical monochrome
display (LCD).
Function description
The GAT Access 6100 F reads contact-free data carriers and checks
and grants authorisations. The user holds the data carrier over the round
scan field and selects the required service via the acknowledge key. The
integrated 4-segment LED display, monochrome LCD display and acoustic
signal indicate authorisation.
Via the fingerprint reader GAT FR 055 the identification of the visitors
is verified by comparing their fingerprints with the fingerprint templates
(two templates per visitor) stored on the visitor's personal data carriers.
The combination of RFID data carriers and fingerprints allows for optimal
protection against misuse of data carriers.
For capturing the fingerprints and storing them to the data carriers the GAT
Access 6100 F Enrollment Station is used.
Highlights
• Activation of turnstiles, doors etc. via relay output
• Feedback input
• User guidance via monochrome display (LCD), 4-segment LED display,
illuminated round scan field and beeper
• Secure data transmission between reader and data carrier
• Read/write frequency 13.56 MHz
• Reading MIFARE
Standard data carriers
TM
• Expandabilities for verification via fingerprint
• Opening of housing only possible with special tool
• Plug & Play installation
www.gantner.com
Order information
Description
GAT Access 6100 F
Terminal for entry control with integrated, contactless
MIFARE
reader, with black-white display (LCD)
TM
GAT FR 055
Fingerprint reader for GAT Access 6100 F, wall mounting
GAT FR 055 Weather Cover
Weather protection cover for GAT FR 055 and
GAT FR 055 FIU 3k
Accessories
Description
GAT Access 6100 F Enrollment Station
Table station for capturing fingerprints
GAT Reader WK
Tool to open the reader housing
Valid as from July 31
2013 • Technical data subject to modifications without notice!
th
DB_GAT-ACCESS6100F--BIO-EN_11.indd • PartNo.: 243526
GAT Access 6100 F
Fingerprint reader
GAT FR 055
PartNo.
776487
557433
174529
PartNo.
174327
581683
1
