VHF WIRELESS Receiver VHF-02 FCC ID:2AE6GVHF-02 USER’S MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION...
Page 2

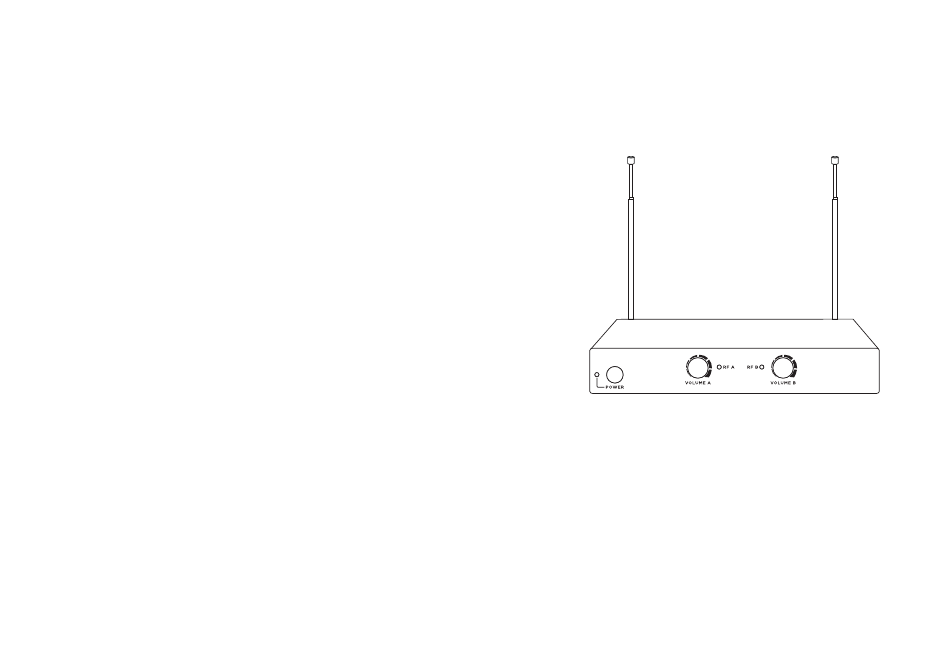

RECEIVER SPECIFICATIONS Parts Description Receiver Frequency Range: 177.6MHz 186.6MHz or 198.6MHz 204.6MHz Frequency Stability: 10PPM Sensitivity: -92dBm Frequency Response: 80Hz~12KHz Audio Output Level: 150mV(RMS) S/N: >75dB Dual Distortion: <1% Front Channel Power Supply: DC 9V 200mA Current Consumption: 150mA Transmitter Rear Frequency Range: 177.6MHz 186.6MHz or 198.6MHz 204.6MHz...
Page 3
HANDHELD MIC BELT PACK TRANSMITTER Parts Description Parts Description 1. Grille(Capsule inside) 1. Power ON/OFF/MUTE Switch 2. Power/low battery Indicator 2. Power/low battery Indicator 3. Power ON/OFF/MUTE Switch 3. MIC in jack 4. Battery Compartment/Cover 4. Battery Compartment/Cover Operation 1. Open battery cover. Install the provided 2pcs 1.5V AA batteries and then close the cover.
Page 4
: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
