  6. Operator's manual

Belshaw Brothers EZ18 Operator's Manual

Ez melt, fill and filter
Hide thumbs Also See for EZ18:
Table of Contents

Advertisement

Quick Links

EZ Melt,
Fill and Filter
Models EZ18, EZ24, AND EZ34
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ18 and is the answer not in the manual?

Questions and answers

Related Manuals for Belshaw Brothers EZ18

Summary of Contents for Belshaw Brothers EZ18

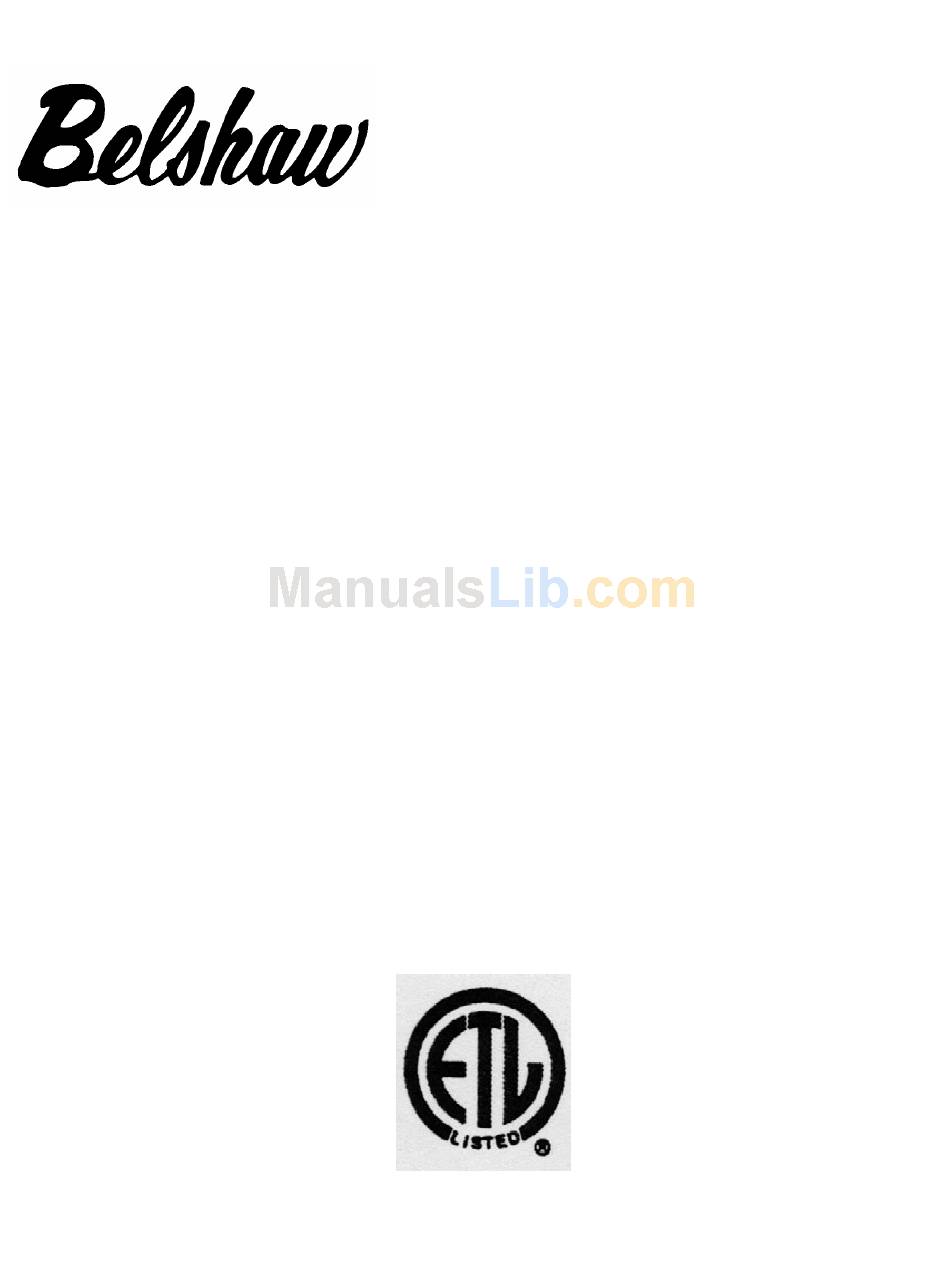

  • Page 1 EZ Melt, Fill and Filter Models EZ18, EZ24, AND EZ34 Operator’s Manual...
  • Page 3 If you accept the machine from the shipping company, you are, in effect, saying that the machine is in good condition, and you must pay for the machine. Belshaw cannot pay for shipping damage, because the freight company has accepted the machine from Belshaw in good condition, and is responsible for its safe delivery.

  • Page 5: Table Of Contents

    EZ24-2001 Shortening Melter Assembly (240V) EZ34-2000 Shortening Melter Assembly (120V) EZ34-2001 Shortening Melter Assembly (240V) EZ24/34-1000 Heater Head Assembly Appendix Wiring Diagram (EZ18-4002) - 120V, 50/60 Hz, 1 Ph Wiring Diagram (EZ18-4003) - 208/240V, 50/60 Hz, 1 Ph Belshaw Bros., Inc. 1750 22 5425 EZ Melt Model EZ18, EZ24, EZ34 Ave.
  • Page 6 EZ24-2001 Shortening Melter Assembly (240V) 5-5. EZ34-2000 Shortening Melter Assembly (120V) 5-6. EZ34-2001 Shortening Melter Assembly (240V) EZ24/34-1000 Heater Head Assembly Belshaw Bros., Inc. 1750 22 5425 MN-1316EN Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...
  • Page 7 The EZ Melt, Fill and Filter models EZ18, EZ24, and EZ34 are designed to be used with Belshaw fryers. It performs four functions: It melts shortening It holds shortening It supplies shortening to the fryer kettle It filters used shortening for re-use It is not designed to perform any other functions.

  • Page 9: Installation

    Installation To help familiarize you with the major parts of your EZ Melt model EZ18, EZ24, or EZ34, please study the photographs below. handle heater head filter assembly kettle casters foot pedal Figure 1-1. Front View. Belshaw Bros., Inc. 1750 22 Ave.

  • Page 10: Top View, Heater Head

    Belshaw Bros., Inc. 1750 22 5425 MN-1316EN Figure 1-2. Side View. Figure 1-3. Top View, Heater Head. Ave. S. Seattle, WA 98144 hose connector filter assembly kettle cube melter heating element kettle Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 11: Elements & Kettle

    Bleeder Pickup tube Heating element kettle Belshaw Bros., Inc. 1750 22 5425 EZ Melt Model EZ18, EZ24, EZ34 Figure 1-4. Heater head Figure 1-5. Elements and kettle. Ave. S. Seattle, WA 98144 MN-1316EN Pump switch with pilot light Phone 206-322-5474...
  • Page 12 Make sure that the power requirements of the EZ Melt, shown on the data plate, match your power source. Belshaw Bros., Inc. 1750 22 5425 MN-1316EN Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 13: Operation

    Kettle. Belshaw Bros., Inc. 1750 22 5425 EZ Melt Model EZ18, EZ24, EZ34 Figure 2-3. Installing the Cube Melter. Position the EZ Melt near the fryer. Install the supply hose. Follow these steps: a. Attach the hose to the pump outlet by b.

  • Page 14: Positioning The Filter Frame For Melting

    (See Figure 2-5.) Melting. cube melter. Let one cube melt and be pumped out before adding another cube. Do not overload the EZ Melt. Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 15: Filtering

    Belshaw Bros., Inc. 1750 22 5425 EZ Melt Model EZ18, EZ24, EZ34 Position the shortening filter assembly on the EZ Melt kettle. The edge of the kettle has one or two sets of holes in it. Use the set of holes that is farther from the heater head.

  • Page 16: Rinsing Hose

    Invert the filter assembly over a sink or Ave. S. Seattle, WA 98144 WARNING touch. the frame. garbage can and shake the sediment off of it. DO NOT rinse the filter. Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...
  • Page 17 Put the filter assembly back on the EZ Melt. To order replacement filters for your EZ Melt, call Belshaw. Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 18: Cleaning

    See Figure 3-1. Figure 3-1. Removing the Heater Head. (Place heater head as shown above so no damage is done to the element.) Ave. S. Seattle, WA 98144 WARNING Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...
  • Page 19 Moisture on parts causes hot shortening to spatter, which may cause serious injury. 16. Re-assemble the EZ Melt. Belshaw Bros., Inc. 1750 22 5425 EZ Melt Model EZ18, EZ24, EZ34 Ave. S. Seattle, WA 98144 MN-1316EN Phone 206-322-5474 Fax 206-322-...

  • Page 20: Troubleshooting

    Following is a troubleshooting chart to help you identify and solve some basic problems. Disconnect the machine from the power source before disassembling, repairing, or Ave. S. Seattle, WA 98144 WARNING wiring. Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...
  • Page 21 The circuit breaker has been tripped. Belshaw Bros., Inc. 1750 22 5425 EZ Melt Model EZ18, EZ24, EZ34 What To Do Straighten the hose. To avoid being burned, before doing any of the following, turn off the EZ Melt and allow the shortening to cool.
  • Page 22 This page has been left blank intentionally. Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 MN-1316EN EZ Melt Model EZ18, EZ24, EZ34...

  • Page 23: Parts Lists

    Parts Lists The following pages contain current lists of the parts that make up the EZ18, EZ24, and EZ34 models. Each list refers to an exploded-view assembly drawing. You can use the parts lists and assembly drawings as a reference to order replacement parts.

  • Page 24: Ez18-2000 Shortening Melter Assembly (120V)

    PARTS LIST 5-1 EZ18-2000 SHORTENING MELTER ASSEMBLY (120V) BILL OF MATERIAL ITEM PART NO. DESCRIPTION EZ18-0500 Kettle Frame, WLDT EZ18-0502 Kettle, WLDT EZ18-0503 Filter Holder, WLDT EZ18-0504 Cube Melter, Assy. EZ24-1000 Motor Enclosure, Assy. (120v) EZ6-0507 Tube Assy, Back Supply EZ6-0510 Tube Assy, Front Assy.

  • Page 25: Ez18-2000 Shortening Melter Assembly (120V)

    FIGURE 5-1 EZ18-2000 SHORTENING MELTER ASSEMBLY (120V) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 26: Ez18-2001 Shortening Melter Assembly (240V)

    PARTS LIST 5-2 EZ18-2001 SHORTENING MELTER ASSEMBLY (240V) BILL OF MATERIAL ITEM PART NO. DESCRIPTION EZ18-0500 Kettle Frame, WLDT EZ18-0502 Kettle, WLDT EZ18-0503 Filter Holder, WLDT EZ18-0504 Cube Melter, Assy. EZ24-1001 Motor Enclosure, Assy. (240v) EZ6-0507 Tube Assy, Back Supply EZ6-0510 Tube Assy, Front Assy.

  • Page 27: Ez18-2001 Shortening Melter Assembly (240V)

    FIGURE 5-2 EZ18-2001 SHORTENING MELTER ASSEMBLY (240V) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 28: Ez24-2000 Shortening Melter Assembly (120V)

    Label: Caution; Hot 0158 Data Plate 990-0651 Wire Holder, ½” Belshaw Bros., Inc. 1750 22 5425 MN-1316EN FASTENERS ITEM QTY. DESCRIPTION Ave. S. Seattle, WA 98144 ¼-20 X ¼ Tek Screw Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 29: Ez24-2000 Shortening Melter Assembly (120V)

    FIGURE 5-3 EZ24-2000 SHORTENING MELTER ASSEMBLY (120V) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 30: Ez24-2001 Shortening Melter Assembly (240V)

    LABEL: CAUTION; HOT 0158 DATA PLATE 990-0651 WIRE HOLDER, ½” Belshaw Bros., Inc. 1750 22 5425 MN-1316EN Ave. S. Seattle, WA 98144 FASTENERS ITEM QTY. DESCRIPTION ¼-20 X ¼ TEK SCREW Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 31: Ez24-2001 Shortening Melter Assembly (240V)

    FIGURE 5-4 EZ24-2001 SHORTENING MELTER ASSEMBLY (240V) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 32: Ez34-2000 Shortening Melter Assembly (120V)

    Label: Caution; Hot 0158 Data Plate 990-0651 Wire Holder, ½” Belshaw Bros., Inc. 1750 22 5425 MN-1316EN FASTENERS ITEM QTY. DESCRIPTION Ave. S. Seattle, WA 98144 ¼-20 X ¼ Tek Screw Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 33: Ez34-2000 Shortening Melter Assembly (120V)

    FIGURE 5-5 EZ34-2000 SHORTENING MELTER ASSEMBLY (120V) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 34: Ez34-2001 Shortening Melter Assembly (240V)

    Label: Caution; Hot 0158 Data Plate 990-0651 Wire Holder, ½” Belshaw Bros., Inc. 1750 22 5425 MN-1316EN FASTENERS ITEM QTY. DESCRIPTION Ave. S. Seattle, WA 98144 ¼-20 X ¼ Tek Screw Phone 206-322-5474 Fax 206-322- EZ Melt Model EZ18, EZ24, EZ34...

  • Page 35: Ez34-2001 Shortening Melter Assembly (240V)

    FIGURE 5-6 EZ34-2001 SHORTENING MELTER ASSEMBLY (240V) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 36: Ez24/34-1000 Heater Head Assembly

    FIGURE 5-7 EZ24/34-1000 HEATER HEAD ASSEMBLY Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 MN-1316EN EZ Melt Model EZ18, EZ24, EZ34...

  • Page 37: Ez24/34-1000 Heater Head Assembly

    PARTS LIST 5-7 EZ24/34-1000 HEATER HEAD ASSEMBLY Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...

  • Page 38: Wiring Diagrams

    Wiring Diagrams This section contains the following wiring diagrams: EZ18-4002 (120V, 50/60 Hz, 1 Ph) EZ18-4003 (208/240V, 50/60 Hz, 1 Ph) Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 MN-1316EN EZ Melt Model EZ18, EZ24, EZ34...
  • Page 39 Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 EZ Melt Model EZ18, EZ24, EZ34 MN-1316EN...
  • Page 40 Belshaw Bros., Inc. 1750 22 Ave. S. Seattle, WA 98144 Phone 206-322-5474 Fax 206-322- 5425 MN-1316EN EZ Melt Model EZ18, EZ24, EZ34...
