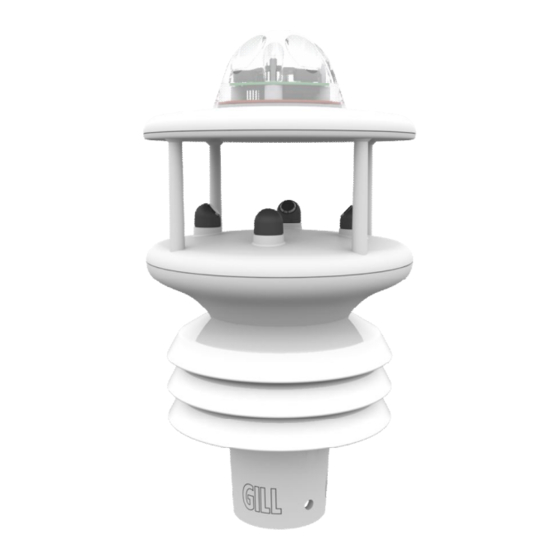

User Manual
Compact Weather Stations
(Parts 1957-0X00-60-000)
Doc No: 1957-PS-001
Issue 1
GMX200
GMX600
Gill Instruments Limited
Saltmarsh Park, 67 Gosport Street, Lymington,
Hampshire, SO41 9EG, UK
Tel: +44 1590 613500, Fax: +44 1590 613555
Email:
anem@gillinstruments.com
Website:
www.gillinstruments.com

Advertisement

Table of Contents
loading

Related Manuals for Gill MaxiMet GMX200

Summary of Contents for Gill MaxiMet GMX200

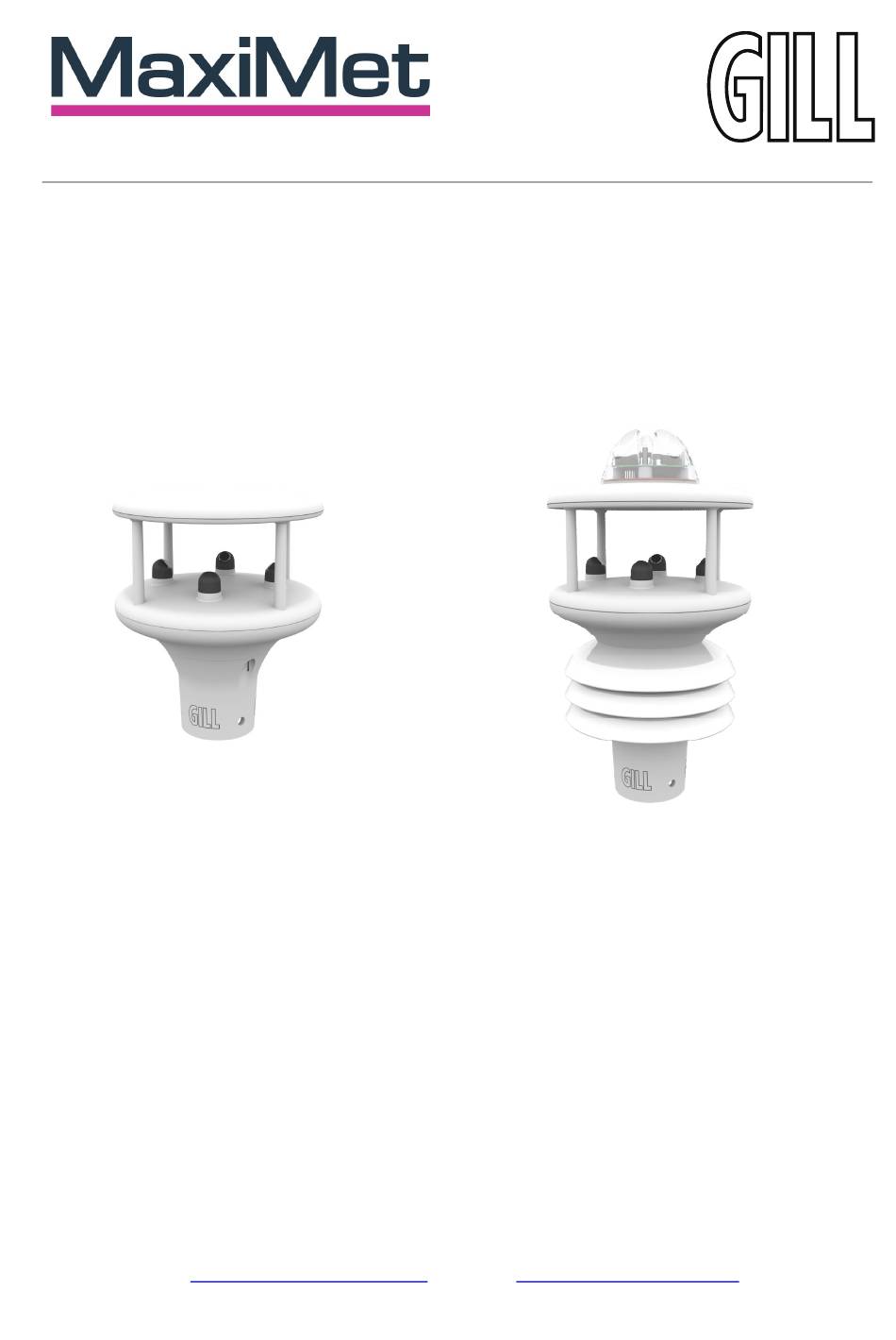

  • Page 1 User Manual Compact Weather Stations (Parts 1957-0X00-60-000) Doc No: 1957-PS-001 Issue 1 GMX200 GMX600 Gill Instruments Limited Saltmarsh Park, 67 Gosport Street, Lymington, Hampshire, SO41 9EG, UK Tel: +44 1590 613500, Fax: +44 1590 613555 Email: anem@gillinstruments.com Website: www.gillinstruments.com...
