User's Manual
2001. 2.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-EPHONE and is the answer not in the manual?

Questions and answers

Related Manuals for Cyberbank PC-EPHONE

Summary of Contents for Cyberbank PC-EPHONE

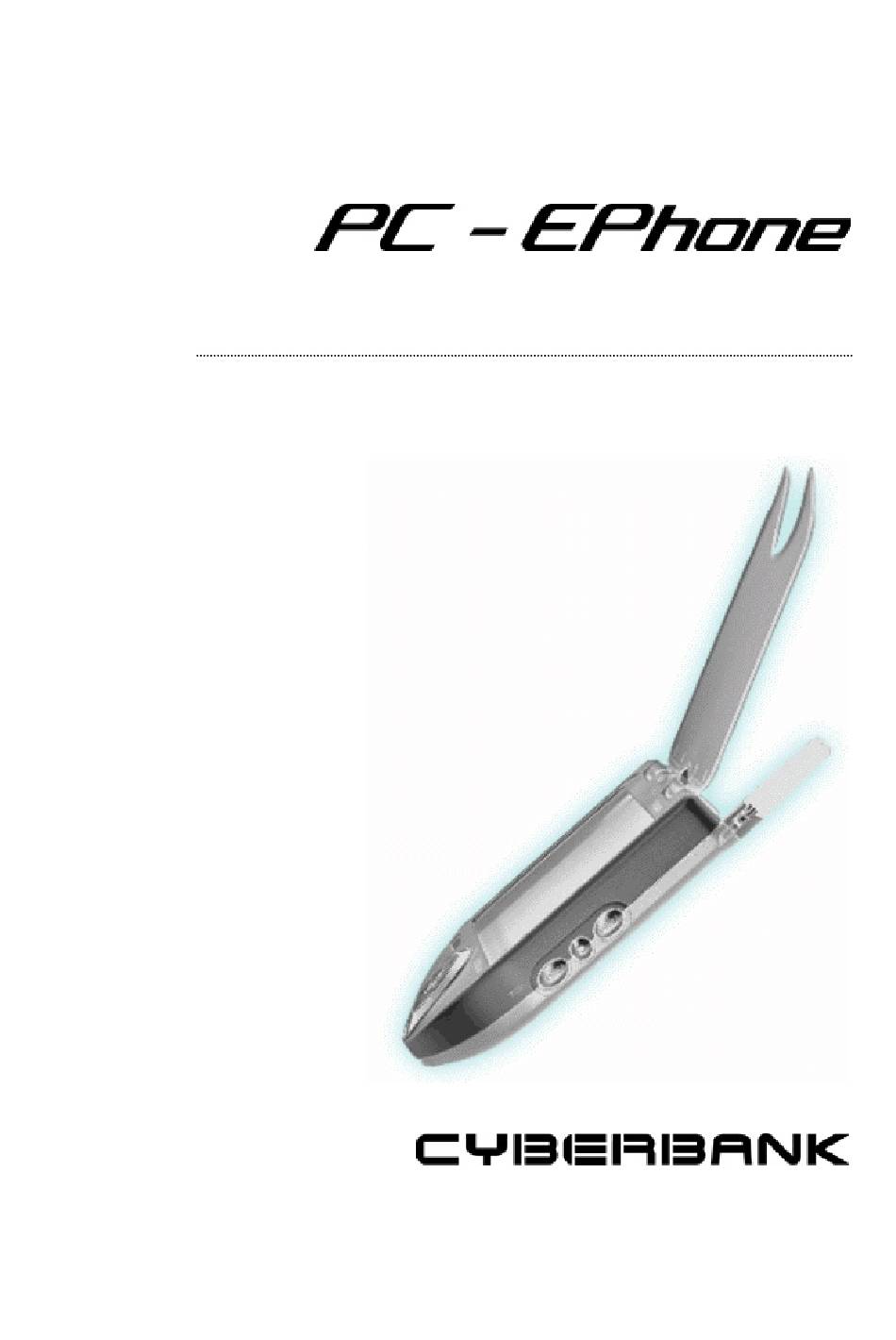

  • Page 1 User’s Manual 2001. 2.
  • Page 3 No part of this document may be photocopied, reproduced, adapted, or translated in any form without the prior written consent of Cyberbank Corp. The programs that are used in PC-EPhone are copyrighted and all rights are reserved. Reproduction, adaptation, or translation of those programs without prior written permission of Cyberbank Corp.

  • Page 4: Table Of Contents

    Connecting your desktop PC with PC-EPhone......11 How to Synchronize data between your desktop PC and PC-EPhone...15 How to copy files between your desktop PC and PC-EPhone ..18 How to Backup/Restore PC-EPhone Data........19 Installing/Uninstalling Programs using ActiveSync ..... 20...
  • Page 5 CYBERBANK Accessories............2 CF (CompactFlash) Memory Card ..........3 Chapter 9 Tips & Troubleshooting Maintaining your PC-EPhone in its Best Condition ....... 2 Reset your PC-EPhone ..............3 Backup and Restore Data ............5 Troubleshoot basic problems with PC-EPhone......6 Tips for better using PC-EPhone ..........
  • Page 6 Chapter 10 Support and Service Web Sites..................1 Service Center ................1 Purchasing Accessories ............... 2 Appendix A. Using the Character Recognizer B. Hardware Specifications C. Glossary D. Warranty Table of Contents Page iii...

  • Page 7: Chapter 1 About Pc-Ephone

    CYBERBANK Corp. In order to stand out from other products in the world, PC-EPhone has installed mobile phone modules (including CDMA, AMPS) in the Personal Data Assistant(PDA) for voice calls and wireless Internet communications, anywhere and anyplace.
  • Page 8 Describes how to use this manual and gives an overview of the contents in each chapter. Conventions Describes Notice, Reference, Warning. Programs installed in PC-EPhone Introduces the applications built in PC-EPhone. Finding Information Introduces web sites providing information related to Windows CE and PC-EPhone. FCC RF Exposure Information Page 1-2 Chapter 1...

  • Page 9: Product Components

    Product Components After purchasing your PC-EPhone, check to see if all the components shown below are included. If there is a defect in the product or a missing component, please contact the place of purchase immediately. Cradle PC-EPhone AC adapter...

  • Page 10: Using The Manual

    II. Using the Manual This User’s Manual will give you quick and effective guides to using your PC-EPhone more efficiently and conveniently. This User’s Manual consists of the following : Chapter 1 About PC-EPhone Describes PC-EPhone components and introduces Internet sites and services where you can get information related to your PC-EPhone.

  • Page 11: Chapter 7 Applications

    Chapter 9 Tips and Troubleshooting Introduces tips and troubleshooting methods that will come in handy when using PC-EPhone. Chapter 10 Support and Service Gives information on web sites with PC-EPhone related information, and on customer support. About PC-EPhone Page 1-5...

  • Page 12: Conventions

    This User’s Manual uses the following conventions that will help you find and understand the information easily. Indicates that failure to follow directions could result in data loss or damage to equipment. Indicates that failure to follow directions could result in moderate losses. Indicates helpful information for using your PC-EPhone. Page 1-6 Chapter 1...

  • Page 13: Programs Installed In Pc-Ephone

    IV. Programs Installed in PC-EPhone The following programs are provided with your PC-EPhone. Programs installed in ROM (Read Only Memory) You may not voluntarily uninstall and install programs in your PC-EPhone’s ROM. Memo Enables you to create simple written memos using Handwriting Recognizer program.

  • Page 14: Microsoft Pocket Word

    Backup & Restore Enables you to backup or restore the data in your PC-EPhone’s RAM (file, DB, registry) to and from CF Cards and IPSM. Short Message Service(SMS) Enables you to send and receive short messages to and from other mobile phones.
  • Page 15 Is S/W needed in synchronizing Outlook 2000 on the desktop PC and PIMS data (PC-EPhone Calendar, PC-EPhone Tasks, PC-EPhone Contacts) of PC-EPhone using ActiveSync. PDF Viewer (Ansyr Primer) Enables you to view documents in PDF form on your PC-EPhone. AvantGo Client Enable you to receive AvantGo Channel services. Dictionary(Korean/English, English/Korean) (Korean Version Only) Is installed from PC-EPhone Software CD.

  • Page 16: Finding Information (Pc-Ephone Related Information)

    V. Finding Information (PC-EPhone related information) When you need to find other information related to your PC-EPhone, refer to the following : Synchronizing Data See Microsoft ActiveSync Help installed on your Desktop PC or your PC-EPhone User’s Manual Unfamiliar Technical Terminology...

  • Page 17: Fcc Rf Exposure Information

    PC-EPhone, or result in violation of FCC regulations. Do not use your PC-EPhone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

  • Page 18: Getting Started

    Chapter 2 Getting Started This chapter provides you with the basic information you need to use your PC-EPhone. This chapter includes information on: Product Hardware Features Describes PC-EPhone’s features and tips on usage. Using your PC-EPhone for the first time Describes the steps you must take when using PC-EPhone for the first time.

  • Page 19: Product Hardware Features

    Product Hardware Features PC-EPhone 1) Front panel and Bottom edge ⑧ ⑪ ④ ① ② ③ ⑥ ⑫ ⑤ ⑨ ⑩ ⑦ Voice Call Speaker Voice comes out when the other speaks. LCD Display Screen With a 640 x 480 resolution and a 256-color, 4” color TFT LCD, the screen displays when applications are actually run.
  • Page 20 Does not operate when the headset jack is connected. Navigation button The four way direction buttons located on the bottom part of your PC-EPhone allows you to quickly and conveniently move the cursor (up/down/left/right) when selecting an icon or editing a document.
  • Page 21 ① Power button Used to turn your PC-EPhone ON and OFF. The PC-EPhone is said to be in a Sleep Mode status when it is turned off. In Sleep Mode, all PC-EPhone functions, except for the phone function, are suspended and only the least amount of power needed to preserve data is supplied.
  • Page 22 Used to run the recording program or control recording functions. More specifically, when the PC-EPhone is turned on you can run the recording program by pressing this button, and another press will start recording. Also, you can stop recording by pressing this button while recording.
  • Page 23 PC-EPhone to a LAN. Infrared Port A communication window that enables infrared communications. Infrared Port allows you to connect your PC-EPhone to your desktop PC via infrared beam. For more information, see “Chapter 4 Connecting to a desktop PC”. Headset Jack The Headset jack is used to connect the headset, which has the functions of earphone and microphone.
  • Page 24 Damages to this pin may result in a defect in charging power to your PC-EPhone and in connection to a desktop PC. Hook Is used to tie a string around in order to make your PC-EPhone easier to carry around. Battery Is the main battery that supplies power to your PC-EPhone.
  • Page 25 Backup Battery becomes fully drained and data stored in the RAM will be lost. To turn off your PC-EPhone, do not switch the Battery Lock downward. Use the POWER button on the right side of your PC- EPhone.

  • Page 26: Chapter 8 Accessories

    Accessories 1) Cradle (charger and desktop connector) The Cradle connects your PC-EPhone to your PC partner and also takes on the role of charging the main battery. Connecting to a desktop PC is accomplished via serial cable, which is attached to the cradle, Charging is done by connecting a power source to supply power to the cradle.
  • Page 27 3) Stylus You can use the stylus in much the same way you would use a mouse on the desktop PC. Use it to run programs and to press the Reset button. Do not touch the screen with any other sharp objects other than the enclosed stylus.
  • Page 28 Dropping your PC-EPhone and creating a strong impact or using excessive force on it may result in damage or malfunctioning. Getting your PC-EPhone wet in the rain or spilling some beverage may result in a break down. Do not voluntarily disassemble, repair, or assemble your PC-EPhone. If it needs to be repaired, contact the customer support center.

  • Page 29: Using Your Pc-Ephone For The First Time

    The Main Battery may be drained during the transportation from the factory to the consumer; therefore you should connect AC power to the cradle and place your PC- EPhone in it in order to charge the battery when using your PC-EPhone for the first time. Check the following operations of your PC-EPhone 1.

  • Page 30: Turning Your Pc-Ephone On/Off

    For more information, see the Setting PC-EPhone section in Chapter 3. III. Turning your PC-EPhone ON/OFF By using the Power button on the right side of your PC-EPhone, you can easily turn off or restart your PC-EPhone. When you press the Power button while using your PC-EPhone, all current operations, except for data communication (Internet use), are preserved as their current conditions even when your PC-EPhone is suspended.

  • Page 31: How To Input Data

    V. How to Input Data Your PC-EPhone allows you to input data in the following three ways, instead of providing a separate common keyboard. Inputting data using the Touch Panel keyboard Inputting data using Diopen Recording voice messages with the recorder...
  • Page 32 1) Diopen Handwriting Recognizer mode Diopen’s default mode is the Handwriting Recognizer mode. If Diopen is currently in the Keyboard mode or Screen Recognizer mode, tap the handwriting recognizer mode button. Alphabet Letter input You must write in the Alphabet writing area. Lower case letters are set as default. To enter capital letters, you must first input the “Case change gesture”...
  • Page 33 Tap the button and the following symbols keyboard appears. The symbols keyboard automatically disappears, by default, after inputting one character. Tap the key to consecutively input symbols. When you are finished entering symbols, tap the key or key to return to the writing screen. Gesture input Gestures can be used to input commonly used symbols and edit input text, as well as for Upper case mode change and Hot Key input (see Hot Key input).
  • Page 34 Control A beep sounds when you input the Control gesture. You can input in the same way in all handwriting recognizer modes. You can input all hot keys supported in each application. If you input the “Upper case mode change gesture”...
  • Page 35 It is changed back to the Latin1 Basic Letter keyboard after you enter one character. Also, if you want to return to the Latin1 Basic Letter keyboard without entering a character, tap the key. Numeric Letter keyboard Tap the key and the following Numeric letter keyboard appears. Tap the key on the numeric keyboard and it will disappear.
  • Page 36 4) Using Diopen Screen Recognizer To convert to the screen recognizer mode, tap the button in Diopen Handwriting Recognizer mode, or tap the button in the Keyboard mode, and the following Diopen toolbar appears. “Capital change gesture” is activated in English letter input mode. When tapping this button , the another Diopen toolbar appears as shown below.
  • Page 37 Vertical division In the vertical division mode, the left side of the division mark is for writing the letter of Alphabet and the right side of the division mark is for writing the numbers. Tap “Capital change gesture” Case Change and you can input the upper and lower case letters.
  • Page 38 Select Numeral recognizer mode Convert entire area Select Symbol recognizer mode 5) Diopen User Settings When you tap the settings button in each Diopen mode, the following Diopen Options dialog box appears. Delay Time When entering a symbol, if the next stroke is not made within the Delay Time, Diopen proceeds with the recognition of the previous strokes.
  • Page 39 You can capture and effectively manage ideas of thoughts that suddenly strike you by saving them in voice message on your PC-EPhone. You can Run, Start Recording, Stop the Recorder program just by using the Record button on the right side of your PC- EPhone.

  • Page 40: Chapter 3 Pc-Ephone Customizing And Maintenance

    Chapter 3 PC-EPhone Customizing & Maintenance This chapter will provide you with information on how to optimize your PC-EPhone use by setting general preferences. It will also introduce how to manage the power and batteries, giving you tips on how to extend battery usage time and protect important data.
  • Page 41 Setting PC-EPhone Preferences Set and adjust basic system settings before using your PC-EPhone to customize it just for you. On the Start menu, point to Settings, tap Control Panel, and the following display will appear. Double-tap on the icon of your selection. A tap on the OK button on the corresponding settings applies all settings changes.
  • Page 42 2) PC Connection : Set options for establishing a connection to your desktop PC. PC-EPhone’s Baud Rate is set as 19200 by default. You can also change this setting after the first synchronization through ActiveSync. For example, Serial 115200 is recommended in Korea.
  • Page 43 3) Backlight : For battery conservation, the backlight can be set to go off after the preset time when the your PC-EPhone is not in use. When you resume work on your PC- EPhone, the backlight automatically turns back on.
  • Page 44 Network 1) Adapters : To change the network driver settings, tap the Properties button. PC-EPhone is set as NE20001 by default. If you want to change a Network Driver other than NE20001, select the one you want and press the Properties button to set the preference for that driver.
  • Page 45 2) Notes : You can add any additional information. Password You can set password requirements for security while using system. You can set a new password by inputing a password in the Password and Confirm Password. However, password is only to consist of 4 digit Numerals. If you forget your password, you will have to perform a Hard Reset.
