Door-Gard COMMAND AND CONTROL SERIES Programming Manual

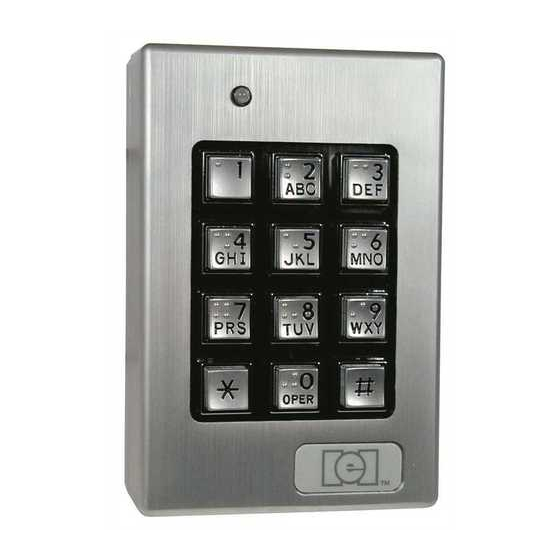

DOOR-GARD COMMAND AND CONTROL SERIES keypads offer field proven reliability and cost effective solutions anywhere DOOR-GARD COMMAND AND CONTROL SERIES
limited control or access is desired. Designed for individual control of up to four devices, Door-Gard Command and Control
Series keypads are the perfect choice for controlling electric locking devices, security
systems, automatic operators or machinery. Door-Gards accept power from a 12 or 24V AC/DC Supply.
F E A T U R E S :
• 4 INDEPENDENT OUTPUTS
• 4 INDEPENDENT TIMERS
• ALL OUTPUTS ASSIGNABLE BY CODE
• ON BOARD 8 AMP FORM C RELAY
• 120 USERS
• REMOTE TRIGGERING INPUT
• KEYPAD PROGRAMMABLE
MEMORY
Non-volatile EEPROM memory means your codes and
instructions will be there whether you remove power for 5
minutes or 5 years.
PROGRAMMING
All programming is accomplished entirely from the front of
the keypad. LED or Sounder guidance makes program-
ming easy, and changing codes a matter of seconds for an
authorized user.
CODES
The Door-Gard Command and Control keypads allow up to
120 individual user codes to be valid. Codes may be from
1-6 digits in length and digits may be repeated. The
Master Code is always assigned to user location one (1). Master Code is always assigned to user location one (1)
MAIN RELAY
This is an 8 Amp (10 Amp surge) Form-C relay which can
be toggled or timed from 1 to 90 seconds-by code.
AUXILIARY OUTPUTS
Auxiliary outputs can be individually timed from 1 to 90
seconds or act as a toggle switch, and may be triggered
individually or in combination-by code. The Ruggedized(r),
Sealed Environmental (se), Multipad and Xtreme style pro-
vide these outputs in the form of 1 Amp Form-C relays, all
other styles have negative voltage outputs with a 50mA
sink.
FEATURES AND PROGRAMMING GUIDE
COMMAND AND CONTROL SERIES
REMOTE TRIGGERING INPUT (REX)
This normally open loop that by default operates the Main
Relay upon activation and can be programmed to trigger
any combination of outputs. Upon a momentary closure,
the selected outputs will energize for their programmed
time. The main relay (if selected) will energize for the same
time period as the Master Code. This feature is especially
useful when controlling an electric locking device.
KEYPRESS FEEDBACK / AUDIBLE KEYPRESS
The Command and Control Series Door-Gards will acknowl-
edge a keypress by momentarily illuminating the yellow LED
like on the indoor(i), or momentarily sounding the sounder
like in the sealed environmental (se) style. This can be
turned off through programming.
KEYPAD ACTIVE OUTPUT
The Command and Control Series Door-Gards can be
programmed to energize a voltage output whenever a key is
touched. This can be used to turn on accessories such as
lights, CCTV camera, or notify a guard. This output is not
available if the IEI 250 Printer Interface is used.
AUTO-ENTRY
This feature is used when the need for the code not to be
followed by the * key is desired. The user only needs to
enter their code number and the relay will activate for the
programmed relay time. To use this feature, the user
codes must be the same length as the master code.
AUDIT TRAIL *
An accurate real-time audit trail can be provided by any
Command and Control Series Door-Gard with the addition
of an optional model 250 Printer Interface. The 250 can
monitor up to 8 keypads simultaneously. The 250 comes
with power supply and printer cable and connects easily to
any parallel line printer (not included).
* This option is not available with some styles of keypads.
Call IEI for a list of product, or visit us on the web!
