- Page 2 It is subject to change without notice. Omissions and errors may occur in a document of this type although everything is done to avoid them. Essilor can in no case be held liable for any mishaps that could occur due to such errors...
-
Page 3: Safety Instructions
Fast water run-off ESSILOR 5. Only accessories and/or spare parts. ♦ Built-in water system ESSILOR will not be held Easy drainage of system responsible if this instruction is Direct water connection not complied with. With a recognised ecological 6. Always... -
Page 4: General Specifications
DESCRIPTION DESCRIPTION (continued) General specifications Setting up the machine The MMW is an innovative, easy-to use hand-held edger equipped with - Unpack the machine either one or two diamond-coated grinding wheels. IMPORTANT: The hand rest The tapered contour of the cover... -
Page 5: Operation

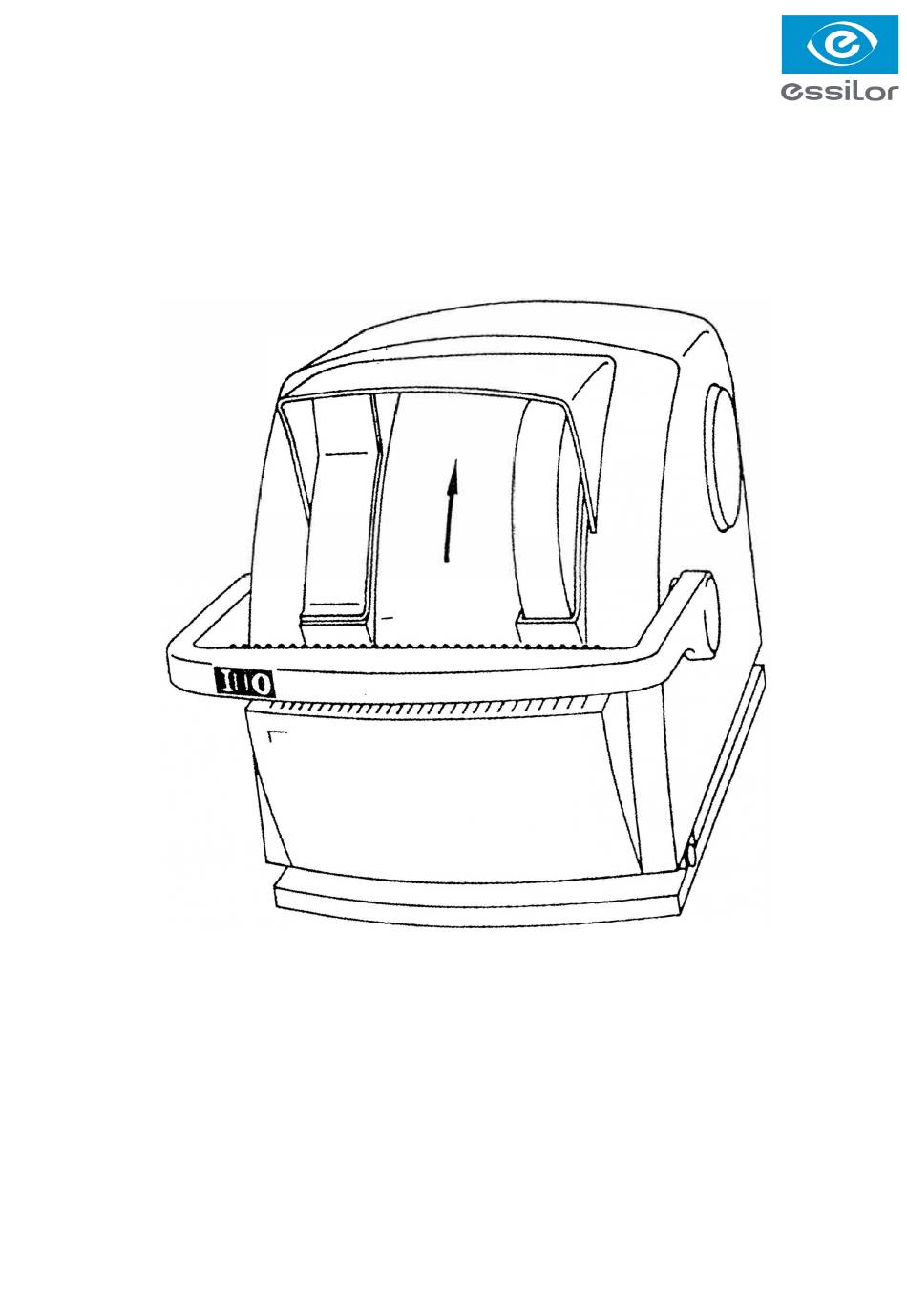

OPERATION Control elements Hand rest The hand rest (2) indicates whether the machine is on or off. The machine is turned on by lowering the hand rest (2). (It is not necessary to push hard). The machine is turned off by raising the hand rest. - Page 6 OPERATION (continued) Roughing Roughing may be done on a single roughing wheel. Bevel The bevel may be done on the V-edge finishing wheel (which can be mounted either on the right or the left).
-
Page 7: Maintenance
MAINTENANCE MAINTENANCE (cont inued) (continued) Dress the wheels only if the lens - Unscrew the motor screws edging time seems unusually long. - Remove the belt - Loosen the pulley screw Press dampened cleaning - Remove the wheel from the stones against the turning wheels pulley. -
Page 8: Spare Parts
SPARE PARTS Large sponge: 4MMW1 0A Small sponge: 4MMW10B Belt: 4MMW10C Large sponge holder: 4MMW10D Small sponge holder: 4MMW10E Scraper: 4MMW10F Spindle bearing: 4MMW10G Plexiglas hood: 4MMW10H Water shut-off valve: 4MMW10I 220V switch: 4MMW10J 11 0V switch: 4MMW10K Pump cable: 4MMW10L Microcircuit: 4MMW10M... - Page 9 Essilor Instruments USA 8600 W. Catalpa Avenue, Suite 703 Chicago, IL 60656 Phone: 855.393.4647 Email: info@essilorinstrumentsusa.com www.essilorinstrumentsusa.com...
