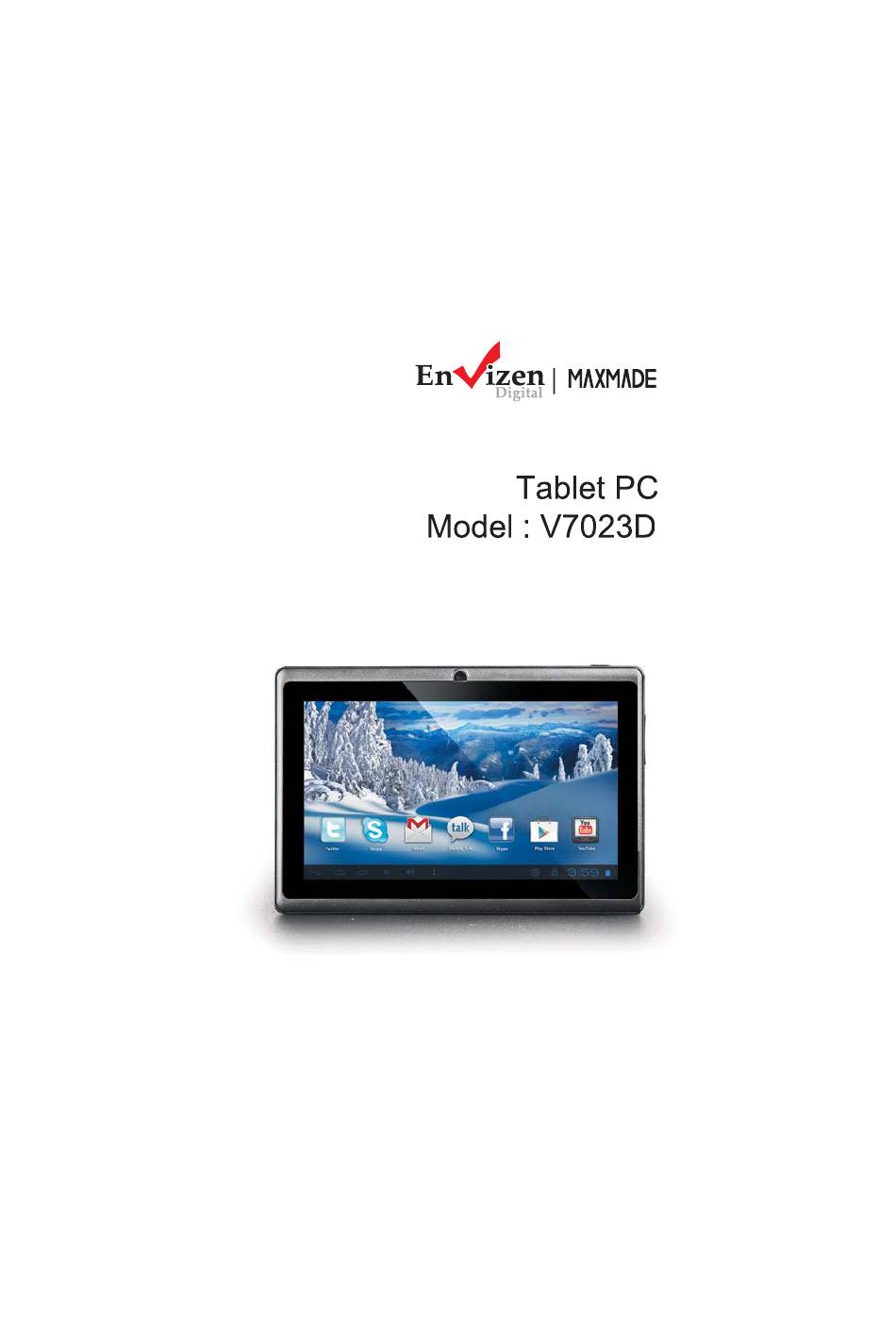

- Page 1 Tablet PC Model : V7023D...
-
Page 2: Table Of Contents
Contents 1 Overview................ 1.1 Appearance and Keys..........1.2 Basic Operation............1.2.1 Power ON..............1.2.2 Unlock Screen............1.2.3 Lock Screen.............. 1.2.4 Power OFF..............1.2.5 Battery Charging............1.2.6 Onscreen Keyboard..........1.2.7 T-Flash card / Micro SD card........1.2.8 Connect to PC............1.2.9 Browse Files............... 1.2.10 Startup Program............ - Page 3 Disclaimer Thank you for purchasing our product! Before using this product，please read the manual carefully. We will presume that the manual has been read before using the product. 1. The functions information of this manual is subject to the product itself;...
- Page 4 Safety notices To avoid accidents please adhere to the manuals instructions. maintenance. lease a It may cause data loss and/or system error. any relevant restrictions. Packing list and remove the contents. Item Components Quantity User Manual Adapter Service card Attention: Accessories of this product can change without notice．...
-
Page 5: Overview
1 Overview 1.1 Appearance and Keys DC-5V Symbol Name eadpho e o Ster VOL+/VOL- VOL+/VOL- TF Card Micro SD Card slot Press quick t ter sleep/wake mode, hold Power o switch ON/OFF DC-5V Power socket char device Micro USB port with PC ect to a mi DM able... -
Page 6: Basic Operation
1.2 Basic Operation 1.2.1 Power ON When the device is OFF , press and hold POWER key, then the device powers on and enters Android system. 1.2.2 Unlock the screen Press and drag the icon to the . The LCD will automatically unlock. 1.2.3 Lock screen When the device is “ON ”, press the Power key, the system will lock the screen. -
Page 7: Onscreen Keyboard
1.2.6 Onscreen Keyboard The device support: handwriting, number, letter, Chinese Pinyin etc. To switch methods: Click on any text input area available. The onscreen keyboard will display, as shown below: ，then Input method switch options will appear. Select the input Press desired. -
Page 8: Connect To Pc
1.2.8 Connect to PC Transfer files from PC and MID. One end of the USB cable connects to the computer, the other end connects to the tablet device. Select Settings > Developer options > USB debugging. The device will connect to the computer, once connected copy files to the device. -
Page 9: Startup Program
1.2.10 Startup programs Click on the application icon desired to start, or open. 1.2.11 Home screen To view the extended home screens just slide finger left or right. Press and hold blank regions on the home screen for a few seconds. A pop up menu will appear. -
Page 10: Touch Screen
Press and hold the application wanted to delete and drag it to the “X” located at either the top or bottom of the screen. Enter Settings>Apps> Select particular Apps>Opens and click Uninstall, or Remove. The tablet has a capacitive touch screen. Use the following gestures to select item or enter information. -
Page 11: Security Setting
1.2.13 Security Setting To set or remove lock pattern,go to Settings > Security > Screen lock, choose your preference.(None, Slide, Face Unlock, Pattern, PIN, Password) - Page 12 Pattern: 1. Ensure that four-point connect when drawing the un-lock pattern. Enter desired pattern pass code.
-
Page 13: Display Setting
2. Re-enter Pattern 3. Click confirm to complete unlock pattern. The device now has Pattern Lock. To access the device, or unlock, use the pattern code it was assigned. -
Page 14: Wireless And Network
1.2.14 Display Click Settings>Display. To set: Brightness, Wallpaper, Auto-Rotate Screen, Sleep, and Font Size of the screen. 1.2.15 Wireless And Network Settings a).Wi-Fi 1). Click Settings > Wi-Fi, turn on Wi-Fi, the device will find surrounding available wireless networks. 2).Select the appropriate wireless network. The system will directly connect to the network or pop up the password input window, if a password is required. -
Page 16: Technical Specifications
1.3 Technical specifications Size L 7.0 x W 4.7 x H 0.4 inches Weight 0.6Ibs LCD Display 7.0 inch 800*480- Multi-point capacitive touch screen PC Interface High speed Micro USB Android 4.1 Hard Drive Capacity System Memory 512MB DDR3 Capacity Expansion Micro SD card 32GB(max) Music Function Format... -
Page 17: Warranty
FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (A)This device may not cause harmful interference. (B)This device must accept any interference received, including interference that may cause undesired operation. 2.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 18 /Tablet PC for parts and ninety(90)days for labor,starting from the original date of 8. This warranty does not apply to customers outside the Continental US states.
- Page 20 The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR.
