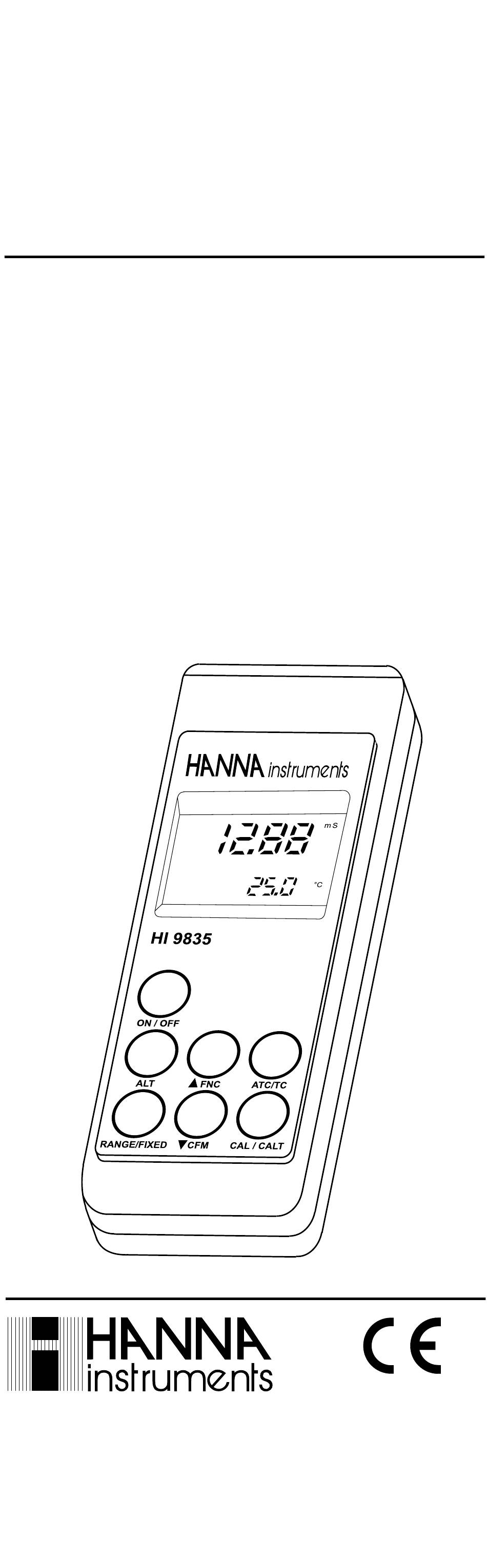

- Page 1 Instruction Manual HI 9835 Autoranging Portable Waterproof Microprocessor EC/TDS/NaCl/°C Meter This Instrument is in Compliance with the CE Directives Manufacturers since 1978...
-
Page 2: Table Of Contents
CE DECLARATION OF CONFORMITY ............19 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., 584 Park East Drive, Woonsocket, Rhode Island, 02895 , USA. Visit our Internet Home Page:... -
Page 3: Preliminary Examination

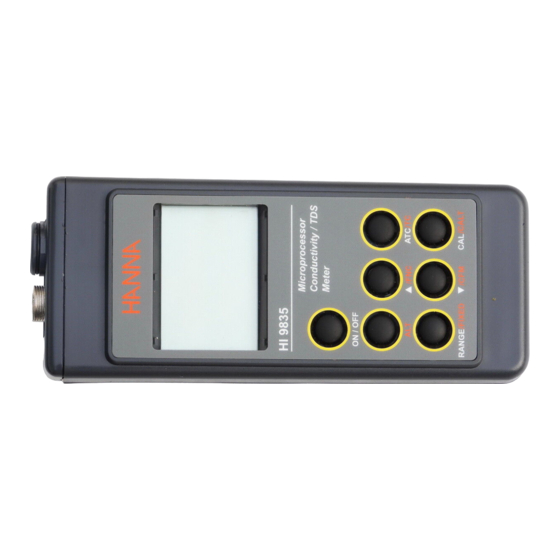

GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION GENERAL DESCRIPTION HI 9835 is a waterproof portable microprocessor-based Conductivity/ TDS/NaCl/temperature meter. The autoranging feature of the EC and TDS ranges automatically sets the meter to the scale with the highest possible resolution. The measurements are automatically (ATC) or manually (MTC) compen- sated for temperature. -
Page 4: Functional Description
FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION 1) Power adapter socket 2) Probe Connector 3) Liquid Crystal Display (LCD) 4) ON/OFF key, to turn the meter on and off 5) ALT key, to alternate key function 6) RANGE / FIXED key, to select measurement range or (with ALT) to freeze the current range on the LCD 7) CAL / CALT key, to enter calibration mode CFM key, to move down or (with ALT) confirm values... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Range EC 0.00 to 29.99 µS/cm (Autoranging) 30.0 to 299.9 µS/cm 300 to 2999 µS/cm 3.00 to 29.99 mS/cm 30.0 to 200.0 mS/cm Up to 500.0 mS/cm actual Conductivity TDS 0.00 to 14.99 ppm (Autoranging) 15.0 to 149.9 ppm 150 to 1499 ppm 1.50 to 14.99 g/L 15.0 to 100.0 g/L... -
Page 6: Connections
EC Calibration 1 point with 6 memorized buffers 84,1413,5000,12880,80000,111800 µS/cm NaCl Calibration 1 point with HI 7037 buffer (optional) Temperature 2 points at 0 and 50°C (plus ±1°C adjustment) Calibration Temperature Automatic or Manual from 0 to 60°C Compensation (can be disabled to measure actual conductivity) Temperature 0.00 to 6.00 %/°C (for EC and TDS only) Coefficient... -
Page 7: Taking Measurements
TAKING MEASUREMENTS TAKING MEASUREMENTS TAKING MEASUREMENTS TAKING MEASUREMENTS TAKING MEASUREMENTS Press the ON/OFF key to turn the meter on. Immerse the probe into the solution to be tested. The sleeve holes must be completely submerged. Tap the probe repeatedly to remove any air bubbles that may be trapped inside the sleeve. -
Page 8: Autoranging
AUTORANGING AUTORANGING AUTORANGING AUTORANGING AUTORANGING The EC and TDS scales are autoranging. The meter automatically sets the scale with the highest possible resolution. By pressing ALT+FIXED, the autoranging feature is disabled and the current range is frozen on the LCD. "F1" symbol blinks on the LCD. -
Page 9: Ec/Tds Calibration
EC/TDS CALIBRATION EC/TDS CALIBRATION EC/TDS CALIBRATION EC/TDS CALIBRATION EC/TDS CALIBRATION Calibration is a 1-point procedure. Selectable calibration points are: 0.0, 84.0µS, 1413µS, 5.00mS, 12.88mS, 80.0mS,111.8mS. To enter EC calibration select the EC range and press the CAL key. Note: TDS reading is automatically derived from the EC reading and no specific calibration for TDS is needed. -
Page 10: Nacl Calibration
In order to minimize any EMC interference, use plastic beakers. The meter uses 1.90%/°C compensation factor during calibra- tion. If the setup item "tc" has been set to a different value, when exiting the calibration mode the value displayed on the upper LCD could be different from the nominal buffer value. -
Page 11: Temperature Calibration
TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION TEMPERATURE CALIBRATION ( ( ( ( ( for technical personnel only) for technical personnel only) for technical personnel only) for technical personnel only) for technical personnel only) The calibration is 2 points at 0.0, 50.0°C. •... -
Page 12: Conductivity Vs. Temperature Chart
CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS TEMPERATURE CHART TEMPERATURE CHART TEMPERATURE CHART TEMPERATURE CHART TEMPERATURE CHART The conductivity of an aqueous solution is the measure of its ability to carry an electrical current by means of ionic motion. The conductivity invariably increases with increasing temperature. -
Page 13: Setup
SETUP SETUP SETUP SETUP SETUP Setup is used to view or change the instrument parameters. To enter setup press ALT+FNC when the meter is in measurement mode. "Set" is displayed on the upper LCD. The lower LCD displays the blinking code of the current setup item. - Page 14 Item Description Valid values Default Temp. compensation coeff. 0.00 to 6.00 %/°C 1.90 Temp. compensation mode Atc, Mtc, notc TDS factor 0.40 to 0.80 0.50 Cell constant (K) 0.500 to 1.700 1.000 Auto-Off enable On, OFF Firmware release Battery level test Notes Once enabled, the Auto Off time is fixed at 5 minutes.
-
Page 15: Battery Replacement
BATTERY REPLACEMENT BATTERY REPLACEMENT BATTERY REPLACEMENT BATTERY REPLACEMENT BATTERY REPLACEMENT When the batteries are inserted and no power adapter is connected, the meter can recognize the following battery charge levels: • Low battery - "LOBAT" indication is displayed on the LCD. Back- light is automatically disabled and it is not possible to enable it until new batteries are inserted or an external power adapter is used. -
Page 16: Accessories
ACCESSORIES ACCESSORIES ACCESSORIES ACCESSORIES ACCESSORIES CONDUCTIVITY BUFFER SOLUTIONS HI 70030P 12880 µS/cm (µmho/cm), 20mL sachets (25 pcs.) HI 7030L 12880 µS/cm (µmho/cm), 460mL bottle HI 7030M 12880 µS/cm (µmho/cm), 230mL bottle HI 70031P 1413 µS/cm (µmho/cm), 20mL sachets (25 pcs.) HI 7031L 1413 µS/cm (µmho/cm), 460mL bottle HI 7031M... - Page 17 OTHER ACCESSORIES HI 76309 stainless steel 4-ring conductivity/TDS probe with temperature sensor and 1m (3.3') cable. HI 76310 platinum 4-ring conductivity/TDS probe with tem- perature sensor and 1m (3.3') cable. HI 710005 12VDC voltage adapter (US plug) HI 710006 12VDC voltage adapter (European plug) HI 710012 12VDC voltage adapter (UK plug) HI 710013...
-
Page 18: Warranty
If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization number from the Customer Service department and then send it with shipping costs prepaid. -
Page 19: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY Recommendations for Users Before using this product, make sure that it is entirely suitable for the environment in which it is used. Operation of this instrument in residential area could cause unacceptable interference to radio and TV equipment, requiring the operator to take all necessary steps to correct interference.
