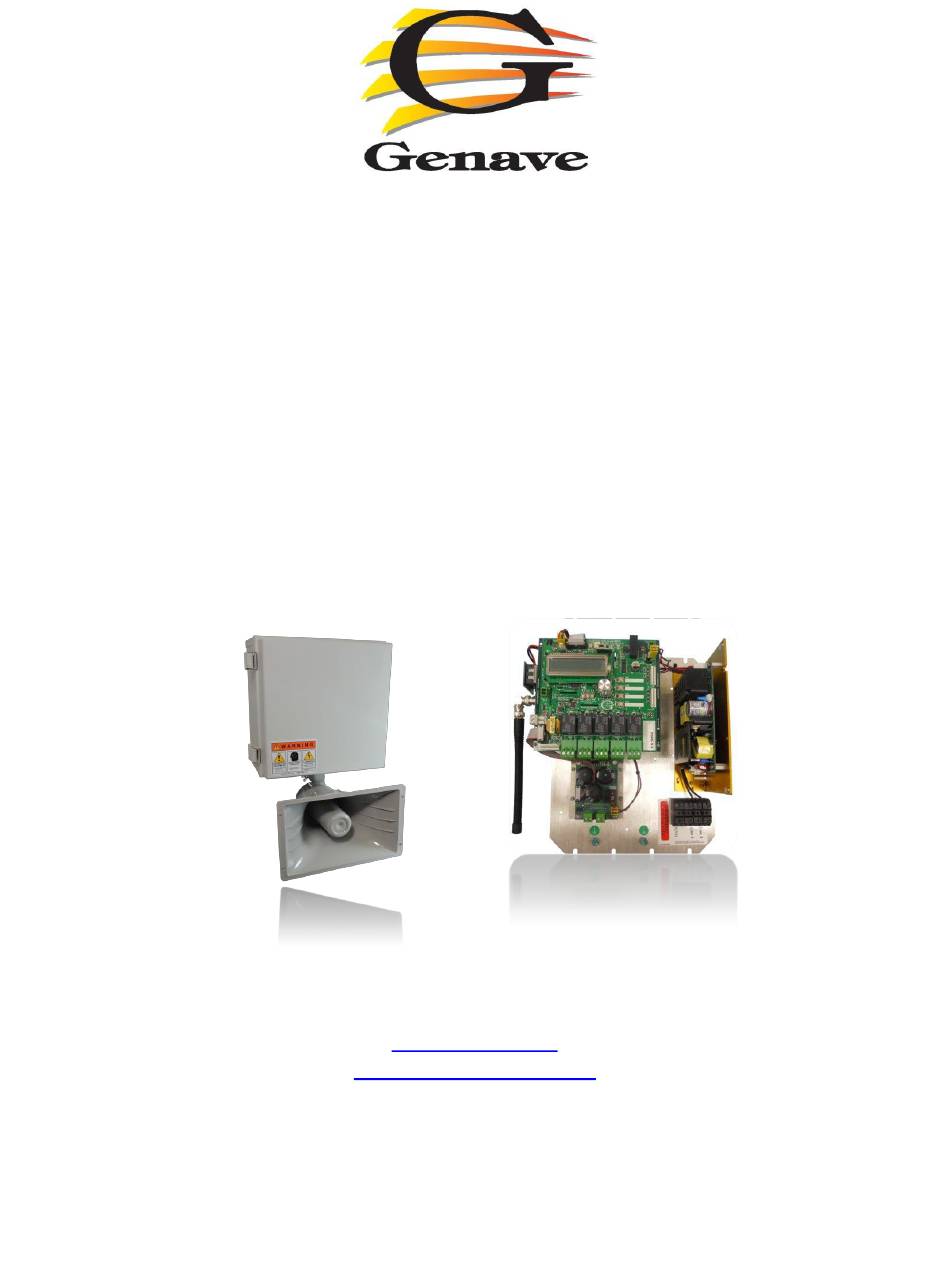

- Page 1 ™ RXC-3080 USB / Twist-n-Touch™ Receiver Decoder Controller Hardware Manual Genave / NRC, Inc. www.genave.com support@genave.com Copyright 2017. Genave / NRC, Inc. Tech. Publication No. 9000-0000-042 Rev 06...
- Page 2 RXC-3080 Hardware Installation and User Guide Warning If incorrectly used, this equipment can cause severe injury. Those who use and maintain the equipment should be trained in its proper use, warned of its dangers, and should read the manuals before attempting ...
- Page 3 RXC-3080 Hardware Installation and User Guide Important Safety Information Installation & Service Precautions Electrocution, severe personal injury and damage to equipment can occur during installation or servicing this equipment. All electrical work should be performed by, or under the supervision of an experienced electrician and in accordance with all applicable electrical, fire, building and safety codes.
- Page 4 (including damages for loss of business profits, business interruption, loss of business information, and the like) arising out of the use or inability to use the software or hardware even if the Genave and/or its licensor has been advised of the possibility of such damages.
-
Page 5: Table Of Contents
Restoring RXC-3080 to Default Programming ................18 Inputs............................... 19 Input Header Characteristics (J14 and J15) ..................19 Triggering RXC-3080 From an Input..................... 20 (Example) Interfacing RXC-3080 To External Switches ............... 21 Outputs ..............................22 Relay Characteristics ........................22 Output Header Pinout (Aux Output)(J5) ..................23 Pin 1 - Relay #1 ........................... - Page 6 “Live Look” (DTMF Digit Grabber)....................32 Two Tone Sequential Decoder ....................... 33 Two Tone Decoder Characteristics ....................33 Triggering RXC-3080 Off Of A Two Tone Signal ................. 35 How To Enter/Adjust Two Tone Signal Strings ................35 Two Tone Learn Mode ........................35 “Live Look”...
- Page 7 RXC-3080 Hardware Installation and User Guide Misc ................................. 44 Fuse ..............................44 LCD Display Backlight ........................44 Heartbeat LED ..........................44 7 of 45 9000-0000-042 Revision 06 Genave Electronics...
-
Page 8: Specifications
Maxon SD-161/171/164/174 Power Supply Freq Range: 148 MHz to 174MHz 110 Watts Output 450 MHz to 490MHz Specs: See Maxon manual for more details Communication Format USB 2.0 Software Use Genave ComstarG4software 8 of 45 9000-0000-042 Revision 06 Genave Electronics... -
Page 9: Overview
How the History Memory works The RXC-3080 remembers each signal that it has been taught to receive and logs it into its memory. If the unit is equipped with the optional Real Time Clock (RTC) each history entry will also have the time and date of the received signal. -
Page 10: Building Blocks
The RXC-3080 comes equipped with 5 Single Pole Single Throw (SPST) high power relays. Additionally, the RXC-3080 has an output header where the installer can tap into the transistors that control the relays as well as 3 additional transistors that are open for special use. During the running of a script, a command in the script will tell an output to turn on and/or off. -
Page 11: Menus And What They Mean
A double click of the “twist-n-touch” knob will allow entry into the settings menus. Note: Sub-menu screen will time out in 3 minutes and return the RXC-3080 to normal operation without Twist-n-Touch knob movement. Live DTMF* and LIVE TTS PAGING* do not time out. - Page 12 RXC-3080 Hardware Installation and User Guide “Adjust Settings” Screens Enter to adjust the unit’s Enter to select radio or ADPCM addresses for System, Group, audio sent to PA port. and Unit. (refer to Prog. Guide Sec. 21) (refer to Prog. Guide Sec. 13) Enter to adjust the radio’s...
-
Page 13: Installing
Genave offers a pole mounting kit (HDW-5051) for the RXC-3080. The kit can be used to attach the RXC-3080 to a wood pole with screws or lags, customer supplied, or it can be attached to a steel pole with the optional stainless steel banding. - Page 14 RXC-3080 Hardware Installation and User Guide Pole Mounting HDW-5051 Optional LED Strobe Light HDW-5051 shown with optional mounting accessories 14 of 45 9000-0000-042 Revision 06 Genave Electronics...
-
Page 15: Ac Wiring
Power Connection The RXC-3080 requires 90 to 250 volts AC power to operate. The unit is supplied with a 3 position barrier terminal block. The terminal screw size is #6 screw and will accept a forked terminal with a maximum width of .320”. -
Page 16: Dc Wiring
When ordered with the 70 watt amplifier (P/N OPT-70WAMP), one or two speakers can be attached to the RXC-3080. One can be directly attached to the bottom with a special reinforcing plate from Genave or two can be supplied up to 40 feet away from the unit. The speakers are connected to the 70 watt amplifier via connectors (J2 and J3). -
Page 17: Programming
4) The first time your run ComstarG4, click Edit->Preferences and select the USB drive. The file that holds all of the configuration data for your Genave product will automatically load when you start the ComstarG4 program. If you make changes to the file, use “SAVE AS” and save the new file to the hard drive. -
Page 18: Usb Port, Connector And Cable
Hardware Installation and User Guide USB Port, Connector And Cable The RXC-3080 communicates with a computer over a USB 2.0 port. The port's connection is a mini type B 5 pin USB receptacle. The maximum USB cable length is 16 feet. -
Page 19: Inputs
Input Header Characteristics (J14 and J15) The inputs for the RXC-3080 are ALWAYS pulled low to pin 9 of J14 or J15. You can connect these inputs to switches or opto-couplers. We recommend that they are not connected directly to a digital level source unless there is protection between the two circuits. -
Page 20: Triggering Rxc-3080 From An Input
RXC-3080 Hardware Installation and User Guide Triggering RXC-3080 From an Input The following items describe input triggering: (1) Each of the 8 inputs can start an action script, but only one script per switch. (2) The action scripts need to be setup before a switch can be attached to them. -
Page 21: (Example) Interfacing Rxc-3080 To External Switches
RXC-3080 Hardware Installation and User Guide Relay 5 Relay 4 Relay 3 Relay 2 Relay 1 (Example) Interfacing RXC-3080 To External Switches 21 of 45 9000-0000-042 Revision 06 Genave Electronics... -
Page 22: Outputs
Relay Characteristics The RXC-3080 has 5 high power relays available for use. Each relay can handle 240VAC at 7 Amps. Each relay's outputs are directly connected to a 3 position header (J6 to J10) that can accept wires up to 12 AWG diameter. -
Page 23: Output Header Pinout (Aux Output)(J5)
+12VDC. When the transistors are on, the output will be 0 VDC. Do not connect these pins to any voltage higher than +12VDC since the voltage will go through the relays and into the RXC-3080's power supply. Pin 1 Pin 9 GND... -
Page 24: (Example) Connecting Rxc-3080 To Heavy Loads
RXC-3080 Hardware Installation and User Guide (Example) Connecting RXC-3080 To Heavy Loads 24 of 45 9000-0000-042 Revision 06 Genave Electronics... -
Page 25: Pa Audio Port
The Diagnostics pin is diode protected so that voltages above +5VDC are blocked from damaging the RXC-3080. The diagnostic input serves to tell the RXC-3080 that the amplifier is working properly. A low voltage on this pin indicates that the amplifier is ok. A high voltage on this pin indicates that the amplifier either has a problem or is not connected. -
Page 26: Pinout And Characteristics Of 600 Ohm Audio Port (J12)
Pinout And Characteristics Of 600 Ohm Audio Port (J12) The 600 Ohm audio port is used to connect the audio from the RXC-3080 to a PA system such as the type used in a school, fire station or office building. Most of these systems have audio inputs that are rated as 600 Ohms of balanced audio (600 ohms between the audio wires and no ground reference). - Page 27 RXC-3080 Hardware Installation and User Guide 7.5A Fuse Amplifier Pin 1 Pin 9 Pin 10 Pin 2 Amplifier Pinout 12 DC power is supplied to the amplifier via connecter J12. Control and audio arrives to the amplifier via a ribbon cable from J11 on the motherboard to J1 on the amplifier. J2 and J3 connect to individual speakers that need to be between 6 Ohms and 11 Ohms impedance.
-
Page 28: Setting Pa Port Levels
Hardware Installation and User Guide Setting PA Port Levels There are 3 voltage controlled amplifiers on the RXC-3080 that boost the audio from the radio and main IC (PWM) and then a final boost into the 600 Ohm transformer. These amplifiers are controlled by R81, R95 and R100 respectively. -
Page 29: Radio Port
The Radio Interface Port is optimized for use with the Maxon SD series of radios. However, this port can be used to connect the RXC-3080 to any radio or audio source. Here is the pinout of the port: Pin 1 Do Not Use... -
Page 30: Setting Rx Audio Levels
Narrow band) from the transceiver at Test Point 2 (just below R18). The audio from the ADPCM, DTMF generator and PWM are all summed and amplified for transmission. Please contact Genave for more information. 30 of 45 9000-0000-042 Revision 06... -
Page 31: Radio Audio Levels To Pa Port
RXC-3080 Hardware Installation and User Guide Radio Audio Levels to PA Port (See Setting PA Port Levels under “PA Audio Port” section of manual) How To Change Frequency (Maxon Radio Only) Please refer to the Programming Guide 9000-0000-041 for more information... -
Page 32: Dtmf Decoder
The decoder circuit requires a gap between character strings of 600 milliseconds to decode the previous string before it can accept another string of characters to decode. Triggering RXC-3080 Off Of A DTMF String Please refer to the Programming Guide 9000-0000-041 for more information... -
Page 33: Two Tone Sequential Decoder
1000 Hz tone and since the CTCSS and DCS tones are out of the range for the decoder, they are not decoded. The result is that the RXC-3080 does not respond to the signal. - Page 34 RXC-3080 it may get delayed by up to 250 milliseconds. If not calculated into the A tone time, this would make the A tone appear too short.
-
Page 35: Triggering Rxc-3080 Off Of A Two Tone Signal
RXC-3080 Hardware Installation and User Guide Triggering RXC-3080 Off Of A Two Tone Signal Please refer to the Programming Guide 9000-0000-041 for more information How To Enter/Adjust Two Tone Signal Strings Please refer to the Programming Guide 9000-0000-041 for more information... -
Page 36: Real Time Clock
The battery for the RTC is a standard 3 Volt CR1612, CR1616, CR1620 or CR1632 battery. To maintain the current time, replace the battery with power applied to the RXC-3080. Install the battery into the holder with the negative side to the left and the positive side to the right. -
Page 37: Mp3 Audio Player
RXC-3080 Hardware Installation and User Guide MP3 Audio Player How Sound Files Are Played To The PA Port When the RXC-3000 runs a script, if it has been told to play a song/sound file, it turns on the MP3 player and tells the player the file number of the song/sound it is to play. The player automatically selects the file from the SD card and begins playing. - Page 38 RXC-3080 Hardware Installation and User Guide Example: When the RXC-3000 runs a script, if for example, the words “PLAY=006;” are in the script, the RXC will turn on its amplifier port and then it will instruct the MP3 module to search for and play audio file 006.
-
Page 39: Usb Port
RXC-3080 Hardware Installation and User Guide USB Port The USB port is a 5 pin Mini USB connector. When the MP3 module is installed in an RXC-3000, this USB port takes the place of USB module M4 which is normally located near the top of the LCD display. -
Page 40: Heartsafe
To prevent startling people who may be near the RXC-3000 when it starts playing audio files, the MP3 module has the exclusive “Heartsafe” feature developed by Genave. Any MP3 audio can begin softly then rise to full volume over 5 seconds. The rise allows people to prepare themselves for full volume. -
Page 41: How To Program The Sd Card
RXC-3080 Hardware Installation and User Guide How To Program The SD Card To a computer, an SD card looks exactly like a USB memory stick or hard drive. Remove the SD card from the MP3 module and insert it into a USB to SD card adapter. -
Page 42: Installing The Mp3 Module
RXC-3080 Hardware Installation and User Guide Installing the MP3 Module 1. Remove USB module if installed. 4. Use the supplied Kapton tape to secure the wires to the PCB. 2. Install MP3 module 3. Use the supplied blue and yellow wires to make the connections shown. -
Page 43: Adpcm Audio Player
ADPCM unit to play song #6. There are two ways that the song will end or stop. The first way is for the ADPCM to come to the end of the song, at which time it will tell the RXC-3080 that the song is done. -
Page 44: Tf Card (Microsd) Characteristics
To a computer, a TF card looks exactly like a USB memory stick or hard drive. Remove the TF card from the RXC-3080 and insert it into a USB TF card reader. Plug the USB reader into a USB port on your computer and the operating system will locate the card and start working with it. - Page 45 RXC-3080 Hardware Installation and User Guide Fused Output Board Optional fused output accessory board. Takes a TE5 fuse and has a maximum of 5 amps. Optional LED Strobe Light 5A Max Optional fused output board 8060-0000-042 45 of 45 9000-0000-042 Revision 06...
