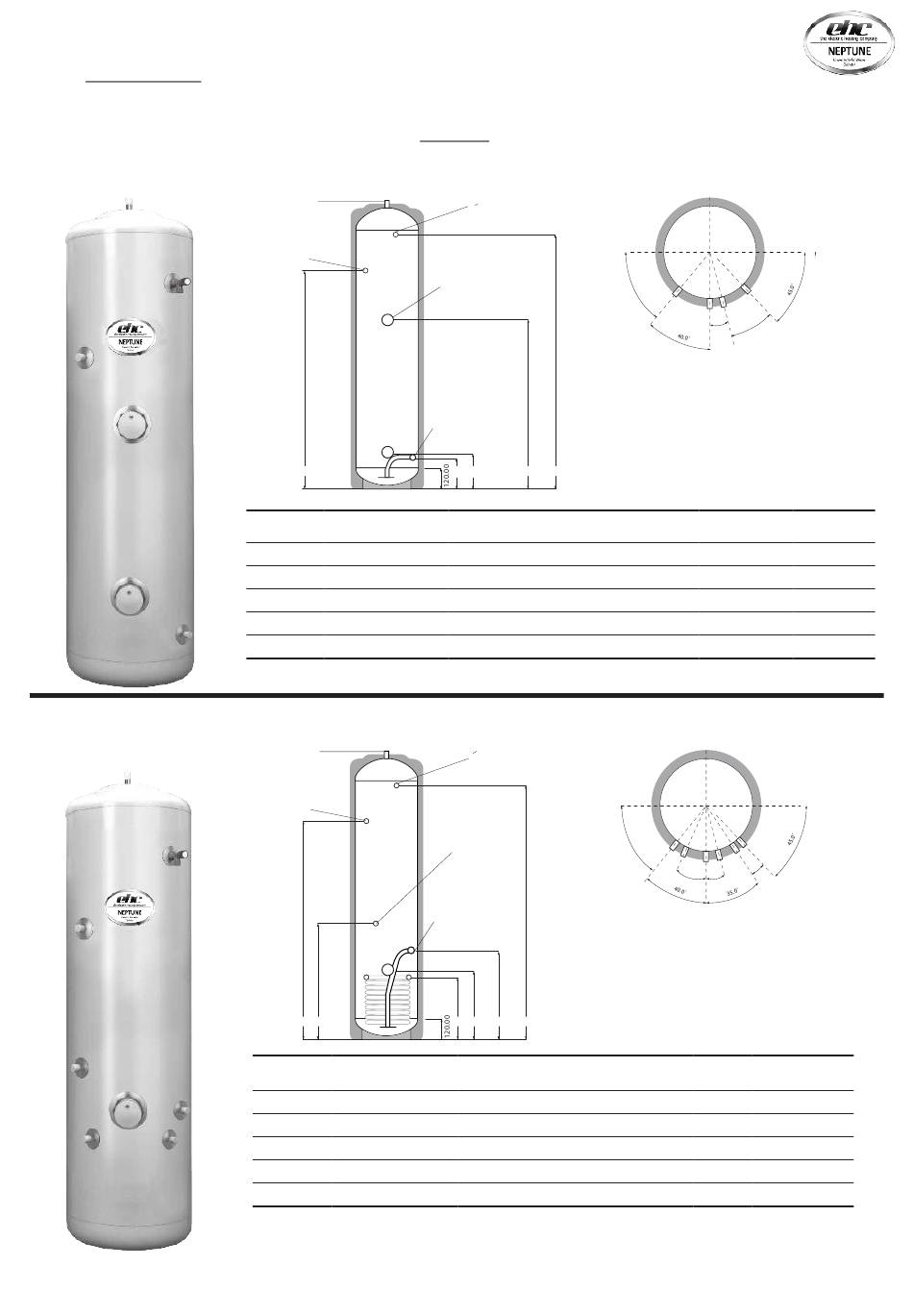

TECHNICAL SPECIFICATIONS

EHC NEPTUNE SLIMLINE DIRECT
EHC NEPTUNE SLIMLINE INDIRECT
22mm HOT
DRAW - OFF
22mm SECONDARY
RETURN (not always fitted.
See table)
D
CODE HEIGHT DIAMETER
NDIRSL90L 1048 478
NDIRSL120L 1236 478
NDIRSL150L 1424 478
NDIRSL180L 1674 478
NDIRSL210L 1987 478
22mm HOT
DRAW - OFF
22mm SECONDARY
RETURN (not always fitted.
See table)
F D
CODE HEIGHT DIAMETER
NINDSL90L 1048 478
NINDSL120L 1236 478
NINDSL150L 1424 478
NINDSL180L 1674 478
NINDSL210L 1987 478
F PTRV BOSS
1
"
2
SECOND IMMERSION HEATER
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
A A B B C G
A B C D
175 210 610 N/F
175 210 710 N/F
175 210 810 N/F
175 210 910 N/F
175 210 1100 1500
1 F PTRV BOSS
"
2
DRY STAT POCKET
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
A B C G
A B C D
340 380 440 395
340 380 440 395
380 420 520 520
380 420 520 610
380 420 520 710
50.0˚
15.0˚
30.0˚
G ERP LOAD PROFILE
BAND
858 D M
1046 D M
1234 D L
1484 D L
1797 D L
50.0˚
10.0˚
15.0˚
25.0˚
F G ERP STANDING
BAND LOSS W
N/F 858 B
N/F 1046 B
N/F 1234 B
N/F 1484 B
1500 1797 C
kWH/Annum
1461
1461
1778
2791
2837
44
47
54
57
66
