Summary of Contents for ZUG Magnum

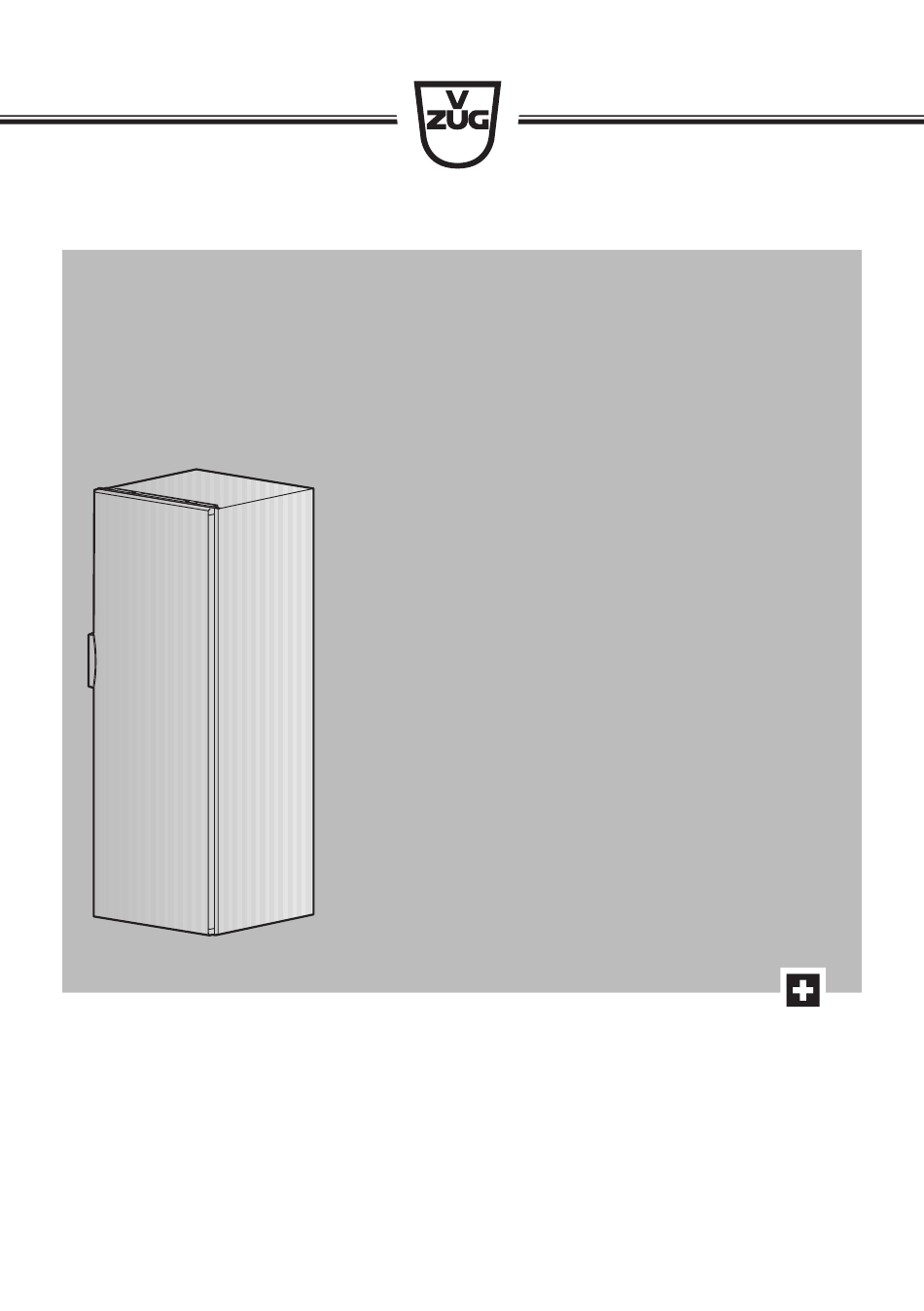

- Page 1 Operating instructions Magnum Refrigerator/freezer...
- Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Model Product family Size system Magnum 51088 SMS 55 / Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Table of contents Safety precautions 4 Service & Support 23 Symbols used............ 4 General safety precautions........ 4 Instructions for use.......... 4 Using for the first time 7 Appliance description 7 Structure .............. 7 Operating and display elements...... 8 Operation 8 Special functions 9 Fast cooling ............ 10... -
Page 4: Safety Precautions
Safety precautions Symbols used and have understood the haz- ards involved. Children shall Denotes important safety precau- tions. not play with the appliance. Failure to observe said precautions Cleaning and user mainten- can result in injury or in damage to ance shall not be undertaken the appliance or fittings! by children without supervi-... - Page 5 1 Safety precautions ▪ If the appliance is visibly damaged, do ▪ The appliance corresponds to recog- not use it. Contact our Customer Ser- nized technology standards and the rel- vices. Do not use the appliance if the evant safety regulations. Proper use of cold circuit is damaged.
- Page 6 1 Safety precautions ignition sources as isobutane is flam- ▪ Do not use pointed or sharp objects to mable. Ventilate the room well for a few remove layers of ice or frozen-on food. minutes. Switch the appliance off and ▪ No mechanical or artificial means other disconnect from the power supply.
-
Page 7: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly. -
Page 8: Operating And Display Elements
4 Operation Operating and display elements Buttons ON/OFF Temperature setting, confirming a setting Preselection Select special functions Display elements Fast cooling Sabbath mode Value and/or status display Appliance switched off Operation Switching the appliance on ▸ Plug in the appliance at the mains. –... -
Page 9: Special Functions
5 Special functions The value displayed may be different from the target value if the door is open for an extended period of time or if warm foods have been placed inside. If the button is pressed without having pressed the button beforehand, a denial tone is emitted. -
Page 10: Fast Cooling
6 Glass shelves and door trays Fast cooling fast cooling function allows larger quantities of food, e.g. after a shopping trip or freezing pre-cooked meals, to be cooled more quickly. It lowers the temperature in the refrigerator compartment to 2 °C for 24 hours. During fast cooling, the appliance oper- ates at higher power, which increases the noise level above the normal operating noise level. -
Page 11: Positioning Glass Shelves
7 Bottle drawer Positioning glass shelves ▸ On both sides, push the slide bar in- wards and downwards. – The slide bar engages and stays in this position. ▸ Pull the glass shelf out of the rear guide and insert into desired position. ▸... -
Page 12: Tips And Tricks
8 Tips and tricks Inserting the bottle drawer ▸ Tip the bottle drawer back slightly and place the back edge in the guides. ▸ Push the guides and bottle drawer in as far as they will go. ▸ Push the handle down so that the front part of the bottle drawer engages. -
Page 13: Storing Food And Food Items
8 Tips and tricks Storing food and food items The example arrangement shows the zones and areas in the appliance that are generally suitable for certain food and food items. 1 Ice cream, bakery products, meat, fish, ready-made products 2 Cheese, jam, tortes, desserts, milk and milk products, prepared meals,... -
Page 14: Notes On Saving Energy
9 Care and maintenance ▪ The following products are not suitable for freezing: radishes, lettuces, cucumbers, raw unshelled eggs, boiled eggs, dairy products such as yogurt, cream cheese, curd cheese and mayonnaise. ▪ Do not defrost frozen food at room temperature or on the heating. Food defrosts slowly in the fridge. -
Page 15: Defrosting
9 Care and maintenance Defrosting Defrosting the refrigerator compartment The refrigerator compartment defrosts once a day automatically. During defrosting, the temperature inside the refrigerator compartment increases so that the ice on the rear wall melts. The wa- ter created when the ice melts collects in the defrost channel, flows through the drain hole and evaporates outside the appliance in the evaporation tray. -
Page 16: Changing The Led Lighting
9 Care and maintenance ▸ Set the appliance to «off» using the button. ▸ Soak up the defrosted water with a sponge. ▸ After defrosting, clean the interior and dry thoroughly. ▸ Start the appliance again using the button. Changing the LED lighting Only use original LED lights from the manufacturer. -
Page 17: Noises And Warnings
10 Noises and warnings Noises and warnings 10.1 Operating noise The appliance can make various noises during operation. Although the appliance is noise-optimized, some noise cannot be eliminated completely. This depends on the size of the appliance, how it is installed and the cooling requirements (e.g. fast cooling), the ambient temperature and the installation conditions. -
Page 18: Trouble-Shooting
11 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please contact Customer Services. Before contacting Cus- tomer Services: ▸ please note down the serial number (SN), which is shown on the identification plate, as well as ▸... -
Page 19: Technical Data
12 Technical data Malfunction Possible cause Solution/Measures Error display ▪ Temperature sensor in the ▸ Contact Customer Services. refrigerator compartment is – The appliance switches to the defective. emergency mode. ▪ Various situations can lead ▸ Contact Customer Services. Error display to an «F»... -
Page 20: Product Fiche
12 Technical data 12.3 Product fiche In accordance with EU Regulation No. 1060/2010 Brand – V-ZUG Ltd Model name – Magnum 51088 Category – 7 (refrigerator/freezer) Energy Efficiency Class – Annual Energy Consumption (AEC) kWh per year Storage volume, refrigerator compart-... -
Page 21: Disposal
13 Disposal Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 13.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... -
Page 22: Index
Index Product fiche............. 20 Appliance disposal .......... 21 Queries .............. 23 Bottle drawer ............ 11 Sabbath mode..........10 Safety precautions Care and maintenance ........14 General ............. 4 Cleaning............. 14 Safety warnings Construction............7 Correct use ............ 5 Service & Support..........23 Service agreement........... - Page 23 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 24 Display elements Fast cooling Sabbath mode Value and/or status display Appliance switched off 1066735-R01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
