Raritan DX2-DH2C2 Quick Setup Manual

Hide thumbs Also See for DX2-DH2C2:
1
2
3
4
5
6

Advertisement

Table of Contents

SmartLock with DX2-DH2C2
Model Number: DX2-DH2C2
Raritan's SmartLock is an electronic door access and control system for all types of data center enclosures.
Supported Components
DX2-DH2C2 door handle controller supports the following components:
PX3
PDU
PX3TS
Xerus
3.4.20 and up
Southco H3-EM-60-100
Door Handles
Southco H3-EM-64-100
Southco H3-EM-65-100
Southco H3-EM-66-100
Southco H3-EM-67-100
Southco H3-EM-68-100
Restrictions for DX2-DH2C2
•
Max. of 1 DX2-DH2C2 with up to 2 electronic door handles per PX3 Sensor port
Max. cable length PDU to DX2-DH2C2: 5m
•
Max. cable length DX2-DH2C2 to door handle: 4m
•
No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 while contacts are
•
powered.
Risk of equipment damage.
More Info
Raritan Product Support:
https://www.raritan.com/support/product/px3

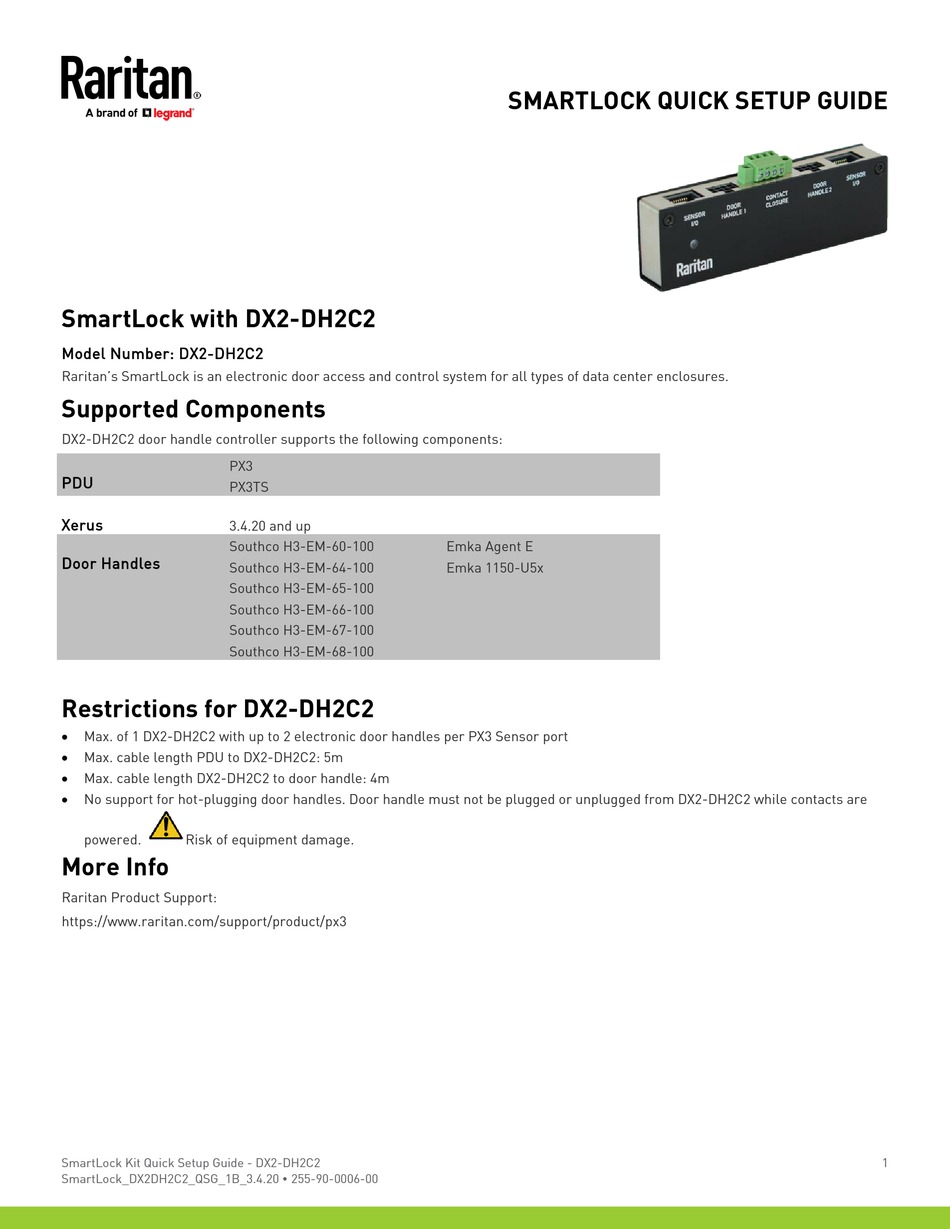

SmartLock Kit Quick Setup Guide - DX2-DH2C2
SmartLock_DX2DH2C2_QSG_1B_3.4.20  255-90-0006-00
SMARTLOCK QUICK SETUP GUIDE
Emka Agent E
Emka 1150-U5x
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX2-DH2C2 and is the answer not in the manual?

Questions and answers

Related Manuals for Raritan DX2-DH2C2

Summary of Contents for Raritan DX2-DH2C2

  • Page 1 Max. cable length PDU to DX2-DH2C2: 5m • Max. cable length DX2-DH2C2 to door handle: 4m • No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 while contacts are • powered. Risk of equipment damage.

  • Page 2: Dx2-Dh2C2 Installation With Px3

    CC sensors and wiring not included. Connect CC sensors according to their instructions. Next Steps Once the physical connections are complete, login to your PX PDU to use door handle features in the web interface. SmartLock Kit Quick Setup Guide - DX2-DH2C2 SmartLock_DX2DH2C2_QSG_1B_3.4.20  255-90-0006-00...
  • Page 3 • Click Smart Lock in the Main menu to open the Door Handle options. Smart Lock Controller section on top displays the physical connection to the DX2-DH2C2. • Door Handle 1 and Door Handle 2 correspond to the labels on the sensor.
  • Page 4 Optional: You can rename each Door Handle component by clicking the item and editing settings. • After these configurations, return to the Peripherals Devices page. This page now displays state, type and Position options for • each configured component. SmartLock Kit Quick Setup Guide - DX2-DH2C2 SmartLock_DX2DH2C2_QSG_1B_3.4.20  255-90-0006-00...

  • Page 5: Optional Setting: Unlock Front And Rear Doors Simultaneously

    Data Center (EDM) association of PDU, Rack, and Door • Door Access Management: Associating the card reader to the rack and user authorization • See the Power IQ help for further instructions: https://www.sunbirddcim.com/ SmartLock Kit Quick Setup Guide - DX2-DH2C2 SmartLock_DX2DH2C2_QSG_1B_3.4.20  255-90-0006-00...

  • Page 6: Px3/Px3Ts Compatible Kits

    SML-KIT-SCO-67-2D: (2) Electronic door handles (HANDLE-E) (2) Electronic door handles (SML-SCO-H3EM-67) (1) Contact Closure Sensor with powered contacts (DX-PD2C5) (1) Contact Closure Sensor with powered contacts (DX2-DH2C2) (2) Mechanical override keys (2) Mechanical override keys Cables and connectors included Cables and connectors included...
