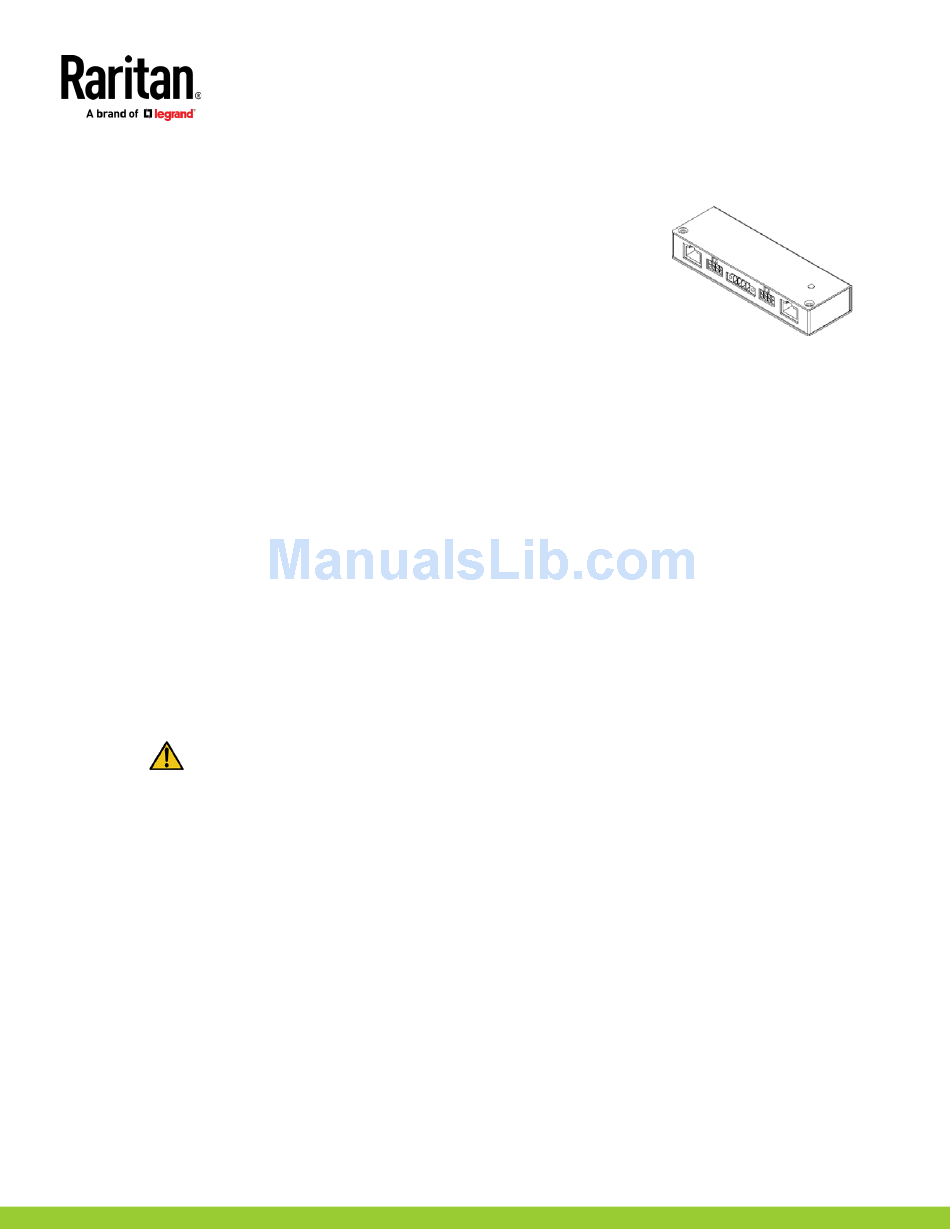

SmartLock with DX2-DH2C2
Raritan's SmartLock is an electronic door access and control system for all types of data center enclosures.

Supported Components

DX2-DH2C2 door handle controller supports the following components:
PDU: PX3 or PX3TS series
•
Xerus 3.4.0 and up
•
Door handles:
•
Emka Agent E
Emka 1150-U5x
Southco H3-EM-67-100 with integrated card reader: supports MIFARE Classic, MF DESFire, HID iClass cards, up to 7 bytes
UID
Southco H3-EM-66-100 with integrated card reader: supports MIFARE Classic, MF DESFire cards

Restrictions for DX2-DH2C2

Max. of 1 DX2-DH2C2 with up to 2 electronic door handles per PX3 Sensor port
•
Max. cable length PDU to DX2-DH2C2: 5m
•
Max. cable length DX2-DH2C2 to door handle: 4m
•
No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 while contacts are
•
powered.
Risk of equipment damage.
SmartLock Kit Quick Setup Guide - DX2-DH2C2
SmartLock_DX2DH2C2_QSG_1A_3.4.0  255-90-0006-00
SMARTLOCK QUICK SETUP GUIDE
MODEL NUMBER: DX2-DH2C2
COMPATIBILITY: PX3, PX3TS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX2-DH2C2 and is the answer not in the manual?

Questions and answers

Related Manuals for Raritan DX2-DH2C2

Summary of Contents for Raritan DX2-DH2C2

  • Page 1 Max. cable length PDU to DX2-DH2C2: 5m • Max. cable length DX2-DH2C2 to door handle: 4m • No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 while contacts are • powered. Risk of equipment damage.
  • Page 2 Use wiring provided with your door handles. Connect the 8-pin connector end to the door handle port. CONTACT CLOSURE Contact closure sensor channels CC sensors and wiring not included. Connect CC sensors according to their instructions. SmartLock Kit Quick Setup Guide - DX2-DH2C2 SmartLock_DX2DH2C2_QSG_1A_3.4.0  255-90-0006-00...
  • Page 3 Next Steps Login to your PX PDU to use door handle features in the web interface, or access using CLI. More Info Raritan Product Support: https://www.raritan.com/support/product/px3 SmartLock Kit Quick Setup Guide - DX2-DH2C2 SmartLock_DX2DH2C2_QSG_1A_3.4.0  255-90-0006-00...
