Instruction Manual

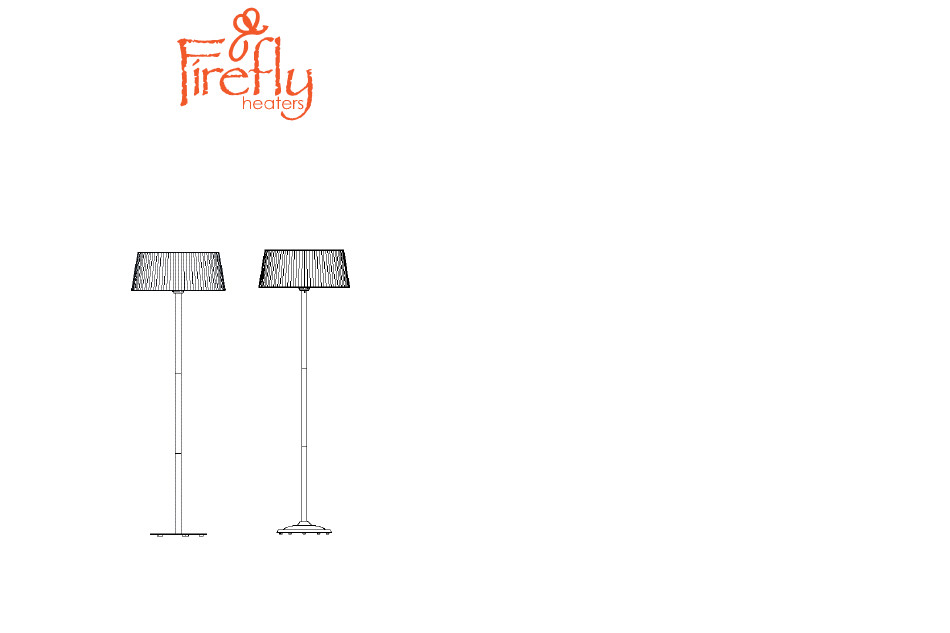

Electric Patio Heater
Model: OL3966/ OL3967
Please read these instructions carefully before using your
r
new halogen heate
U
npack the halogen heater making sure that all the items are
present and that there are no components left in the box and
that the heater head is free from any packing material.
U
sing the detailed drawing and follow the steps to assemble
your halogen heater.
Do not
connect the halogen heater to the electrical supply
until all the assembly is complete.
Do not
connect the halogen heater to the electrical supply if
any of the components or the power cord is damaged in any
way.
I
f in doubt contact your supplier.
Primrose
info@primrose.co.uk
Tel: 0118 9035210(UK)
Tel: 0044 118 9035210 (outside of UK)
T
his appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
C
hildren shall not play with the appliance.
maintenance shall not be made by children without supervision.
C
leaning and user
Advertisement
Related Manuals for Firefly OL3966
Summary of Contents for Firefly OL3966
- Page 1 Do not connect the halogen heater to the electrical supply until all the assembly is complete. Model: OL3966/ OL3967 Do not connect the halogen heater to the electrical supply if any of the components or the power cord is damaged in any way.
- Page 2 WARNING: T objects (minimum distance 1 metre). his heater is not equipped with a device to Do not this heater in immediate control the room temperature. o not use this heater in small surroundings of a bath, a shower or a swimming pool. rooms when they are occupied by persons not capable of leaving Do not use in unventilated areas...
- Page 3 bathroom or shower area. he unit must be securely placed on a horizontal and flat he unit is for household use only. t is not safe to use surface. on a building site, greenhouse, barn or stable where he unit is at high temperature during operation. there’s flammable dust.
- Page 4 Do not Fix the bottom tube onto the stainless steel base by Step1: use this heater with a programmer, timer or screwing. other device that switches heater automatically, since a fire risk exists if the heater is covered or positioned incorrectly. his appliance is not intended for use by persons (including children) with reduced physical.
- Page 5 Step 5: Insert the Heater Head onto the Top Tube and fix in position using Step4: Place the power cord plug through base, bottom pole, middle pole the 4*8mm screws. and top pole. Connect the power cord plug to the socket in the heater head.
- Page 6 Assembling Process –Base with painted Warning: Please tear off all the hyaline protect film around the big heater head before using! Step 1: Fix the Bottom Tube to the base using 3pcs M6*35 bolts. Complete!
- Page 7 Step 2: Place the Decoration Cover onto the Bottom Tube. Step 5: Place the power cord plug through base, bottom pole, middle pole and top pole. Connect the power cord plug to the socket in the heater head. Step 3: Connect the middle tube with bottom tube by screwing them together.
- Page 8 Step 7: Insert the Heater Head onto the Top Tube and fix in position using the 4*8mm screws. Step 8: Fix the Power Cord on the Base. Complete!
-
Page 9: Operation
Operation Connect the power cable to a 13 amp supply that is located in a safe, dry area. The switch on the heater head is used to control the three heat setting. (I) for 900w – (II) for 1200w – (I&II) for 2100w. The 0 position is off.
