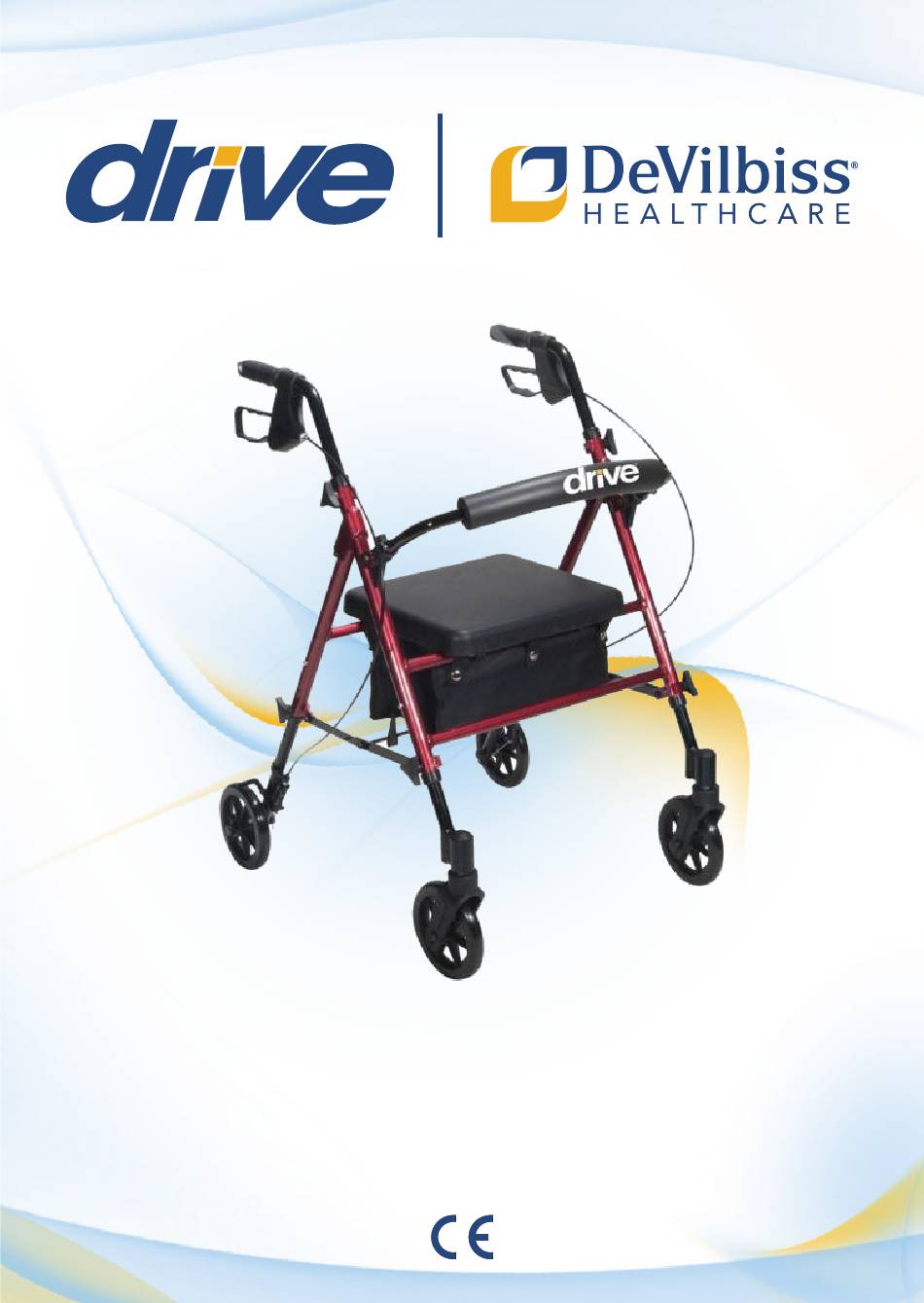

- Page 1 Height Adjustable Rollator Instruction Manual Please read these instructions before assembling or using this product.
-
Page 2: Table Of Contents
C O N T E N T S 1. Contents 7. Adjustments for 2. Introduction Comfort 3. Parts Description 8. Brake Operation 4. Personal Safety 9. Care & 5. Assembly Maintenance 6. Folding 10. Specification 11. Warranty I N T R O D U C T I O N The Drive lightweight 4-wheeled rollator is designed to aid the user to walk and, as an option, carry items such as shopping. -
Page 3: Parts Description
P A R T S D E S C R I P T I O N... -
Page 4: Personal Safety
P E R S O N A L S A F E T Y • For your health and comfort, make sure that you adopt a comfortable posture and that you can operate the brakes with ease. • Ensure that the handles are at equal heights and securely locked in position. -
Page 5: Assembly
A S S E M B L Y 1. Remove all contents from carton 2. Open the frame and place up-side-down on the floor. Attach the front legs, with the castors on, to the front of the rollator by pushing in the Height Adjustment Button and inserting the leg into the receptacle, to the required height. -
Page 6: Folding
6. Attach the padded back rest by pressing in the black thumb buttons and sliding the frame into the plastic back rest receivers. F O L D I N G • To fold the rollator for transporting, lift up the seat and pull the black strap whilst holding the rollator handles, lifting... -
Page 7: Adjustments For Comfort
A D J U S T M E N T S F O R C O M F O R T • HANDLE HEIGHT To adjust the height rollator handles, unscrew the knobs at either side of the rollator, anticlockwise. Adjust the height of the rollator handles to suit the user and... - Page 8 • SEAT HEIGHT The seat height is set by the position of the legs on the rollator. 1. Loosen the Height Adj Knob (A) by turning anticlockwise and remove. 2. Press the Height Adj Button (B) and adjust the leg until it locks to the required height.
-
Page 9: Brake Operation
B R A K E O P E R A T I O N To operate the cable brakes: • Squeeze the brake lever up to engage the brake (in the direction shown by the grey arrow). To lock the brakes, push down on the brake lever until it locks (as shown by the black downwards arrow in the photo). - Page 10 C A R E A N D M A I N T E N A N C E • Ensure the rollator is used only as an aid for mobility. • Ensure the rollator is kept clean. Wipe down the rollator with a damp cloth on a regular basis.
-
Page 11: Specification
S P E C I F I C A T I O N R8RDHA / R8BLHA Dimensions 68–79 x 62 x 79–99cm 27-31” x 24.5” x 31”–39” (L x W x H) (cm/in) Dimensions folded 95-119 x 62 x 31cm 37.5-47”... - Page 12 If you have any queries or require full warranty conditions, please contact your Drive stockist. Drive DeVilbiss Healthcare Ltd is an ISO 9001 certified company. For more details about our products please see your local dealer. Symbol Definitions...
