Summary of Contents for DeVilbiss drive WA023SIL

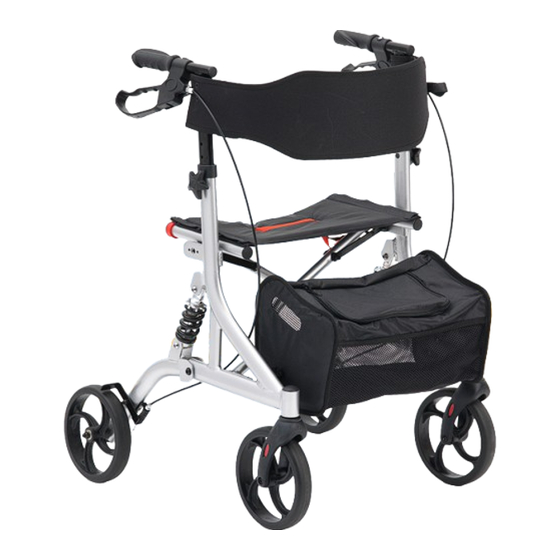

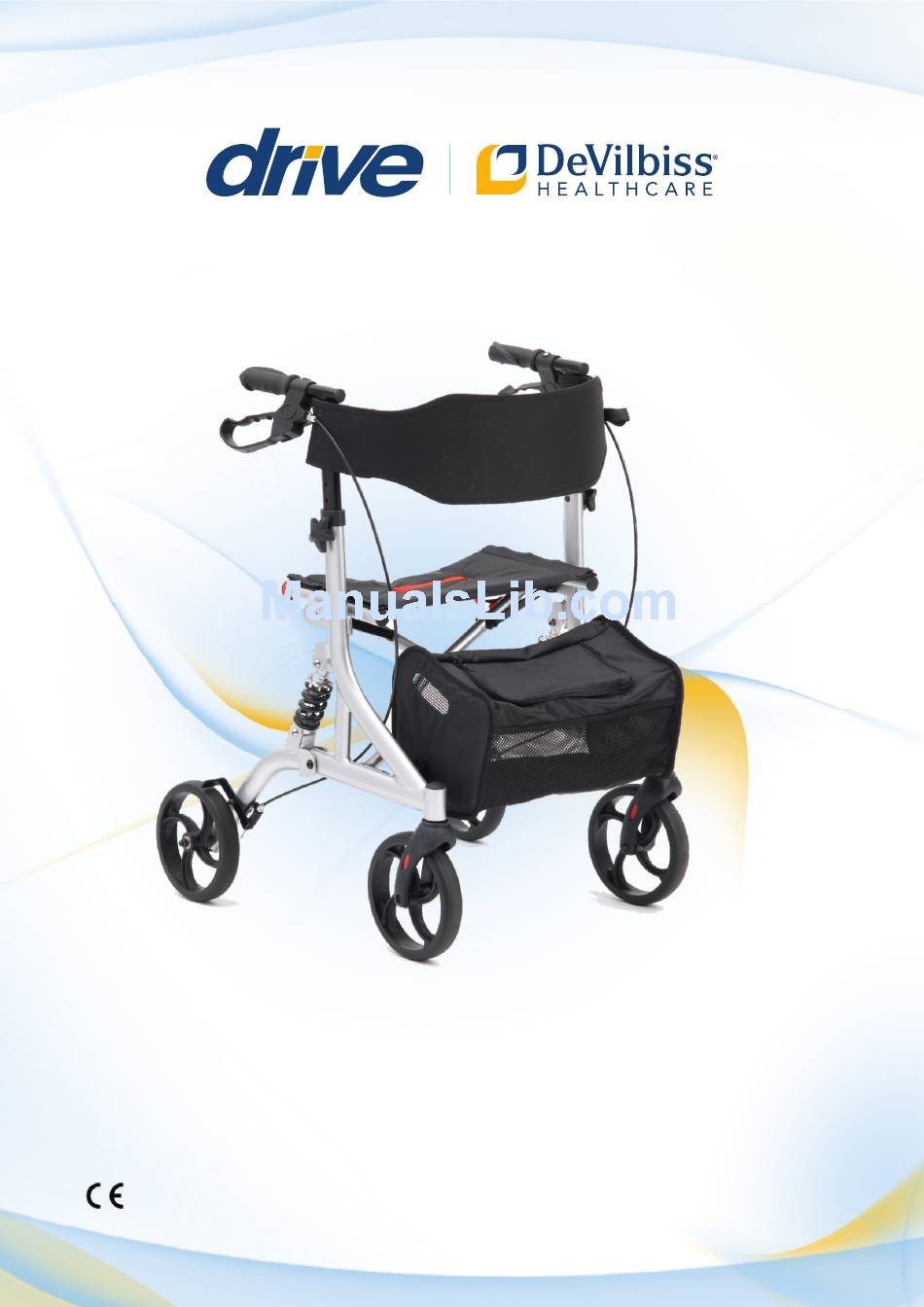

- Page 1 Suspension Rollator User Manual...
- Page 2 Parts list WEIGHT CAPACITY: 21 st (136 KG) 7. Seat Handgrip Adjustable tubing handgrip Front wheel Rear reflector on handgrip 10. Rear wheel Brake lever 11. Cane Holder Interlock bu on for handgrips Backrest...
- Page 3 Introduc on The Walking aid is suitable for a single user with limited mobility. The Rollator is ideal for indoor and outdoor use. It is CE marked as a medical device under EEC/93/42. Some models may differ slightly from models shown i n the Please Note: user manual, i.e.
- Page 4 A ach the bag to the frame by sliding the bag on to the brackets located on the inside of the frame by the front wheels. NOTE: Fold the Rollator slightly to make it easier to install the bag. A ach the backrest by fastening the Velcro straps around the handle and ecuring it by ghtening the 4mm allen screw located on the outside of the handle.
- Page 5 Height Adjustment 6. Undo the ghtening knob on the outside of the frame and move the handles up or down to the required height. Tighten the knobs back up making sure the handles are secure. Braking/ Locking Pull both brake levers upwards to apply the brakes while the Rollator is moving.
- Page 6 Si ng Posi on the Rollator on an even and solid surface. Lock the brakes (parking posi on). The Rollator must stand and must not slip. Sit straight up and do not lean backwards. DO NOT MOVE ROLLATOR WHILE SEATED. Folding / Transport / Sto rag e To fold, pull seat upwards by the red handle on the seat plate.
- Page 7 Safety Instruc ons • Use only as a walking aid! • Use only on even and solid surfaces. • Maximum user weight: 136 kg (21 stone) • Regularly check the screws and fasteners on the rollator and re- ghten if necessary. •...
- Page 8 This does not affect your statutory rights. The rollator is manufactured by: Drive DeVilbiss Healthcare Ltd (BD11 2HW)
