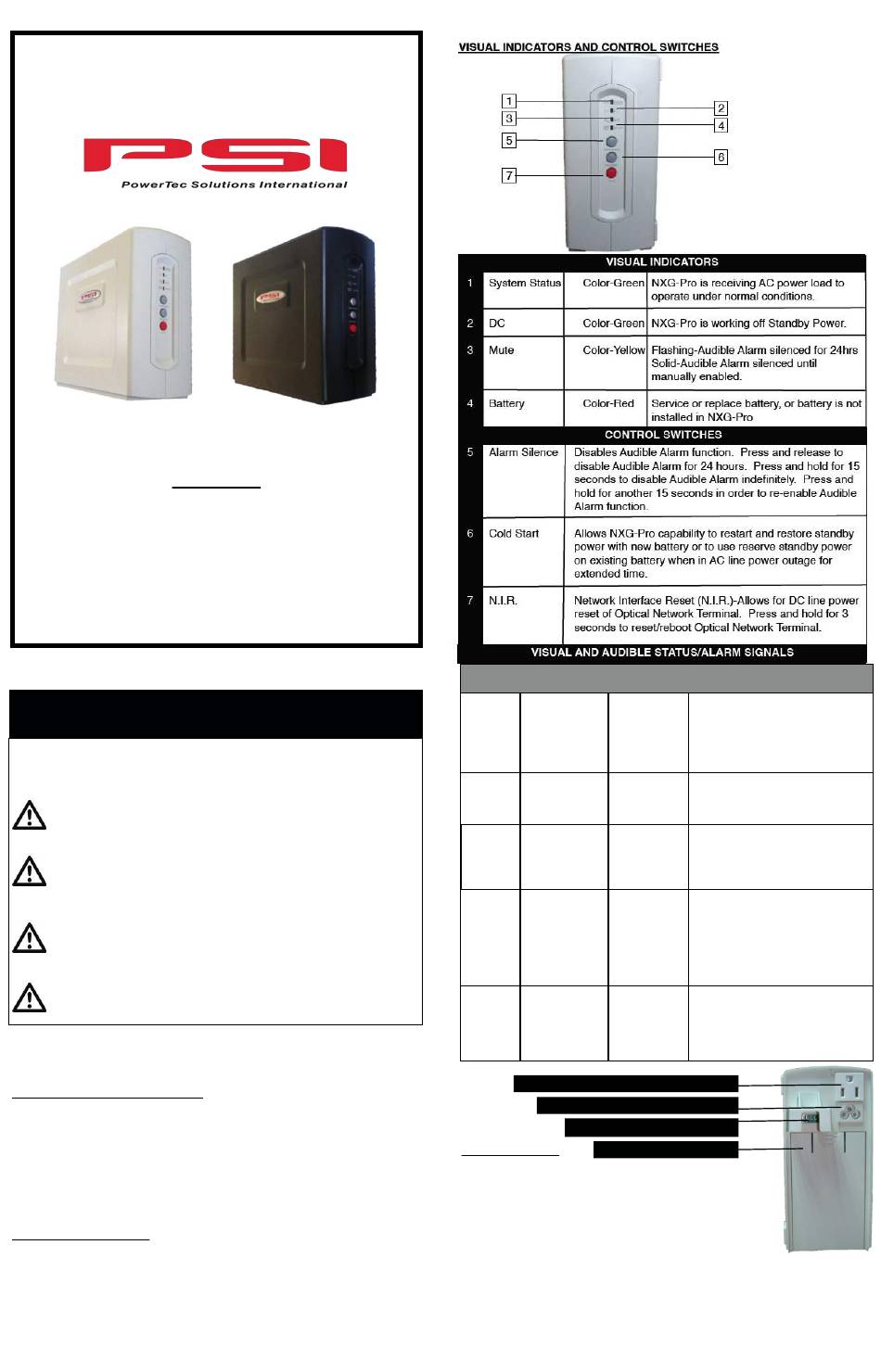

PSI NXG-Pro PS1236DT User Manual

USER'S MANUAL FOR

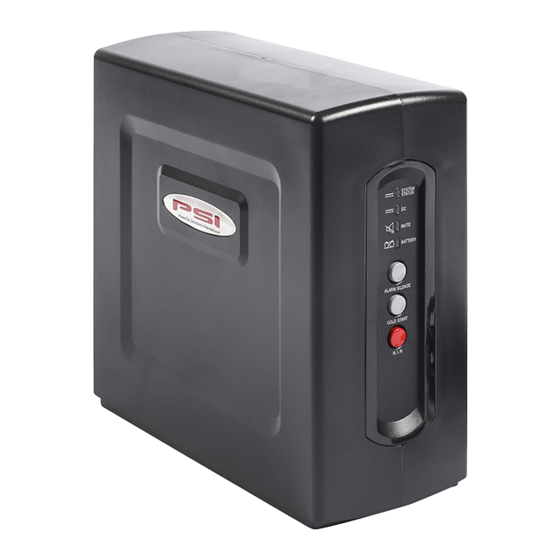

NXG-Pro
(Next Generation Desktop Power Supply/UPS)
Model Number: PS1236DT
Review the following important safety warnings to avoid bodily injury or damage
to equipment during installation or operation of this device.
Read ALL instructions before attempting to install or operate this device.
This device is intended for indoor use only. To prevent the risk of fire or
eletrical shock, install in dry location free from damp or wet environment,
or potentially damp or wet environment.
Adhere to all acceptable operating environment limitations as listed to
prevent the risk of of fire or electrical shock (see user specifications within
User's Manual)
Risk of fire or explosion if improper battery is installed and attempted to
operate within this device. Device is rated and approved for use with
standard sealed lead acid battery rated at 12Vdc 7Ah-8Ah. Follow User
Manual instructions for proper installation of battery. Dispose of used
batteries in accordance to battery manufacturer specifications.
NO user-replaceable parts within this device except the battery. Do not
remove cover unless you are installing, replacing, or servicing the battery.
NOTE: The reference to "NXG-Pro" within this User Manual refers to PowerTec
Solutions Model PS1230DT (Next Generation Desktop Power Supply/UPS) and
all package accessories as listed below.
CONTENTS OF NXG-Pro PACKAGE
NOTE: Please verify all standard contents are accounted for upon receipt of
NXG-Pro.
STANDARD: (1) Desktop Power Supply/UPS; (1) Cable Guide; (1) AC Power
Cord; (3) Cable Ties; (1) 7-Pin Connector; (1) User's Manual; (1) Wall-mount
installation template
Optional: (1) 3M Telemetry Wire (associated with Model PS1230DT-3M), or (1)
10M Telemetry Wire (associated with Model PS1230DT-10M).
NXG-Pro INTRODUCTION
NXG-Pro is designed and intended for use as Desktop or Wall-mount DC power
supply and battery back up device for Indoor and Outdoor 12Vdc Optical
Network Terminals (ONT) as well as wireless local loop applications. The NXG-
Pro not only provides constant supply of DC power during normal operating
conditions, but offers battery backup power in case of electrical power outage
when paired with approved standby battery. NXG-Pro also provides customer
facing Network Interface Reset Intelligence to provide integrated ONT reset
technology designed to reduce Provider OPEX.
WARNINGS
VISUAL AND AUDIBLE STATUS/ALARM SIGNALS
STATE VISUAL AUDIBLE
INDICATOR INDICATOR
Normal System Status
Indicator On
ON DC Indicator On
Battery
Replace Battery Indicator 1/2 second
Battery On
indicator every
Battery Battery Indicator
Missing On
Low DC Indicator 1/2 second
Battery Flashes
indicator 4
times per
Pass Through AC Output Plug
AC Input Power Cord Connector
DC Output/Telemetry Connector
INSTALLATION
DESKTOP USE:
A. Slide battery door down and located on rear of NXG-Pro
and install battery. Intall red wire to red battery terminal and
black wire to black battery terminal. Note: 90 degree red
terminal connector prevents ability to miswire. Battery
installation is optional. NXG-Pro will operate without battery
as long as AC line power is present and connected.
B. Connect NXG-Pro power cord to NXG-Pro power cord connector point
C. Plug NXG-Pro power cord in to AC wall outlet
D. Connect 7-pin DC Power/Telemetry Wire in to DC Output/Telemetry Connector
DESCRIPTION
Operating under normal AC line
power load and conditions, charges
battery. Battery is connected and in
good condition.
AC line power failure or AC cord
disconnection. NXG-Pro is being
supplied with battery power.
Replace faulty or end of life battery
audible
15 min
NXG-Pro is operating on AC line
power only without available stanby
power for outage scenario. When
battery is removed from unit,
battery indicator will illuminate after
15 sec.
Battery has reached equal to or
audible less than 45% remaining capacity
on battery discharge.
minute
Battery Door
