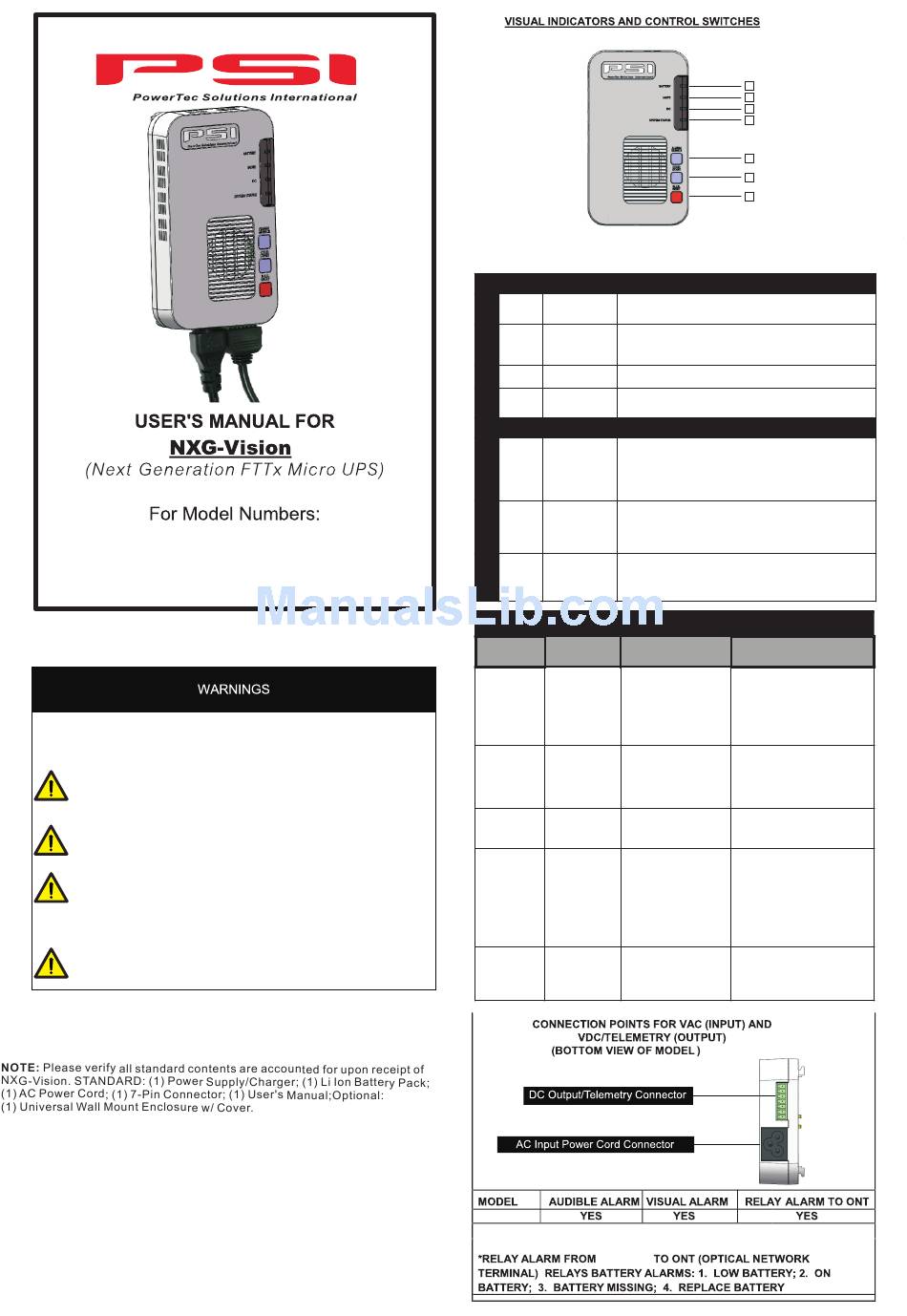

PSI NXG-Vision PS36L-P7 User Manual

Review the following important safety warnings to avoid bodily injury or damage
to equipment during installation or operation of this device.
Read ALL instructions before attempting to install or operate this device.
This device is intended for indoor use only. To prevent the risk of fire or
eletrical shock, install in dry location free from damp or wet environment,
or potentially damp or wet environment.
Adhere to all acceptable operating environment limitations as listed to
prevent the risk of fire or electrical shock (see user specifications
within User's Manual)
Risk of fire or explosion if improper battery pack is installed and
attempted to operate with this device. Device is rated and approved for
use with PowerTec Solutions Internation Li Ion Battery Pack ONLY.
Follow User Manual instructions for proper installation and removal of
battery pack.
NO user-replaceable parts within this device. Do not remove cover for
any reason.
NOTE: The reference to "NXG-Vision" within this User Manual refers
to PowerTec Solutions Models PS36L-K7 (Next Generation FTTx Micro UPS)
and all package accessories as listed below.
NXG-Vision INTRODUCTION
NXG-Vision is designed and intended for use as Desktop or Wall-mount
(when ordered with optional Universal )DC power supply and battery
back up device for Indoor 12Vdc Optical Network Terminals (ONT).
The NXG-Vision not only provides constant supply of DC power during
normal operating conditions, but offers battery backup power in case of
electrical power outage. NXG-Vision also provides customer facing
Network Interface Reset Intelligence to provide integrated ONT reset
technology designed to reduce Provider OPEX.

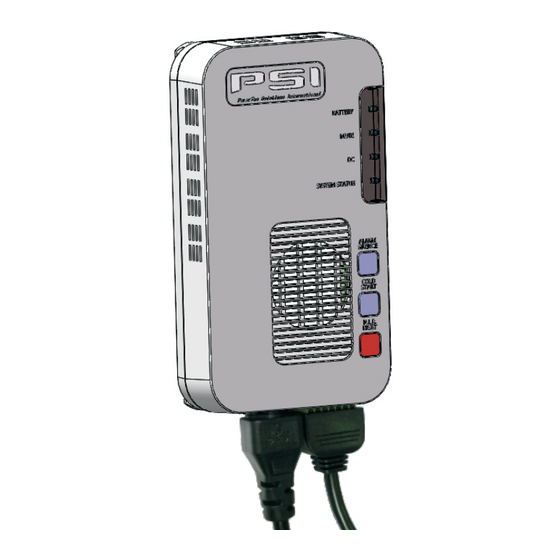

PS36L-P7

VISUAL INDICATORS

Service or replace battery
1
-
Battery Color Red
installed in NXG-Vision.
Flashing Audible Alarm silenced for 24hrs.
Mute Soid- Audible Alarm Silence Until manually
2 Color-Yellow
enable.
3 - -
DC Color Green NXG Vision is working off Standby Power.
-
System NXG Vision is Recieving AC power load to
4
Color- Green
Status operate under normal conditions.

CONTROL SWITCHES

Disables Audible Alarm function. Press and release
to disable Audible Alarm for 24 hours. Press and hold
Alarm
5 for 15 seconds to disable Audible Alarm indefinitely.
Silence
Press and hold for another 15 seconds in order to
re-enable Audible Alarm function.
Allows NXG Vision to cold start power off
Cold
Battery Pack when AC line power is not
6
Start
present and new or replacement pack is
connected,press and hold for 3 seconds.
Allows for DC line power reset of optical
N.I.R.
Network terminal.Press and hold for 3
7
Reset
seconds to reset/ reboot optical newwork
terminal.

VISUAL AND AUDIBLE STATUS/ALARM SIGNALS

VISUAL
STATE
INDICATOR INDICATOR
System
Normal Status
Indication On
DC
ON Battery
Indicator On
/
1 2 second audible
Replace Battery
indicator every 15
Battery Indicator On
min.
Battery Battery
Missing Indicator On
/
1 2 second audible
DC Indicator
Low Battery indicator 4 times
Flashes
per minute.
PS36L-P7
PS36L-P7
1
2
3
4
5
6
7
,
or battery is not
-
-
AUDIBLE
DESCRIPTION
Operating under normal AC
line power load and
conditions,
charges battery. Battery is
connected and in good
condition.
AC line power failure
or AC cord
disconnection. NXG-
Vision is being supplied
with battery power.
Replace faulty or end of
life battery.
-
NXG Vision is operating
on AC line power only
without available
stanby power for outage
scenario. When battery
is removed from
unit, battery indicator will
illuminate after 5 sec.
Battery has reached equal
to or less than 30%
remaining capacity on
battery discharge.
