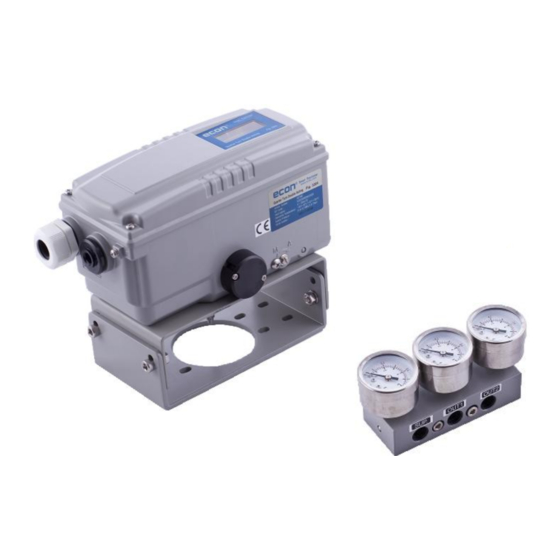

- Page 1 Installation and Operating manual ® Econ Series 3300 Smart Valve Positioner Version 2 ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
-
Page 2: Table Of Contents
Safety ..........................16 4.5.2 Terminal Overview ......................17 4.5.3 Ground ..........................17 ADJUSTMENTS ..........................18 (A/M S ) ..................18 ANUAL WITCH WITCH ....................18 ARIABLE RIFICE DJUSTMENT PCB A ....................... 19 PTION DJUSTMENT ® Econ Series 3300 Smart Valve Positioner www.eriks.com... - Page 3 View Mode (VIEW) ......................31 ERROR AND WARNING CODE ....................32 ..........................32 RROR CODE ........................33 ARNING CODE SOFTWARE MAP ....................... 34 CE DECLARATION OF CONFORMITY ..................35 MANUFACTURER CONTACT DETAILS: ................. 36 ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
-
Page 4: Introduction
Introduction General Information for the users ® Thank you for purchasing the Econ series 3300 Smart Valve Positioner. Each product has been fully inspected after its production to offer you the highest quality and reliable performance. Please read the product manual carefully prior to installing and commission the product. -
Page 5: Product Description
Product Description General ® Econ series 3300 Smart Valve Positioner accurately controls valve stroke in response to an input signal of 4-20mA from a process controller. An built-in micro-processor optimizes the positioner’s performance and provides unique functions such as Auto-Calibration, PID ®... -
Page 6: Product Number
Installation and Operating manual Product Number ** Figure 3301 can be used for direct-mounting application. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 7: Product Specification
® Communication HART Communication Feedback Signal 4~20mA (DC 10~30V) Material Aluminum Die-casting Weight 2.0kg Painting Epoxy Powder Coating Tested under ambient temperature of 20’C, absolute pressure of 760mmHg, and humidity of 65%. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 8: Parts And Assembly
Installation and Operating manual Parts and Assembly Figure 3301/3302 exploded view Figure 3303/3304 exploded view ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 9: Product Dimension
Installation and Operating manual Product Dimension Figure 3301/3302 Figure 3303/3304 ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 10: Installation
Assemble the positioner with the bracket supplied by fastening the bolts. Please refer to the back of the positioner for size of the bolts. The standard bolt size is M8. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... - Page 11 7. Insert the connection pin of the feedback lever in to the bar slide assembly. The pin should be inserted when the actuator clamp is at 50% of the total valve stroke. ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
- Page 12 Feedback lever should not touch lever stopper 0% ~ 100% valve stroke. 10. After the installation, tighten all of the bolts on the bracket, the feedback lever, and the connection pin. ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
-
Page 13: F 3301 D -M I
2. Mount figure 3301 onto actuator’s yoke by using 2 bolts. As you mount the positioner, please be careful not to lose O-rings from the air channel. Please ensure that the lever adapter connection has been properly installed onto actuator’s stem before tightly fastened. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 14: Bracket Information
20 mm stem height (H). If actuator stem height (H) is 30 mm or 50 mm, the bracket must be adjusted. Please refer to below table how to adjust the bracket. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 15: Connections
Pipeline should have more than 6mm of inner diameter (10mm outer diameter) to maintain flow rate. The length of pipeline system should not be extremely long. Longer pipeline system may affect flow rate due to the friction inside of the pipeline. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 16: Connection - Actuator
Please use insulated electrical connection ring-type lug to protect against vibration or any other external impact. Positioner with PTM options must be supplied 10~28V DC separately. It should not exceed 30V DC. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 17: Terminal Overview
4. When using internal ground, use 3mm wrench to loosen locking bolts of the terminal box cover. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 18: Adjustments
The size of orifice is Ø 1 mm. Please note that these orifices can only be used in conjunction with a gauge block. The orifices are supplied standard with the optional gauge block. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 19: Option Pcb Adjustment
1. Open the cover and remove the main PCB from the positioner. 2. Mount support PCB and plug sub-PCB into main PCB connector. Option Jumper ® ** Option Jumper must be removed, when HART option included sub-PCB is being mounted. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 20: Operation
To change display, push <ESC> + <UP> buttons at the same time. The display will change in the order indicated above. If <ESC> + <DOWN> pushed, the order will appear in reverse order. By pressing <ESC>, the display will return to “RUN” mode. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 21: Auto Calibration (Auto Cal)
AUTO2 changes all of the parameters. It is recommended to perform AUTO2 when the positioner has been installed on the valve for the first time. ⇨ ⇨ ⇨ <ENTER> <ENTER> <DOWN> 6 seconds ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 22: Manual Mode (Manual)
Dead-Zone indicates the percentage of error allowance. In case of high level of packing friction, which may cause hunting, creating Dead-Zone can stabilize the valve operation ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 seconds 2 times ® Econ Series 3300 Smart Valve Positioner www.eriks.com... - Page 23 I value indicates the additional compensation signal based on the percentage of error allowance. As the value increase, it is more likely to cause hunting. As the value decreases, the positioner will move slower to the target position. ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
-
Page 24: Hand Calibration Mode (Hand Cal)
PZ_ZERO adjusts the zero point of the valve, and PV_END adjusts the end point of the valve. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 seconds 3 times ⇨ ⇨ ⇨ <ENTER> <ESC> <UP>/<DOWN> Zero Adjustment <ENTER> ⇨ ⇨ ⇨ <DOWN> <ENTER> <UP>/<DOWN> End Adjustment <ENTER> ⇨ <ESC> ® Econ Series 3300 Smart Valve Positioner www.eriks.com... - Page 25 When reverse acting operating is used, End-Point can be adjusted within 10% of total valve stroke, without adjusting the valve’s zero point. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 4 times ⇨ ⇨ <ESC> <UP>/<DOWN) 3 times <ENTER> ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
- Page 26 ® HART signal from the positioner can be viewed as normal or as reverse. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 times Zero Adjustment ⇨ ⇨ ⇨ <DOWN> <ENTER> <ESC> 3 times ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
-
Page 27: Valve Mode (Valve)
The valve characteristic can be set on the field’s requirement. There are 3 types of characteristics – linear (LIN), equal percentage (EQ), and quick open (QO). ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> ⇨ ⇨ <ESC> <UP>/<DOWN> 3 times <ENTER> ® Econ Series 3300 Smart Valve Positioner www.eriks.com... - Page 28 Tight Shut Open allows the valve to open completely as the input signal reaches around 20mA. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 6 seconds 3 times ⇨ ⇨ <ESC> <UP>/<DOWN> 3 times <ENTER> ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
- Page 29 Custom Zero Setting Mode allows the user to set any specific point as zero position. For example, the zero point can be set at input signal of 7mA. ⇨ ⇨ ⇨ <ENTER> <ENTER> <DOWN> 6 times ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
- Page 30 For some instance, the angle exceeds the suggested range angle. Positioner can reduce the error through interpolation. ⇨ ⇨ ⇨ <ENTER> <DOWN> <ENTER> 8 times ⇨ ⇨ <ESC> <UP>/<DOWN> 3 times <ENTER> ® Econ Series 3300 Smart Valve Positioner www.eriks.com...
-
Page 31: View Mode (View)
Time elapsed for valve to fully close. VM NOR Type of valve stroke on LCD. (in percentage or in value) Erro Error code or warning message. VALUE I Current I value Absolute resistance value. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 32: Error And Warning Code
Changes in setting pressure of actuator. I-value reaches at maximum or minimum limit. Perform AUTO HF calibration. Changes in valve friction. Check setting pressure of actuator. Changes in setting pressure of actuator. ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 33: Warning Code
Ensure the feedback lever does not Pv is over 4000. touch the lever stopper at 0% and The angle of feedback lever is too large. 100%. After re-installation, perform AUTO1 ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 34: Software Map
Installation and Operating manual Software Map ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 35: Ce Declaration Of Conformity
Electromagnetic Compatibility Directive (2004/108/EC) Fabrikant: / Manufacturer: Handtekening gemachtigde: Authorized subscriber: Econosto Nederland bv F. Terol Cypresbaan 63 2908 LT Capelle aan den IJssel Holland Rev.0 13.02.2013 ® Econ Series 3300 Smart Valve Positioner www.eriks.com... -
Page 36: 10 Manufacturer Contact Details
Installation and Operating manual HART® is registered trademarks of the HART Communication Foundation 10 Manufacturer contact details: If you have questions about this product, Please contact the nearest ECON distributor. You can find them on www.eriks.com ® Econ Series 3300 Smart Valve Positioner...
