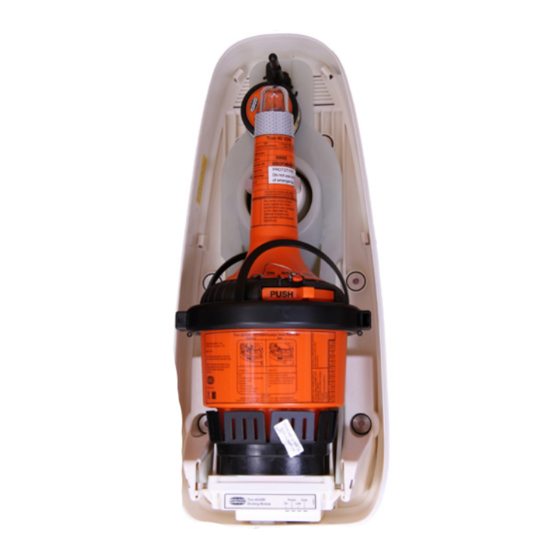

jotron Tron 40VDR User Manual

Float free emergency transmitter with vdr
Hide thumbs Also See for Tron 40VDR:
Table of Contents

Advertisement

Quick Links

USER MANUAL
Tron 40VDR
Float Free Emergency Transmitter with VDR
www.jotron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tron 40VDR and is the answer not in the manual?

Questions and answers

Related Manuals for jotron Tron 40VDR

Summary of Contents for jotron Tron 40VDR

  • Page 1 USER MANUAL Tron 40VDR Float Free Emergency Transmitter with VDR www.jotron.com...
  • Page 2 Tron 40VDR MANUAL OPERATION AND ACTIVATION It is not recommended to operate the beacon inside a life raft or under a cover or canopy. Do NOT tie the lanyard to the ship in distress, as this will prevent the unit to functioning if the ship sinks.

  • Page 3: Table Of Contents

    FIRST AID MEASURES ............17 2.6.3 FIRE FIGHTING MEASURES ........... 17 2.6.4 HANDLING AND STORAGE ............ 18 PARTS IN TRON 40VDR ............... 19 3.1 GENERAL .................... 19 3.2 BATTERY MODUL ................20 3.3 FLOAT FREE BRACKET ................ 20 INSTALLATION AND MOUNTING ............21 4.1 FB-40 BRACKET INSTALLATION AND MOUNTING ......
  • Page 4 Tron 40VDR SELF-TEST ................... 29 6.1 NORMAL SELF-TEST ................29 6.2 EXTENDED SELF-TEST INCLUDING GPS-TEST ........30 6.3 EPIRB SELF-TEST INDICATION ............30 PERIODICAL CONTROL AND MAINTENANCE ........31 7.1 EVERY MONTH ................... 31 7.2 EVERY 12 MONTHS ................32 7.3 EVERY 2...
  • Page 5 Tron 40VDR...
  • Page 6 However, no responsibility is assumed for inaccuracies. This equipment contains CMOS integrated circuits. Observe handling precautions to avoid static discharges which may damage these devices. Jotron reserves the right to make changes without further notice to any products or modules described herein to improve reliability, function or design.
  • Page 7 This product is warranted against factory defects in material and workmanship for a period of 5 years from date of purchase. During the warranty period Jotron will repair or, at its option, replace the unit at no cost to you for labour, materials and return transportation from Jotron or Its subsidiaries.
  • Page 8 Tron 40VDR...

  • Page 9: General Description

    (HRU) which will release the Tron 40VDR if the bracket is submerged to a depth of 2-4 meters if the ship are about to sink. The purpose of the Tron 40VDR is to give a primary alarm to the search and rescue authorities. The EPIRB gives an immediate alarm when activated, transmitting the ID of the ship in distress.

  • Page 10: Epirb Control Functions

    In addition several geostationary satellites are equipped with a 406 MHz transponder, these satellites will receive the GPS position from the Tron 40VDR and give an early warning to the rescue forces, minimising the time from an emergency occurs till the...

  • Page 11: Signal Detection

    Tron 40VDR, is correct. It is also important that your EPIRB is registered in the data- base for each country. This database is normally located in the same country that the ship is registered.

  • Page 12: Gps Advantage

    Tron 40VDR 1.3.3 GPS ADVANTAGE Tron 40VDR has been designed to operate with the Cospas-Sarsat system and will enhance further the lifesaving capabilities of conventional beacons. Please see picture on next page for comparison between Tron 40VDR and EPIRB without GPS depending on detection by polar orbiting or geostationary satellites.

  • Page 13: Epirb Registration

    Tron 40VDR 1.3.4 EPIRB REGISTRATION Normally the MCC will contact the vessel or the contact person registered in a shipping register and/or an EPIRB register (Ships owner, family member etc.) before alerting the RCC. This is to determine if the alarm from the EPIRB for some reason is a false alarm, and an expensive rescue operation can be avoided.
  • Page 14 Tron 40VDR...

  • Page 15: Technical Specifications

    Tron 40VDR TECHNICAL SPECIFICATIONS GENERAL Battery: Primary Lithium-Thionyl Chloride, 7.2V/ 18Ah, 5 years service life Housing material: Glass reinforced Polycarbonate Dimensions: • Weight: 1.9 kg • Height: 400 mm • Max diameter: 200 mm Compass safe distance: 0,8 m Temperature operating: -20°C to + 55°C (-4°F to +131°F)

  • Page 16: Homing Transmitter

    Dimensions (H/L/W): 215mm / 553mm / 236mm Weight: 2.9 kg Release mechanism: Jotron HRU kit (part. no. 86218) Temperature operating: -40°C to + 70°C (-40°F to +158°F) Temperature storage: -40°C to + 70°C (-40°F to +158°F) BATTERY SAFETY DATA SHEET...

  • Page 17: First Aid Measures

    Tron 40VDR 2.6.2 FIRST AID MEASURES Ingestion: Do not induce vomiting or give food or drink. Seek medical attention immediately. In USA: call National Battery Ingestion Hotline (202-625-3333). For other countries: http://www.who.int/gho/phe/chemical_safety/poisons_centres to find the contact information. Inhalation: Provide fresh air and seek medical attention.

  • Page 18: Handling And Storage

    Tron 40VDR 2.6.4 HANDLING AND STORAGE Storage: Store in a cool, well ventilated area. Elevated temperatures can result in shortened battery life. In locations that handle large quantities of lithium batteries, such as warehouses, lithium batteries should be isolated from unnecessary combustibles.

  • Page 19: Parts In Tron 40Vdr

    Tron 40VDR PARTS IN TRON 40VDR GENERAL THE DIFFERENT PARTS OF THE TRON 40VDR: 1. Front cover 2. Tron 40 VDR Float-Free Capsule (EPIRB capsule) 3. Storage module (FRM – Final recording Medium) 4. Bracket 5. Hydrostatic release 6. Stability-bracket 7.

  • Page 20: Battery Modul

    (HRU) releases the EPIRB from the bracket when reaching 2-4 meter below sea-level. The HRU is type approved by Jotron and special adjusted to the FB40 includes a special bolt with adjusted fittings. This module is supplied as a HRU-Kit.

  • Page 21: Installation And Mounting

    Tron 40VDR INSTALLATION AND MOUNTING FB-40 BRACKET INSTALLATION AND MOUNTING See Jotron “Tron 40VDR FF Capsule Installation Manual” for installation. The Tron 40VDR Float Free Capsule should be installed in a location guided by COMSAR.Circ 32 (Chapter 4.10) http://www.imo.org/blast/blastDataHelper.asp?data_id=10750 WARNING: Do not install the EPIRB near strong magnetic fields that could activate the beacon.

  • Page 22: Verify Capsule In The Bracket

    If the bracket is mounted incorrect or on a non-flat surface the bracket will be in tension and the Tron 40VDR Capsule may not have good contact with the docking module in the lower part of the bracket. If there is a gap, between docking Module...
  • Page 23 Tron 40VDR Fig. 2: Verify there is no gap between Docking module and Storage module. If all the above instructions are taken into account when mounting the Tron 40VDR, a fault free system should be the result!

  • Page 24: Fitting The Front Cover

    Tron 40VDR 4.2.2 FITTING THE FRONT COVER To place the front cover; the following steps should be followed:  Fit the groove on the front cover with the tap on the bracket.   After aligning the tongue and groove the front cover can be closed.
  • Page 25 Tron 40VDR   Make sure the safety clip is mounted correct way. The front cover is sealed Firmly press the front cover in place correct. before fitting the safety clip though the hole in the hydrostatic release. If the hole...

  • Page 26: Operation Instructions

    If possible, keep the EPIRB in an open area and away from any metal objects (ship construction etc.) that may limit the satellite coverage. NOTE: To stop transmission, take Tron 40VDR out of the water and move the main switch to READY position.
  • Page 27 Tron 40VDR      ...

  • Page 28: Automatic Operation - Float Free Bracket Fb-40

    Tron 40VDR AUTOMATIC OPERATION - FLOAT FREE BRACKET FB-40 1. The Tron 40VDR will automatically release from the brackett at a depth of 2-4 meters (6-13 feet), and start to transmitt when reaching the surface. 2. Transmission will continue until the EPIRB is lifted out of the water, and dried off.

  • Page 29: Self-Test

    There are two different kinds of tests that can be performed: Normal self-test. Extended self-test including the GPS. Jotron AS recommends the Tron 40VDR Float Free Capsule to be tested every month. This test involves both the self-test and GPS-test. Note: The extended self-test are to 60 for a period of 5-year.

  • Page 30: Extended Self-Test Including Gps-Test

    To perform an extended self-test, do the following: 1. Release the front cover by removing the safety clip. 2. Take the Tron 40VDR float free capsule out of the bracket. 3. Move the switch gently to TEST position twice within 3 seconds and release back to READY position.

  • Page 31: Periodical Control And Maintenance

    - Check for defects on the Tron 40VDR, both EPIRB and bracket - Make sure that the Tron 40VDR are not painted or otherwise covered with chemicals, oil, etc - Check that the lanyard is firmly attached to the Tron 40VDR float free capsule (and not tied to the vessel) •...

  • Page 32: Every 12 Months

    Tron 40VDR EVERY 12 MONTH The Tron 40VDR Float Free Capsule is under the regulation of the IMO MSC.1/ Circ 1040 rev.1 requires annual testing performed by authorized radio-surveyor or authorized personal trained and certified by Jotron. Additional requirement for testing Tron 40VDR Float Free Capsule is IMO MSC.1/ Circ.1222.

  • Page 33: Every 2 Nd Year

    Mark new expiry date on label. EVERY 4 OR 5 YEARS The Tron 40VDR Float Free Capsule is under the regulation according to SOLAS Chap.IV reg.15.9.2 and IMO MSC.Circ 1039 guideline. The Tron 40VDR Float Free Capsule will comply to this guideline, either by fulfilling the complete service or be replaced by an exchange unit.

  • Page 34: Hydrostatic Release Unit Replacement

    Tron 40VDR HYDROSTATIC RELEASE UNIT REPLACEMENT WARNING: Only Jotron HRU kit is acceptable for use. Check expiry date to be valid. 7.6.1 REPLACING THE RELEASE MECHANISM FB40-BRAKET 1. Release and remove FB-40 top cover. 2. Remove the EPIRB from the bracket.
  • Page 35 Tron 40VDR  ...

  • Page 36: Test And Maintenance Record

    Tron 40VDR TEST AND MAINTENANCE RECORD N= New EPIRB installed, T= Test, B= New battery DATE N/T/B SIGN INSP...

  • Page 37: False Alert

    Tron 40VDR FALSE ALERT False alerts transmitted by EPIRB False alerts are a serious problem for the rescue service. Nearly 90% of EPIRB initiated distress alerts turn out to be false alarms. If for any reason, your EPIRB should cause a false alarm, it is most important that you contact the nearest search and rescue authority and tell them it was a false alarm.

  • Page 38: Warranty And Service

    Tron 40VDR WARRANTY AND SERVICE The warranty period for a new Tron 40VDR Float Free Capsule is valid for 5 years from the date the product is shipped from Jotron. If you have a product and are unclear about your warranty period contact your sales partner.

  • Page 39: Service Agents

    Tron 40VDR SERVICE AGENTS Please look at: www.jotron.com for Maritime Service Agents. Jotron Group Head Office: From 2020: Jotron AS Jotron AS Østbyveien 1 Ringdalskogen NO-3280 Tjodalyng NO-3270 Larvik Norway Norway Tel: +47 3313 9700 Tel: +47 3313 9700 Fax: +47 3312 6780 Fax: +47 3312 6780 E-mail: sales@jotron.com...
  • Page 40 Tron 40VDR...

  • Page 41: Abbreviations And Definitions

    Tron 40VDR ABBREVIATIONS AND DEFINITIONS BAUD Transmission rate unit of measurement for binary coded data (bit per second). Short form of Binary Digit. The smallest element of data in a binary-coded value. Bits Per Second. COSPAS COsmicheskaya Sistyema Poiska Avariynich Sudov.
  • Page 42 Tron 40VDR NOAA National Oceanic and Atmospheric Administration (USA). Rescue Coordination Centre. SARSAT Search and Rescue Satellite-Aided Tracking System. Shore Based Maintenance – as required by SOLAS regulation IV/15.9.2 of SOLAS 1974 as amended with, in accordance with MSC/Circ. 1039 guidelines for Shore-Based Maintenance (SBM) of Satellite EPIRBs within 5 years if: Passenger ships (>...

  • Page 43: Amendment Records

    Tron 40VDR AMENDMENT RECORDS Vers Date Reason 07.05.2014 New Manual 06.06.2014 Text adj. chapter 2.2 and 4.2 29.10.2014 Added new spare P/N 22.12.2014 Front/back covers, added 1.2 Not released Updated mounting description of cover. Updated 22.10.2018 ØB operation instructions. New layout and minor...
