Veils requires a -12V / +12V power supply (2x5 pin connector). The red stripe of the ribbon cable (-12V
side) must be oriented on the same side as the "Red stripe" marking on the board. The module draws
50mA from the -12V rail and 50mA from the +12V rail. Current consumption can reach 70mA on either rail
depending on the color and brightness of the LEDs.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This device meets the requirements of the following standards: EN55032, EN55103-2,
EN61000-3-2, EN61000-3-3, EN62311.

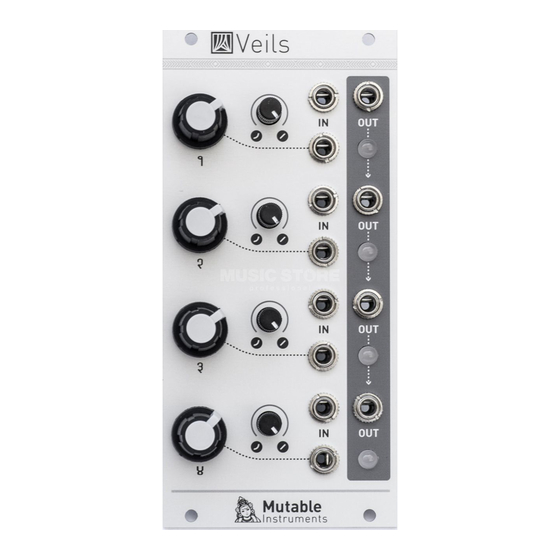

Veils provides four VCAs with an adjustable response curve. Veils' outputs are daisy-chained, allowing
adjacent groups of 2, 3, or all 4 channels, to be mixed together.
Mutable Instruments | Veils
1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mutable Instruments Veils
Summary of Contents for Mutable Instruments Veils

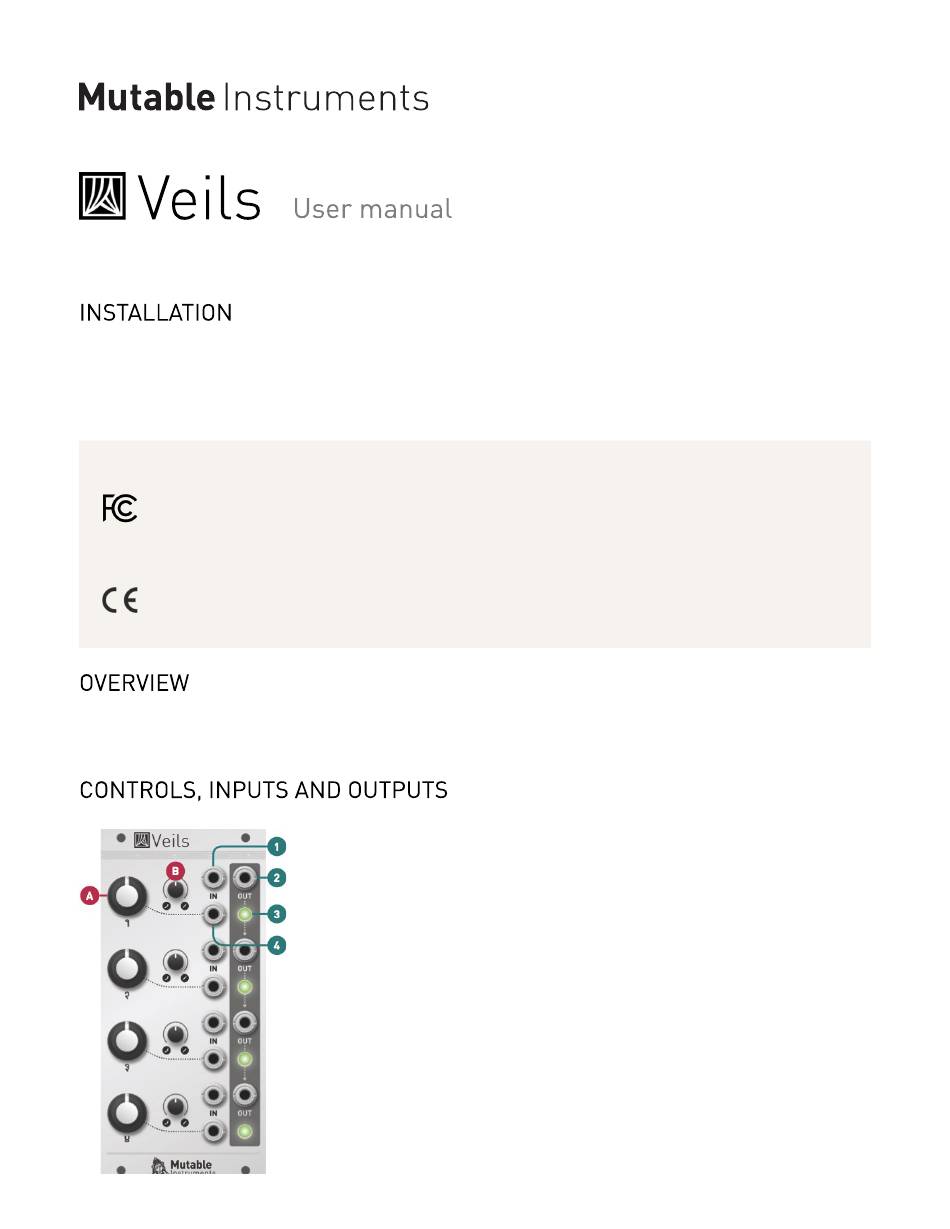

- Page 1 Mutable Instruments | Veils Veils requires a -12V / +12V power supply (2x5 pin connector). The red stripe of the ribbon cable (-12V side) must be oriented on the same side as the “Red stripe” marking on the board. The module draws 50mA from the -12V rail and 50mA from the +12V rail.
- Page 2 CV input. When this knob is turned fully clockwise, a CV of +5V yields a gain of 1 (0dB), and a CV above +5V might cause distortion. Veils does not provide any offset control - a module like Shades or Blinds can be used to pre-process the gain CV to offset it.
- Page 3 Mutable Instruments | Veils 3 of 3...
