Summary of Contents for Blue Wave NE1142

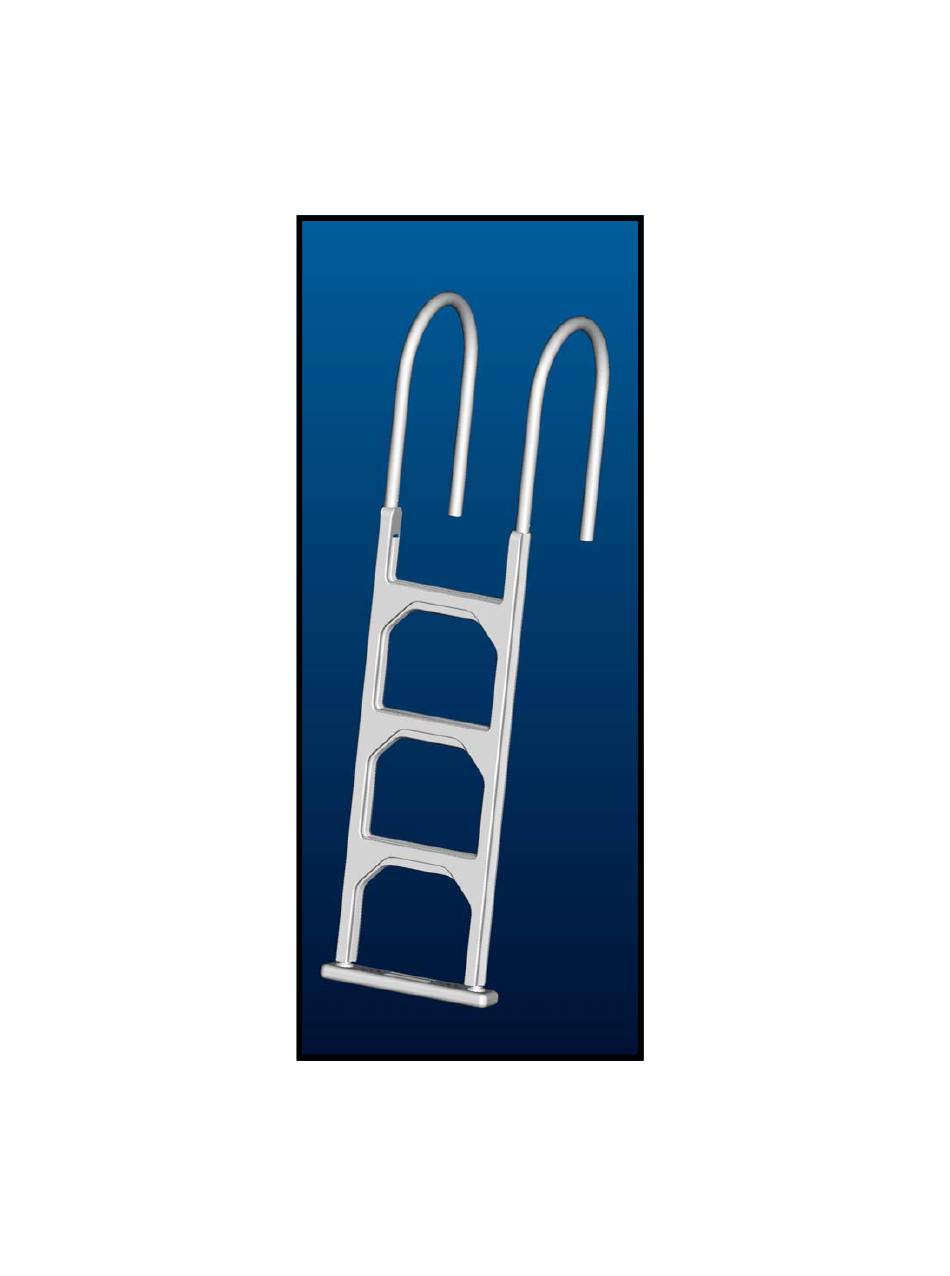

- Page 1 Compliments of www.poolsandstuff.com RESIN IN POOL LADDER MODEL NE1142 ASSEMBLY INSTALLATION INSTRUCTIONS...
- Page 2 Compliments of www.poolsandstuff.com Parts Identification STEP 1 Unpack box and check parts against parts list below. BS STPBALL BS ALRAIL BS BOTSTEP BS 210HDW Contents: 2– Screws 2– Wahsers BS IPSTEP 2– Cap Nuts PARTS LIST QUANTITY PART # DESCRIPTION NEP1981 ALUMINUM HAND RAIL NEP1983...
- Page 3 Compliments of www.poolsandstuff.com STEP 2 Slide each of the aluminum • handrails over the posts on the step assembly. See figure 1 If you have any difficulty • sliding the step onto the post apply a small amount of oil to the posts.
- Page 4 Compliments of www.poolsandstuff.com STEP 3 • Slide 1 pivot ball onto the bottom of each base post as shown in figure 3 • Make sure both pivot balls are securely fastened to each handrail. Figure 3 STEP 4 • Place the bottom step on the floor facing up •...
