Operation Manual
Ultrasonic flaw detector А1214 EXPERT
the memory, as well as view and delete saved snapshots.
In the SETTING mode the user can select and configure the parameters of the instrument settings. Always start working
with a new testing object in this mode.

1.3.5 Display of information on the screen

A color TFT display (640х480) indicates the measurement results and service information required to control the instrument.

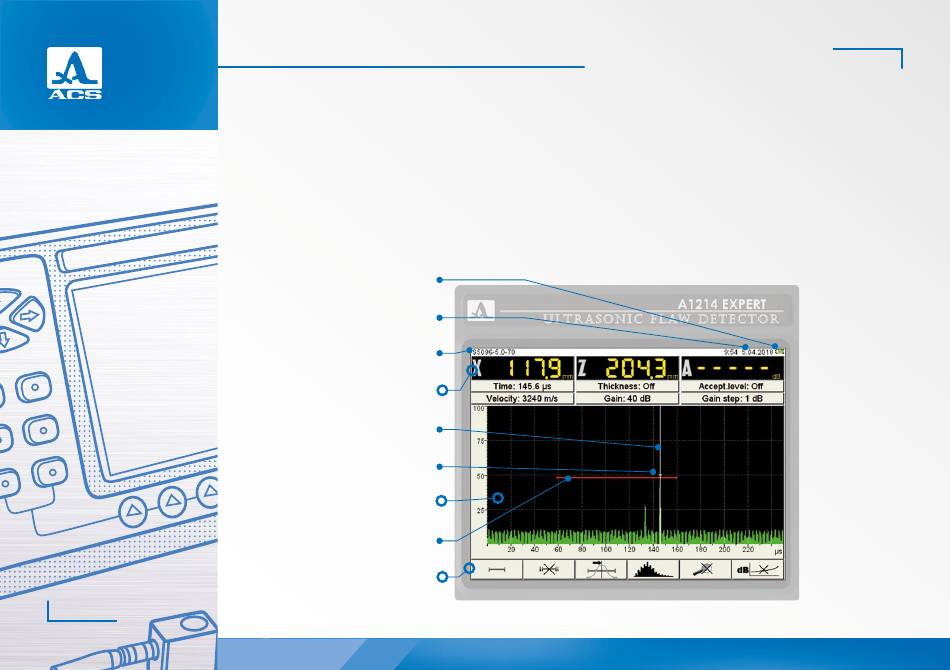

The workspace of the screen is divided into several functional areas in each mode. In the Figure 4 the display in the FLAW
DETECTOR operating mode is shown.
Indicator of the accumulator
charge level
Current date and time
Name of the of the configuration
Panel of measurement results
Measuring cursor
Marker
Display area of signal
First strobe
Menu of icons
10
Figure 4
