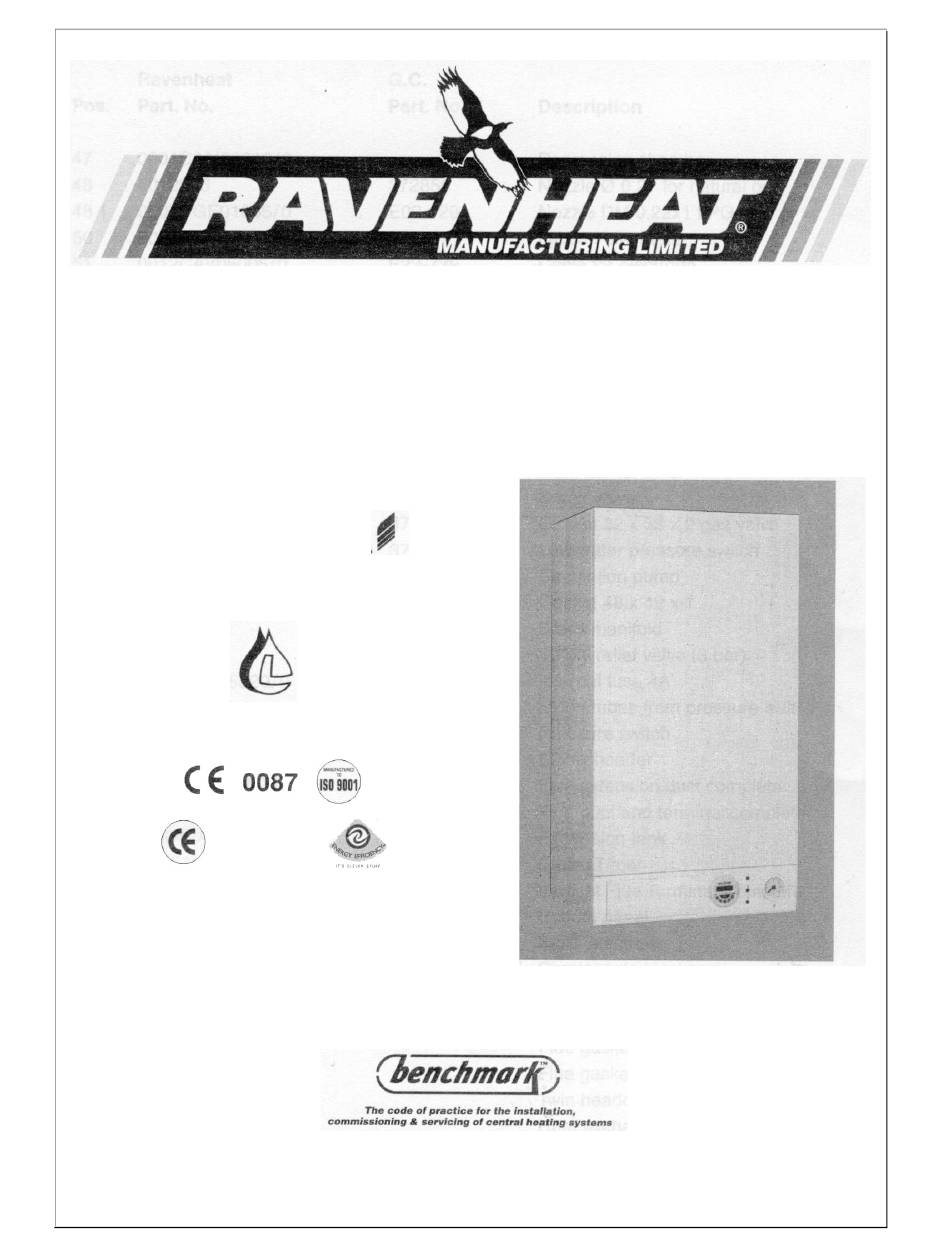

Ravenheat CSI 85 Installation And Servicing Instructions

Electronic ignition-automatic modulating boiler
Hide thumbs Also See for CSI 85:

Advertisement

Quick Links

ELECTRONIC IGNITION - AUTOMATIC MODULATING BOILER
CONDENSING FANNED COMBI
WITHOUT TIMER
NATURAL GAS (G 20) (I
LPG (G 30 - G 31) (I
British Gas
Tested, certified and
service listed
Listed by The United Kingdom Water
Fitting Byelaws Scheme
WITH TIMER
NATURAL GAS (G 20) (I
LPG (G 30 - G 31) (I
3+
INSTALLATION AND SERVICING INSTRUCTIONS
Technical and illustrative data are not binding and can be modified without prior notice.
The descriptions and illustrations in the present booklet are for guideline purposes only.
RAVENHEAT MANUFACTURING LTD., CHARTISTS WAY, MORLEY, LEEDS, LS27 9ET. -TELEPHONE (0113) 252 7007
CSI 85 - CSI 85T
0
) G.C. N
47 581 19
2H
0
) G.C. N
47 581 23
3+
0
) G.C. N
47 581 20
2H
0
) G.C. N
47 581 24
TO BE LEFT WITH USER
