To prevent SERIOUS INJURY or DEATH:
- DO NOT connect power until instructed.
- CLOSE the door before installation.

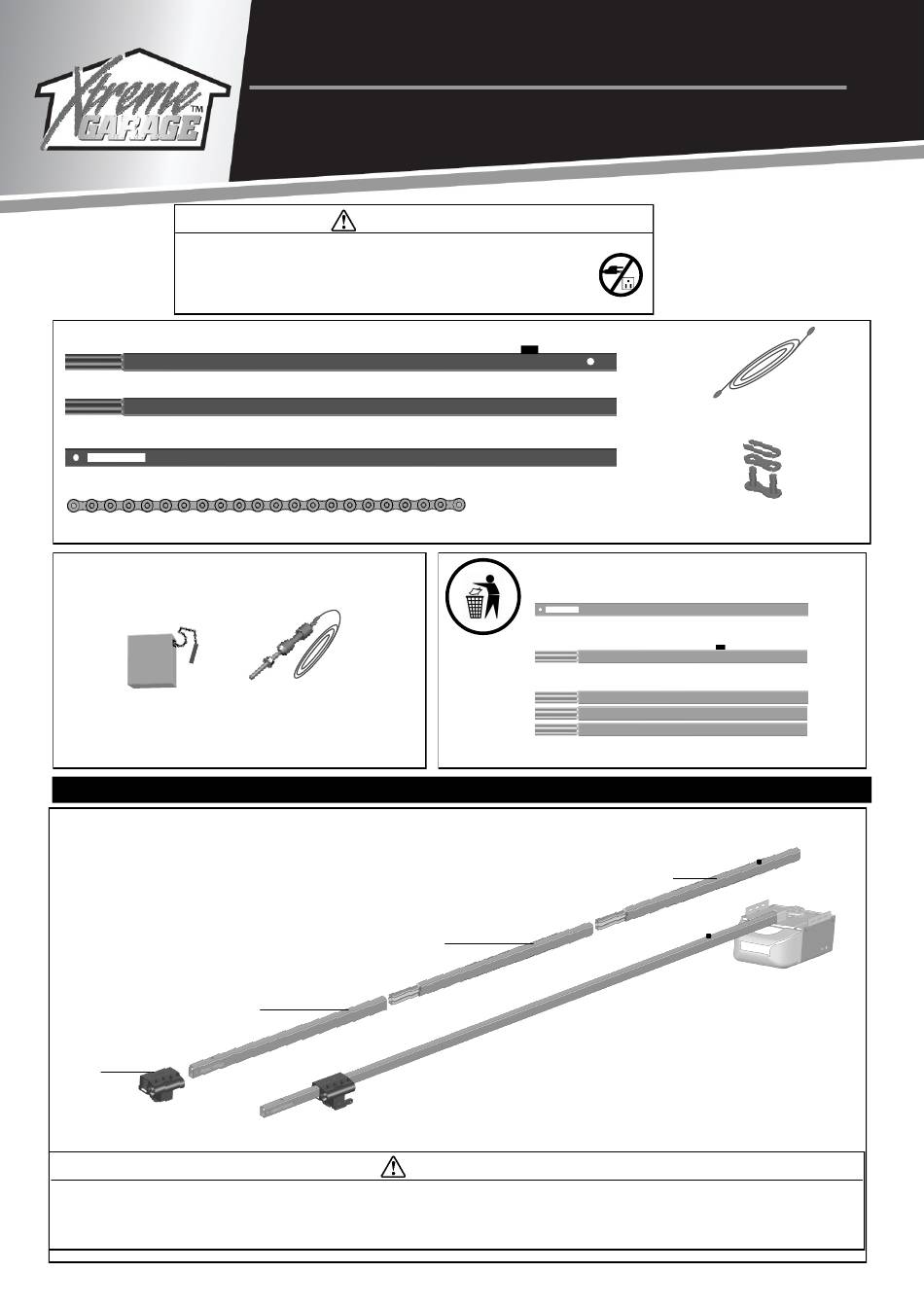

Kit Inventory
End Segment with Trolley Stop Bolt (53-1/5 inch)
Middle Segment (53-1/5 inch)
Header Segment (53-1/5 inch)
Extended Chain Segment (approx. 40-4/5 inch)
Components Required from Opener Inventory
Chain
STEP 1. To Assemble Rail with "Extended Middle Segment"
Please refer to "Rail and Trolley Assembly" in Owner's Manual.
Header Segment (53-1/5 inch)
Trolley
- Discard all FIVE of the original rail segment.
- ONLY 3 pieces of extended rail segment should be applied. NEVER connect extra rail segments.
- The opener only services door to max. of 10 FT. height. Door, with other size please call service before installation.
GARAGE DOOR OPENER EXTENSION KIT
MODEL: 425-1671
WARNING
Trolley Shaft
and Cable
Middle Segment (53-1/5 inch)
WARNING
x 1
x 1
x 1
x 1
Discard all 5 segments from original opener
Rail — Header Segment
Rail — End Segment with Trolley Stop Bolt
Rail — Middle Segment
End Segment with Trolley Stop Bolt
(53-1/5 inch)
1
www.gdohelp.com
1-877-GDO-4402
1-877-436-4402
2301 Traffic St NE
Minneapolis, MN 55413
x 1
Extended Cable
(approx. 144-1/2 inch)
x 2
Master Link Set
(Including 1x spare set)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 425-1671 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xtreme Garage 425-1671

  • Page 1 GARAGE DOOR OPENER EXTENSION KIT MODEL: 425-1671 www.gdohelp.com WARNING 1-877-GDO-4402 To prevent SERIOUS INJURY or DEATH: 1-877-436-4402 2301 Traffic St NE - DO NOT connect power until instructed. Minneapolis, MN 55413 - CLOSE the door before installation. Kit Inventory End Segment with Trolley Stop Bolt (53-1/5 inch) Extended Cable (approx.
  • Page 2 Step 2. Extending the Chain 1. To Disconnect “Chain to Cable Connector” from the Original Chain Original chain pack Disconnect “Chain Cable Connector” from the original chain by removing the master link. Keep all the hardware in this step. Master link Chain-to-Cable Connector 2.
