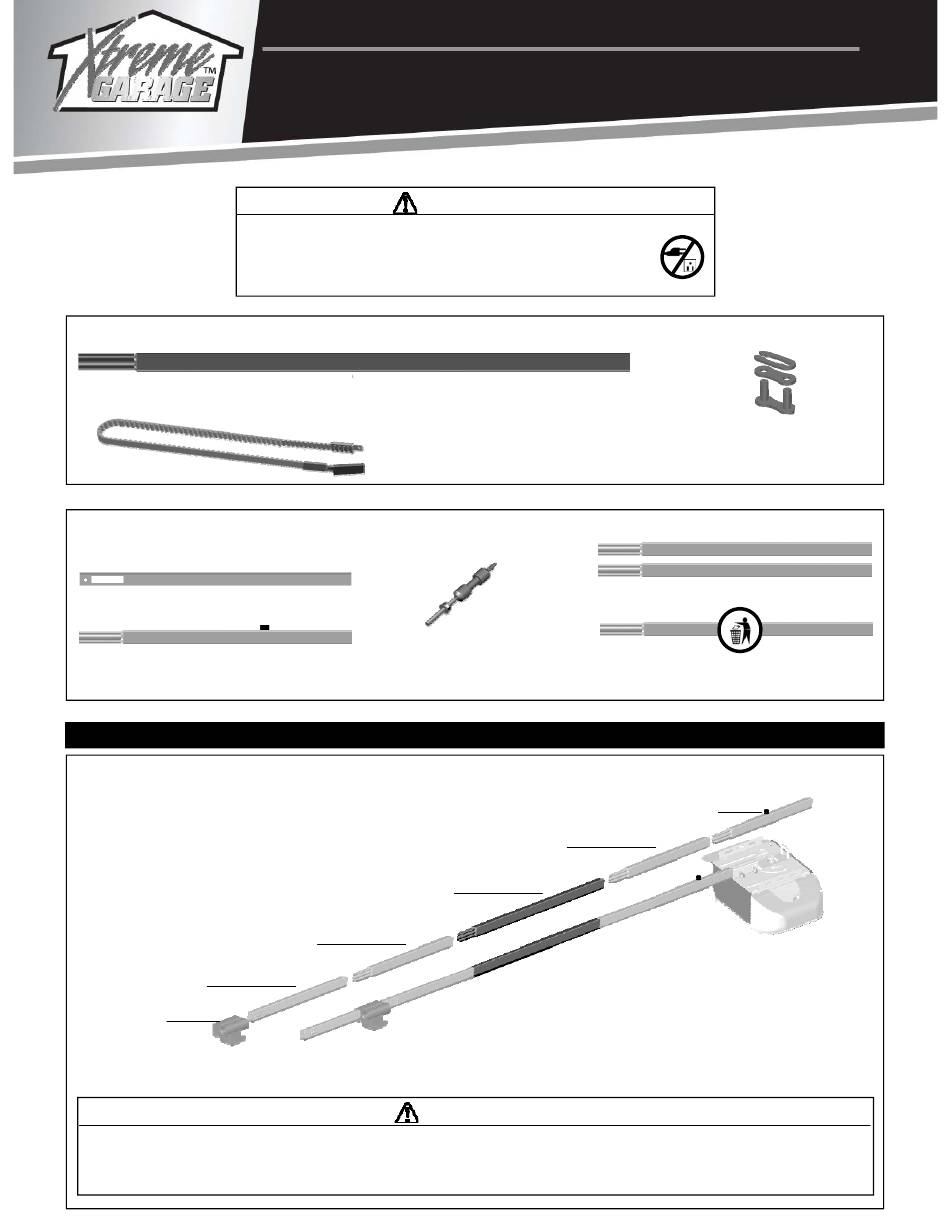

Xtreme Garage 425-1600 Owner's Manual

To prevent SERIOUS INJURY or DEATH:
- DO NOT connect power until instructed.
- CLOSE the door before installation.

Kit Inventory

Extended Rail (39-2/5 inch) — Extended Middle Segment

Components Required from Opener Inventory

Rail — Header Segment
Rail — End Segment with Trolley Stop Bolt
STEP 1. To Assemble Rail with "Extended Middle Segment"
Please refer to "Rail and Trolley Assembly" in Owner's Manual.
Extended Middle Segment (39-2/5 inch)
Original Middle Segment (25-3/5 inch)
Header Segment
Trolley
Replace ONE of the original rail Middle Segment with the "Extended Rail Segment" in the middle of rail assembly.
- Discard ONLY ONE of the original MIDDLE rail segment.
- ONLY 5 pieces of rail segment should be applied. NEVER connect extra rail segments.
- The opener only services door to max. of 8 FT. height. Door with other size please call service before installation.
GARAGE DOOR OPENER EXTENSION KIT
MODEL: 425-1600
WARNING
x 1
Extended Belt (approx. 249-4/5 inch)
Trolley Shaft
Original Middle Segment (25-3/5 inch)
WARNING
x 1
(Including 1x spare set)
Rail — Middle Segments x2
Discard 1 Middle Segment (25-3/5 inch)
End Segment with Trolley Stop Bolt
