Step 1: Review Or Sketch Site Plans - Orenco AdvanTex AX20-RT Installation Manual

Installation Manual:
1b
Residence
Control
panel
5 ft.
21 ft. 13 ft.
Outlet
riser
2 ft.
Wire
runs
Conduit
seals
6 ft.

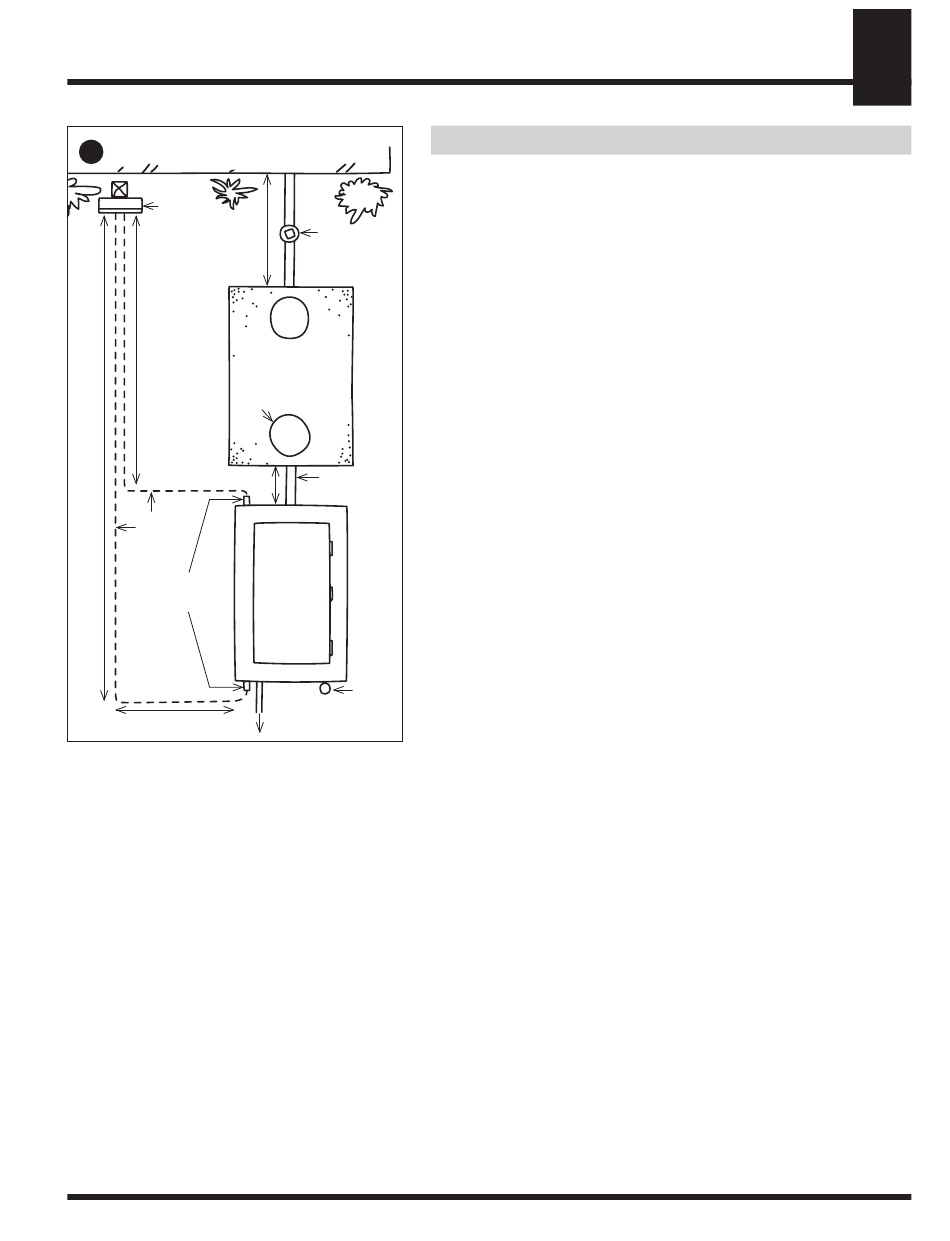

Sample sketch of a possible AX20-RT system layout
© 2010 Orenco Systems Inc.
®
AdvanTex

Step 1: Review or Sketch Site Plans

Before starting the installation, familiarize yourself with the site
plans and specifics of your installation. If you are installing the
AX20-RT unit more than 20 feet (6 meters) away from the tank,
Cleanout
contact your Dealer or Orenco for assistance.
1a) Detailed Site Plans Provided:
If you are installing the AX20-RT according to a set of detailed
plans, we recommend that you make sure that your plans
accurately reflect conditions at the site. If there are differences
Septic tank
between the physical site and the plans, we recommend you con-
tact the Designer before scheduling the installation.
1b) No Site Plans Provided:
If you are installing the AX20-RT without detailed site plans, or
with plans of limited detail, contact your local Dealer or Orenco
Septic tank
for design assistance.
outlet
AX20-RT
unit
Passive
vent
Discharge to drainfield
AX20-RT Treatment Units
®
• Determine and sketch the exact positions of the primary tank and
AX20-RT unit on the site. Account for current and likely future land-
scape features in your sketch.
• Be sure to position the tank and unit to allow for a minimum
foot (10 mm per meter or 1%) in the line from the outlet of the primary
tank to the inlet of the AX20-RT unit, if the primary tank uses a gravity
discharge.
• Determine and sketch the layout of your pipes, electrical conduits,
and other critical buried elements. Provide measurements and dis-
tances on the sketch as accurately as possible.
• Sketch the placement of the control panel. (See Panel Installation,
EIN-CP-GEN-1, for installation recommendations.)
