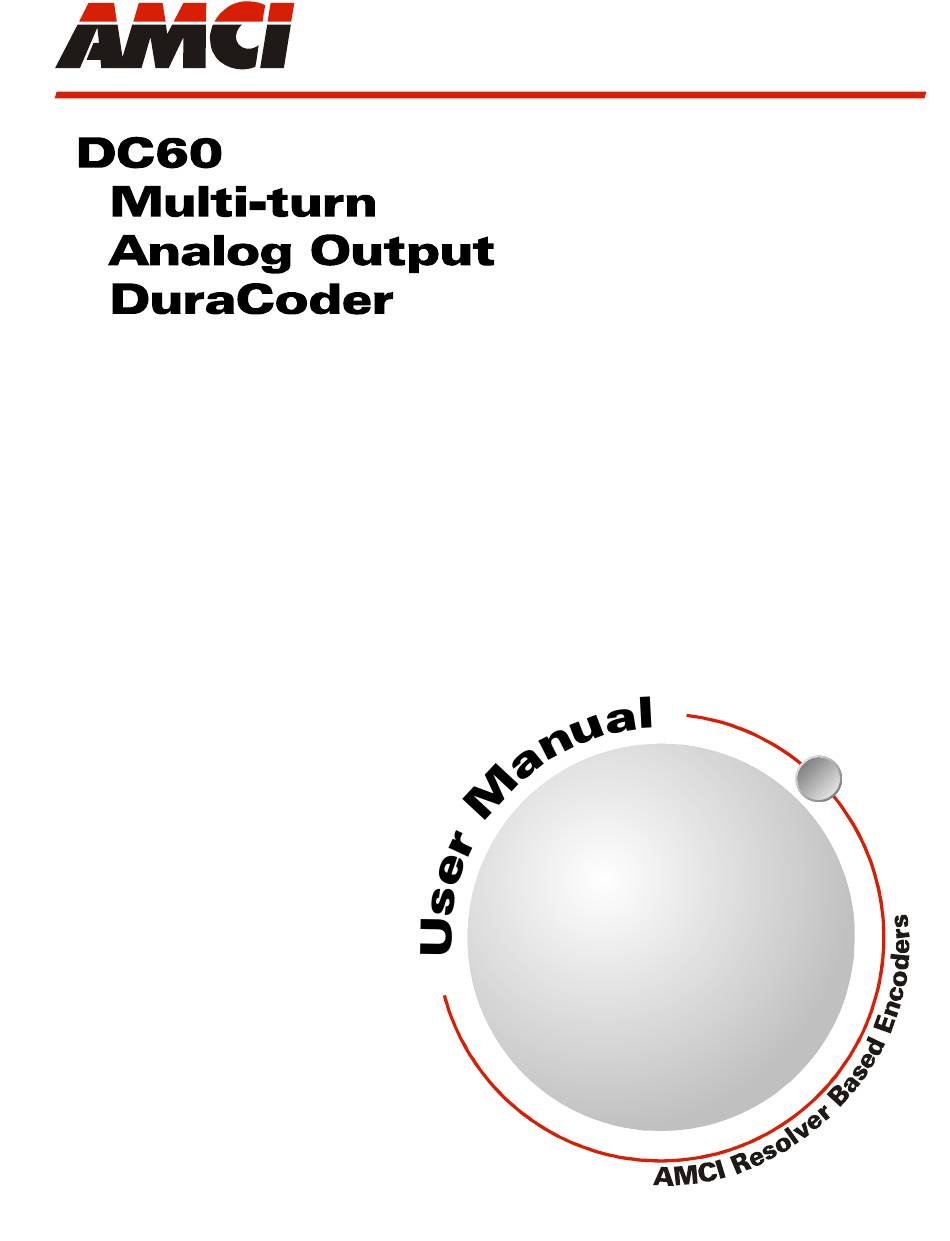

- Page 1 ADVANCED MICRO CONTROLS INC. Manual #: 940-0D141...
-
Page 2: General Information
Please direct all comments to: Technical Documenta- tion, AMCI, 20 Gear Drive, Terryville CT 06786, or fax us at (860) 584-1973. You can also e-mail your questions and comments to techsupport@amci.com... -
Page 3: Table Of Contents
Voltage Output DuraCoder .... 10 Sample Wiring Diagram ......18 Current Output DuraCoder .... 10 Electrical Specifications ......11 Mechanical Specifications ....... 11 Environmental Specifications ....11 20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786 Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com... - Page 4 Analog DC60 User Manual ABLE OF ONTENTS Notes ADVANCED MICRO CONTROLS INC.
-
Page 5: About This Manual
Applicable Units This manual is applicable to all DC60 multi-turn encoders with analog outputs. All of these units offer sixteen bit position resolution and can be ordered to encode from 1 to 1,024 turns. Outputs include multiple voltage and current options. -
Page 6: Revision Record
If you need to install and use the DC60, then the rest of the manual is written for you. To simplify installation and configuration, the rest of the manual is broken down into tasks. Using the DC60 requires you to complete two tasks, and the manual is broken down into sections that explain how to complete each one. -
Page 7: Overview
An industry standard M12, 8 pin, A-coded, male connector is used as the power and I/O connector. Both end (axial) and side (radial) connector placement options are available. The body material of the DC60 units is aluminum with a powder coat finish. Outline drawings of all of the packing options are available in the... -
Page 8: Connector Location And Pinout
M12 Connector An eight pin, A-coded, male M12 connector is used on these DC60 units. It is located on the back or side of the unit. This connector is the Turck eurofast FS 8 or equivalent. The pinout for the connector is shown below. -
Page 9: Mating Connector And Cordsets
IP67 rated when properly installed. Table 2 Available Cordsets Status LED Each DC60 has a Status LED on its rear cover. Figure 4 shows an end connect Rear View unit. The LED is in the same location on side connect units. This LED indi- cates whether or not output is driving a load (cable break detection) and gives a rough indication of the value of the analog output when it is driving a load. -
Page 10: Output Load Calculations
DC60 S Analog DC60 User Manual PECIFICATIONS Output Load Calculations Voltage Output DuraCoder A voltage output DuraCoder can drive an output load of 2 k or greater. If the output load is greater that 10 k, consider installing a 10 k resistor in parallel with the input terminals for greater noise immunity. -
Page 11: Electrical Specifications
20 g, 5 to 2000 Hz Mechanical Specifications Enclosure Rating Package Style IP67 60 mm housing with flange or servo mounting Approximate Weight 1.3 lbs. (0.59 kg) 20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786 Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com... - Page 12 DC60 S Analog DC60 User Manual PECIFICATIONS Notes ADVANCED MICRO CONTROLS INC.
-
Page 13: Installation Guidelines
1.1.3 Shaft Loading A flexible coupler should be used when connecting a DC60 to a drive shaft, because any mismatch in shaft alignment will result in large radial or axial loading on the shaft of the encoder. Limit shaft loading to the fol- lowing values. -
Page 14: Outline Drawings
REQUIRED TASK: P Analog DC60 User Manual HYSICAL NSTALLATION 1.3 Outline Drawings 1.3.1 Flange Mount, Aluminum Body, End Connect 0.85" max. (21.6) Additional clearance is needed for the removal of the mating connectors. (26.21) typ. Status LED location (31.75) (26.21) Exit Direction of typ. -
Page 15: Servo Mount, Aluminum Body, End Connect
Exit Direction of the removal of the mating connector. Right Angle Cables (49.3) max. Status LED location Figure 1.4 Servo Mount, Side Connector Outline Drawing 20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786 Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com... -
Page 16: Shaft Details
REQUIRED TASK: P Analog DC60 User Manual HYSICAL NSTALLATION 1.3 Outline Drawings (continued) 1.3.5 Shaft Details The figure below shows the pilot of a flange mount nose. Listed dimensions are identical for the servo mount option. (22.72) (22.72) (10.50) (20.50) Figure 1.5 Shaft Details... -
Page 17: Wire Power And I/O
2.1 Wiring Guidelines The DC60 requires a power supply of 10 to 30 Vdc, (12 to 24 Vdc nominally). Power requirement is 1.0 watts maximum, with 30 mA @ 24Vdc typical. This power draw does not include the current through the analog output. -
Page 18: Right Angle Cable Exit Direction
2.2.2 Right Angle Cable Exit Direction When designing a mounting solution for the DC60, be aware of the cable exit direction when using right angle mating connectors. Figure 2.1 above shows the direction of the cable when using AMCI, TRUCK, or Phoenix Contact cordsets. - Page 19 Analog DC60 User Manual OWER AND Notes 20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786 Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com...
- Page 20 ADVANCED MICRO CONTROLS INC. 20 GEAR DRIVE, TERRYVILLE, CT 06786 T: (860) 585-1254 F: (860) 584-1973 www.amci.com Waste Electrical and Electronic Equipment (WEEE) At the end of life, this equipment should be collected separately from any unsorted municipal waste.
