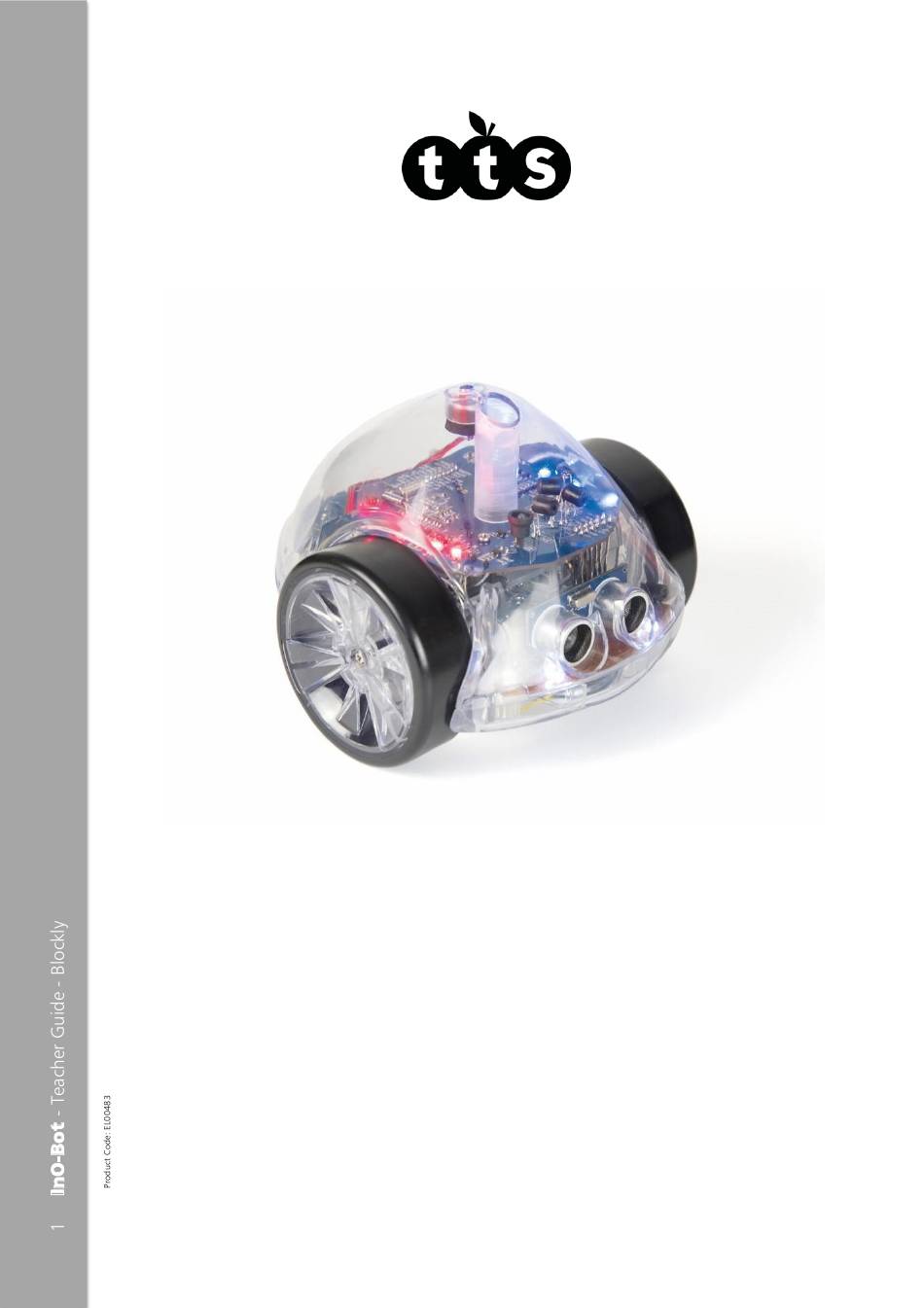

- Page 1 InO-Bot Teacher Guide - Blockly www.tts-shopping.com...
-
Page 2: Table Of Contents
InO-Bot InO-Bot - full of inputs and outputs Contents Previous Experiences ..................3 Progression ....................3 National Curriculum ..................3 Key Focus 1 – Getting started with InO-Bot ............4 Key Focus 2 – Getting into shape ............... 5 Key Focus 3 – Name that tune ................6 Key Focus 4 –... -
Page 3: Previous Experiences
Previous Experiences Prior to using InO-Bot, children should have some experience of using Scratch and ideally experience of other robots such as Bee-Bot and Blue-Bot. Progression The activities outlined below are in a suggested order of progression. There is no specific amount of time to be spent on each as this will vary from one situation to another. -
Page 4: Key Focus 1 - Getting Started With Ino-Bot
Key Focus 1 – Getting started with InO-Bot InO-Bot is full of inputs and outputs but it is best to start as simply as possible. Begin with outputs and get children to explore what can be done with the 8 RGB LED lights on top. -
Page 5: Key Focus 2 - Getting Into Shape
Extension Activity To extend this activity, ask children to create a second set of lights in a counter sequence. These could be lights on cross-roads or where a road narrows to one lane with lights at either end. This can be achieved using the two sides of InO-Bot, i.e. LEDs 1, 2 and 3 against 8, 7 and 6. -
Page 6: Key Focus 3 - Name That Tune
Key Focus 3 – Name that tune InO-Bot has 29 built-in sounds. Full details of these are listed in the user guide. Begin by creating a simple loop to enable stepping through the sounds. The example (right) makes use of a variable. -
Page 7: Key Focus 4 - Automatic Headlights
This is an example of using a variable to set the pauses throughout the tune. One change at the top of the program will change the pauses throughout. Note: where a longer pause is needed the tempo variable is doubled (* 2). It could also be shortened by halving it (/ 2). -
Page 8: Key Focus 5 - Avoid Obstacles
Key Focus 5 – Avoid obstacles On the front of InO-Bot there is an ultrasonic range finder. This is a sensor that reports values from 0 to 255. The values are reported in centimetres and indicate how far an object is from the front of the sensor. InO-Bot can be programmed to move around and when the range finder reports an obstacle at a given distance in front it can back up and turn. -
Page 9: Key Focus 6 - Responding To Sound
Key Focus 6 – Responding to sound Just behind the pen tube is a sound sensor (a microphone reporting values 0 - 100). InO-Bot can be programmed to respond to sound. It might move, stop moving or light up different lights. -
Page 10: Getting Started With The Ino-Bot App
Getting Started with the InO-Bot app The InO-Bot app should be downloaded from the Apple App Store or Google Play. InO-Bot is compatible with iPad 4 or newer (these devices have lightning connectors). InO-Bot is compatible with Android tablets with Bluetooth hardware running Android 5 or newer. Bluetooth Connection Note: InO-Bot does not needed pairing with an iPad or Android device. -
Page 11: Sensor Values
Sensor values Sensor Value Light 0 to 255 Sound 0 to 255 Distance 0 to 255 IR – Infrared 255 to 0 (lower values = more IR light) Example Programs There are a number of example programs. Tap on OPEN to access them. Program Description Automatic headlights... -
Page 12: Blocks
Blocks Logic Modifying ‘if’ Blocks 1. Drag an ‘if’ block onto the workspace. Tap on the cog to open the options panel. 2. Tap on the cog again to close the option panel. 3. The modified ‘if’ block will remain on the workspace. -
Page 13: Loops
Loops Repeat forever... -
Page 14: Math
Math... -
Page 15: Ino-Bot
InO-Bot Accepted Command Note Values 127cm is the maximum single movement. Values greater the 127 Motors will result in a stepped movement. 180° in the maximum single movement. Values greater than 180 Turn will result in a stepped movement. Front lights 0 to 10 RGB light # 0 –... -
Page 16: Variables
Variables... -
Page 17: Sounds
Xlyo Index Sound Index Sound Index Sound Technical Support Please visit www.tts-group.co.uk for the latest product information. Email feedback@tts-group.co.uk for technical support. TTS Group Ltd. Park Lane Business Park, Kirkby-in-Ashfield, Nottinghamshire, NG17 9GU, UK. Freephone: 0800 318686 Freefax: 0800 137525...
