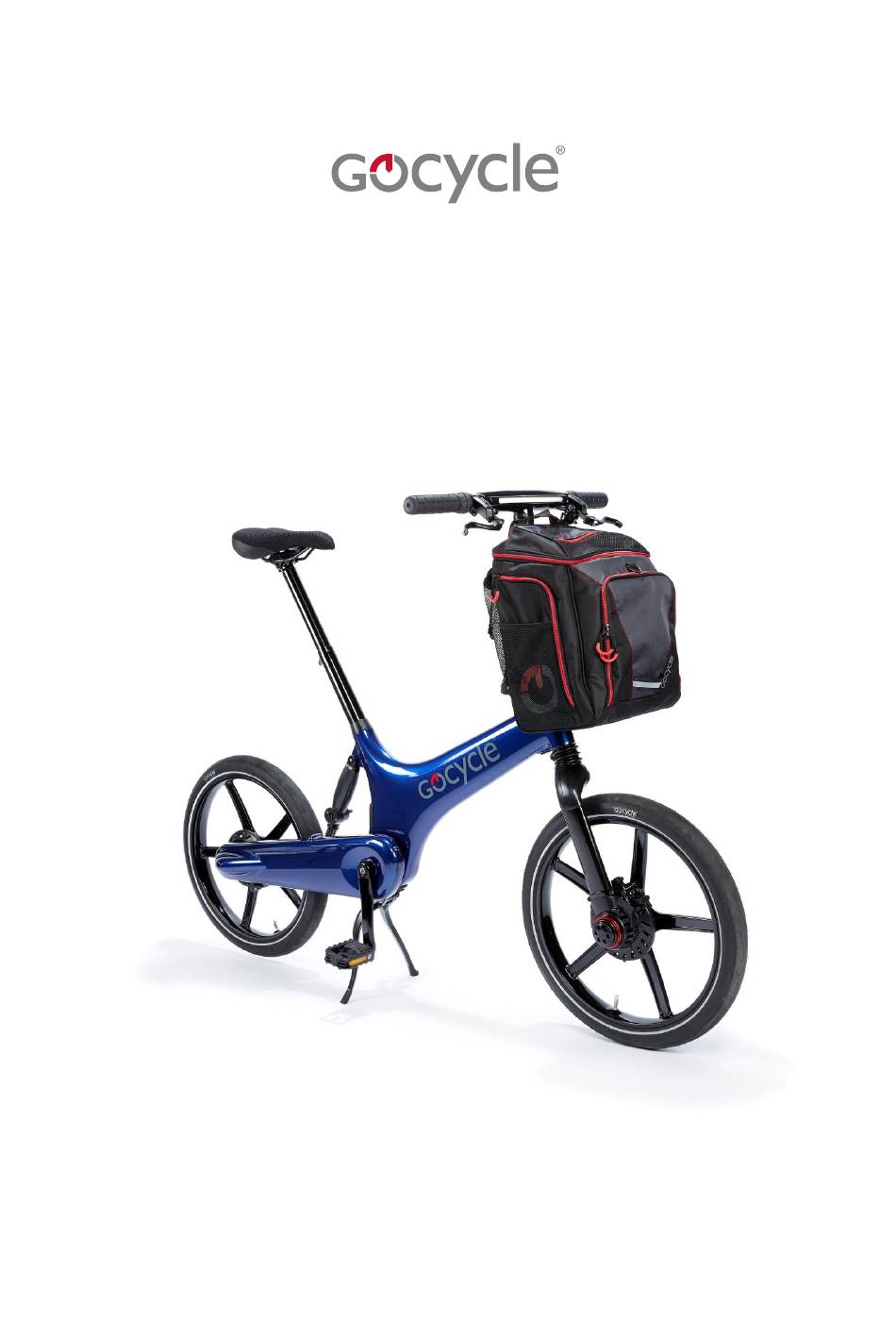

- Page 1 OCYCLE RONT ANNIER 3396) RODUCT Version 1.0 Assembly and adjustment of the Gocycle Front Pannier (For G2 and G3 Only)
-
Page 2: Table Of Contents
Assembly Guide: Gocycle Front Pannier ONTENTS Overview…………………………………………………………………………………………………………1 Parts List…………………………………………………………………………………………………………1 Tool List…………………………………………………………………………………………………………..1 1. What’s in your Pannier ..................2 2. Loading the Front pannier onto the Gocycle ............4 3. Adjusting the Latch Mechanism ................ 6 © Karbon Kinetics Limited. All Rights Reserved. -
Page 3: Overview
This document details assembly of the Gocycle Front Pannier. ARTS Note: You may To successfully complete the procedure you will require the following parts. be able to reuse parts on your Gocycle and as such only need to order parts specific to your repair: Part Code Part Description... -
Page 4: Whats In Your Pannier
Assembly Guide: Gocycle Front Pannier ’ S IN YOUR ANNIER 1.1. The Gocycle Front Pannier is compatible with the G2 and G3 Gocycle. 1.2. There is a shoulder strap in the top pocket which clips onto the two side buckles. - Page 5 Assembly Guide: Gocycle Front Pannier 1.4. For comfort while carrying the pannier rotate the mounting bracket as shown. 1.5. This shows the pannier hinge rotated for comfort whilst the shoulder strap is being used. 1.6. A Low Height Light Bracket (SKU 4219) is...
-
Page 6: Loading The Front Pannier Onto The Gocycle
Assembly Guide: Gocycle Front Pannier OUNTING THE OCYCLE RONT 2.1. Slide the Gocycle Front Pannier up towards the handlebar stem as shown ensuring that the mounting bracket is aligned and oriented with the stem height adjustment bolt. 2.2. Locate the latch (attached to the lanyard from the left pocket). - Page 7 Gocycle Front Pannier such as with extra padding to take up empty space. It is not safe to ride with a load that is free to move, shift, roll, or flop around within the Gocycle Front Pannier.
-
Page 8: Adjusting The Latch Mechanism
Assembly Guide: Gocycle Front Pannier DJUSTING THE ATCH MECHANISM 3.1. The latch should begin to feel tight to close from 45 degrees below horizontal generally at the point as Too tight shown. If the latch is “too tight” or “too loose”, it requires adjustment as described below. - Page 9 IMPORTANT NOTE: The above assembly steps must be carried out in the order described. Failure to do so may result in damage to the Gocycle. If you have any further queries or comments, please contact Gocycle Technical Support: techsupport@gocycle.com © Karbon Kinetics Limited. All Rights Reserved.
