BRACKET ASSEMBLY
Standard Angle 6-Groove
(Gray deflector)
IWOB00B3SA6-UP3
Standard Angle 9-Groove
(Black deflector)
IWOB00B3-UP3
Low Angle 9-Groove
(Blue deflector)
IWOB00B3LA9-UP3
Low Angle 6-Groove
(White deflector)
IWOB00B3LA-UP3
Nozzle Removal
PINCH
PINCH
18 iWUP3-IN 02
i-Wob
®
Recommended installation

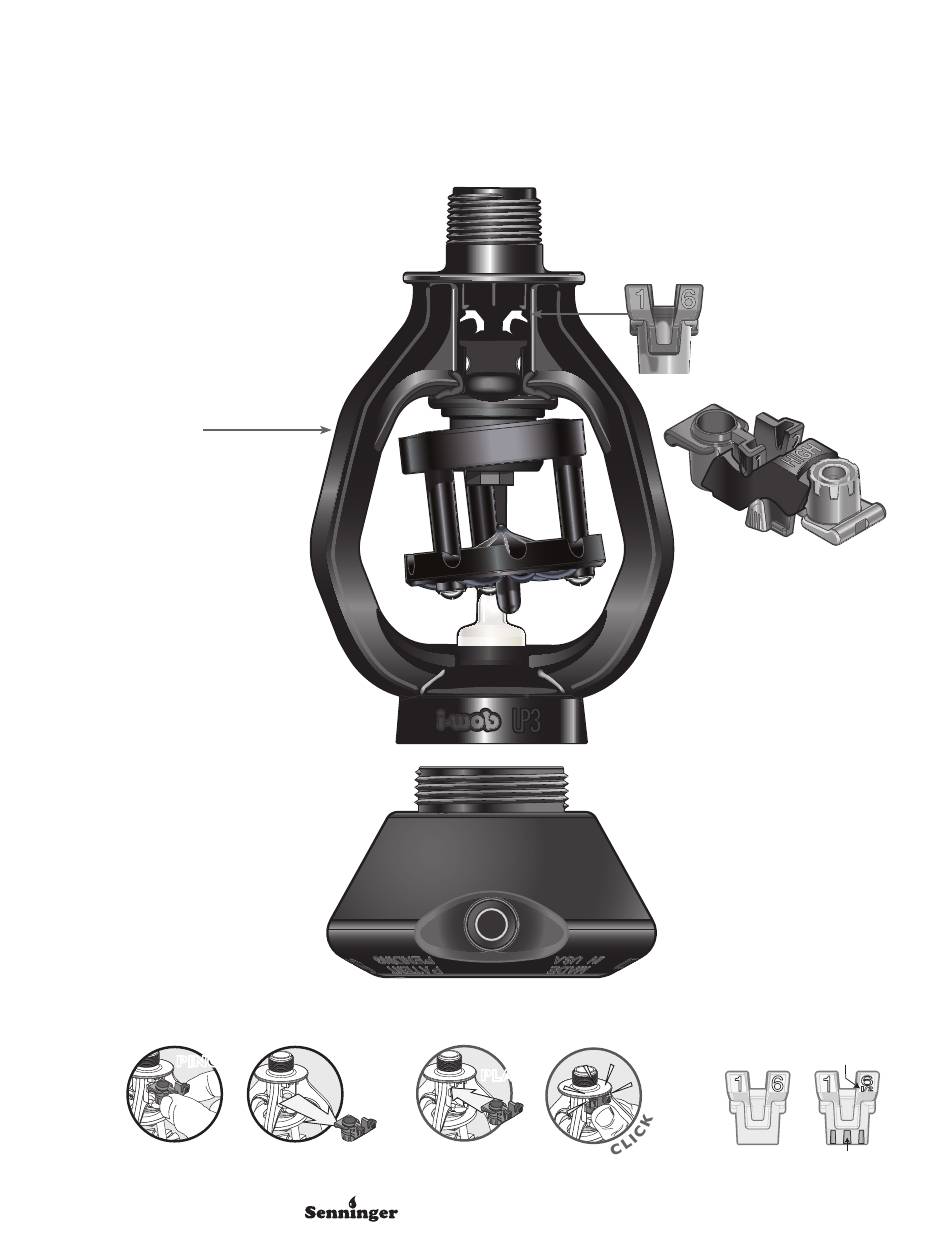

Component Assembly
Nozzle Installation
PLACE
PLACE
PULL
®
Call (407) 877-5655 • Web: www.senninger.com
Made in the U.S.A.
UP3
®
The Magnum Weight
(0.85 LB) MAGWGTBRB
(Includes i-Wob connector)
If using The Magnum
Weight, always be sure the
weight is tightly threaded
into the bottom of the
i-Wob. 140 inch-lbs torque
recommended.
UP3 Nozzles
#6 - #26
UP3NZ06 - UP3NZ26
(Depending on deflector)
UP3 Dual Nozzle Carrier
UP3NZCD
Nozzle Visibility
Whole sizes
Half sizes
Notches
MS-1025
