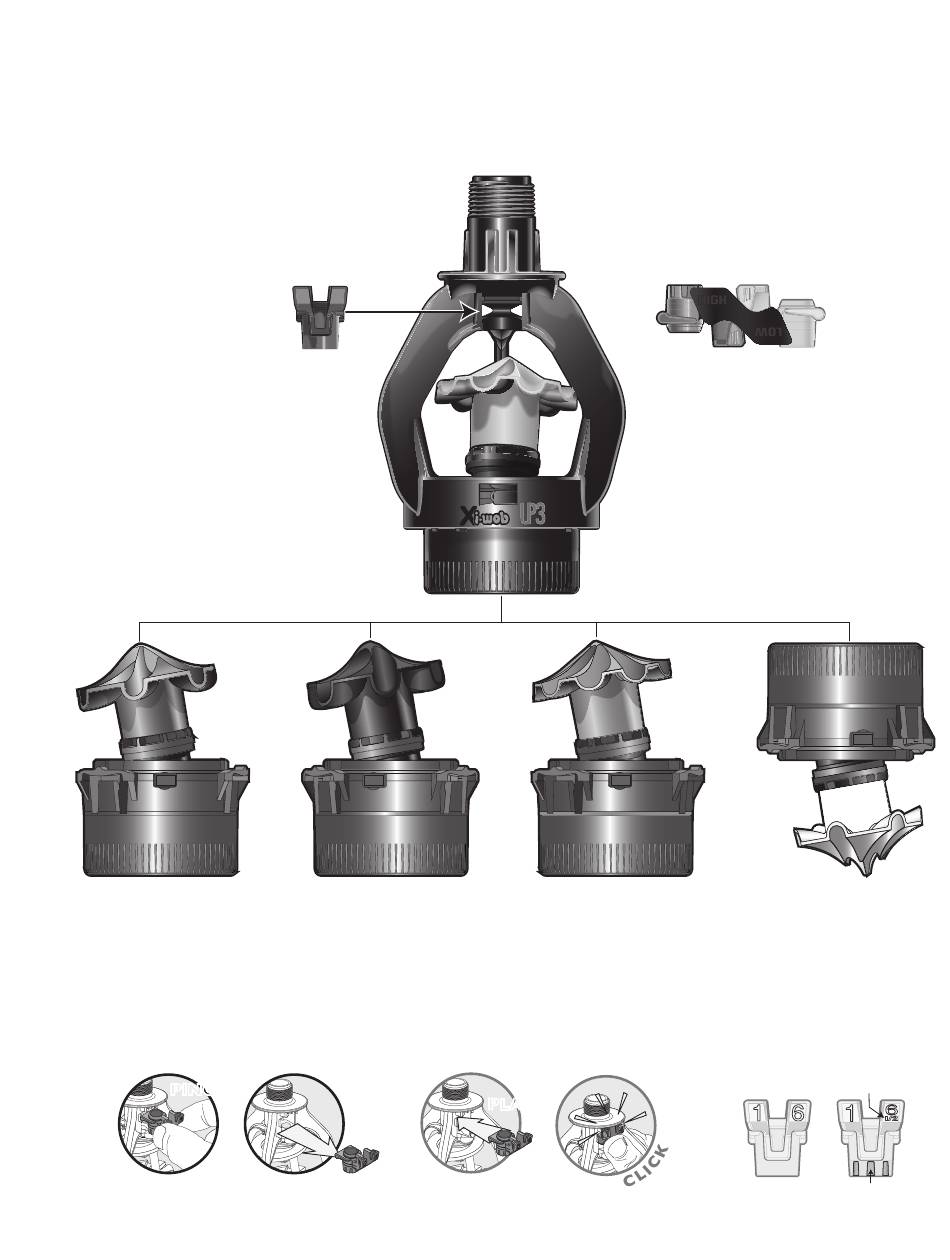

UP3NZ07 - UP3NZ24
ENGINE MODULES
610 (Blue deflector)
6-Groove 10-Degree
XIWEMASM610
Nozzle Removal
PINCH
PINCH
10 XiWUP3-IN 09
Xi-Wob
Recommended installation
Component Assembly
1
2
UP3 Nozzle
#7 - #24
615 (Black deflector)
6-Groove 15-Degree
XIWEMASM615
Always be sure that the engine module is secured tightly onto the bracket.
PULL
®
UP3
®
TM
Xi-Wob UP3 Bracket Assembly
XIW3BRASM-UP3
910 (Gray deflector)
9-Groove 10-Degree
XIWEMASM910
Nozzle Installation
PLACE
PLACE
Call (407) 877-5655 • Web: www.senninger.com
UP3 Dual Nozzle Carrier
UP3NZCD
605-TOP (White deflector)
6-Groove 5-Degree
Top of pipe
XIWEMASM605T
Nozzle Visibility
Whole sizes
Half sizes
Notches
MS-1026
Advertisement
Related Manuals for Senninger Xi-Wob UP3 610
Summary of Contents for Senninger Xi-Wob UP3 610
- Page 1 Always be sure that the engine module is secured tightly onto the bracket. Nozzle Visibility Nozzle Removal Nozzle Installation PINCH PINCH Whole sizes Half sizes PLACE PLACE PULL Notches ® 10 XiWUP3-IN 09 MS-1026 Call (407) 877-5655 • Web: www.senninger.com...
- Page 2 14.4 gpm [3271 L/hr] 14.4 gpm [3271 L/hr] 12.06 gpm [2739 L/hr] Maximum Spacing** at 6 ft [1.8 m] ground clearance 18 ft [5.49 m] 20 ft [6.10 m] 18 ft [5.49 m] 20 ft. [6.10 m] Operating Press. at the noz. Minimum 10 psi [0.69 bar] 10 psi [0.69 bar] 10 psi [0.69 bar] 10 psi [0.69 bar] Maximum 15 psi [1.03 bar] 15 psi [1.03 bar] 15 psi [1.03 bar] 10 psi [0.69 bar] * It is recommended that larger nozzle sizes be used only on soils and slopes that can handle higher application rates. ** For optimum performance Senninger recommends the use of maximum spacing for 1-2 spans only. Maintenance note: Keep Xi-Wobs above crop canopy when outlet spacing exceeds 10 ft [3 m]. This is especially important on high profile crops. Not warranted for rigid installation on offsets or booms longer than 10.5 ft. [3.2 m]. Longer offsets and booms require a minimum 2 ft. [0.61 m] reinforced flex hose. ® 10 XiWUP3-IN 09 MS-1026 Call (407) 877-5655 • Web: www.senninger.com...
